Fan hub 3595252

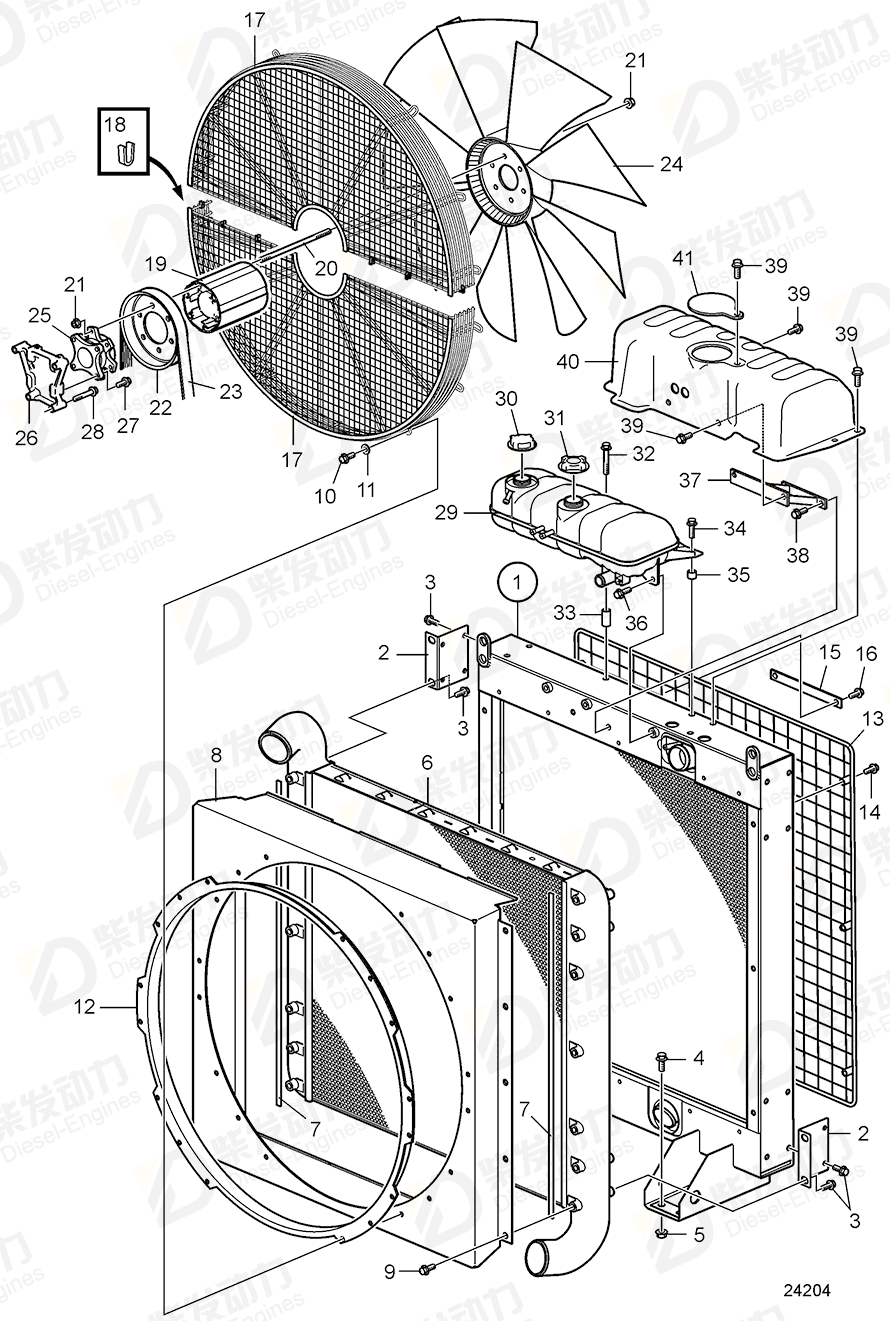

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 21146121 | 1 | |
| 2 | Bracket | 40005104 | 1 | |
| 4 | Flange screw | 946817 | 8 | |
| 5 | Flange nut | 990942 | 8 | |
| 6 | Charge air cooler | 40005102 | 1 | |
| 8 | Fan shroud | 40005100 | 1 | |
| 9 | Flange screw | 984733 | 16 | |
| 10 | Flange screw | 984734 | 12 | |
| 11 | Washer | 976944 | 12 | |
| 12 | Fan ring | 3827612 | 1 | |
| 13 | Radiator protector | 3827871 | 1 | |
| 14 | Flange screw | 994385 | 6 | L=45mm |
| 15 | Emblem | 846118 | 1 | |
| 16 | Six point socket scr | 969514 | 2 | |
| 17 | Fan guard | 21784986 | 2 | |
| 19 | Fan hub | 3595252 | 1 | |
| 20 | Stud | 969199 | 6 | |
| 21 | Flange nut | 990941 | 12 | |
| 22 | Pulley | 3807446 | 1 | Ratio 1:1,07 |
| 22 | Pulley | 3828043 | 1 | Ratio 1:0,84, Not for TAD1374VE, TAD1375VE |
| 22 | Pulley | 3829958 | 1 | Ratio 1:0,99 |
| 23 | Fan belt | 3594804 | 1 | For pulley 3828043 |
| 23 | Fan belt | 3595371 | 1 | For pulley 3807446 |
| 23 | Fan belt | 3886349 | 1 | For pulley 3829958 |
| 23 | V-ribbed belt | 20430611 | 1 | For pulley 3586365, For engines equipped with an air compressor. |
| 24 | Fan | 3594168 | 1 | |
| 25 | Fan hub | 3595252 | 1 | |
| 26 | Bracket | 3886350 | 1 | |
| 27 | Flange screw | 984754 | 4 | |
| 28 | Flange screw | 984757 | 4 | |
| 29 | Expansion tank | 1674916 | 1 | |
| 30 | Pressure cap | 1674083 | 1 | |
| 31 | Filler cap | 1674922 | 1 | |
| 32 | Flange screw | 975103 | 1 | |
| 33 | Spacer sleeve | 3830771 | 1 | |
| 34 | Flange screw | 990862 | 1 | |
| 35 | Spacer sleeve | 843028 | 1 | |
| 36 | Flange screw | 984751 | 3 | |
| 37 | Bracket | 3831494 | 1 | |
| 38 | Flange screw | 984751 | 2 | |
| 39 | Flange screw | 984733 | 9 | |
| 40 | Protecting casing | 3839262 | 1 | |
| 41 | Cover | 3830539 | 1 |
| Item | Part Name | Part No. |
| 19 | Fan hub 3595252 | 3595252 |
| Details | |
| Engine model | TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1360VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE |
| Application | Radiator and Fan. Pusher |
