Gasket 421324

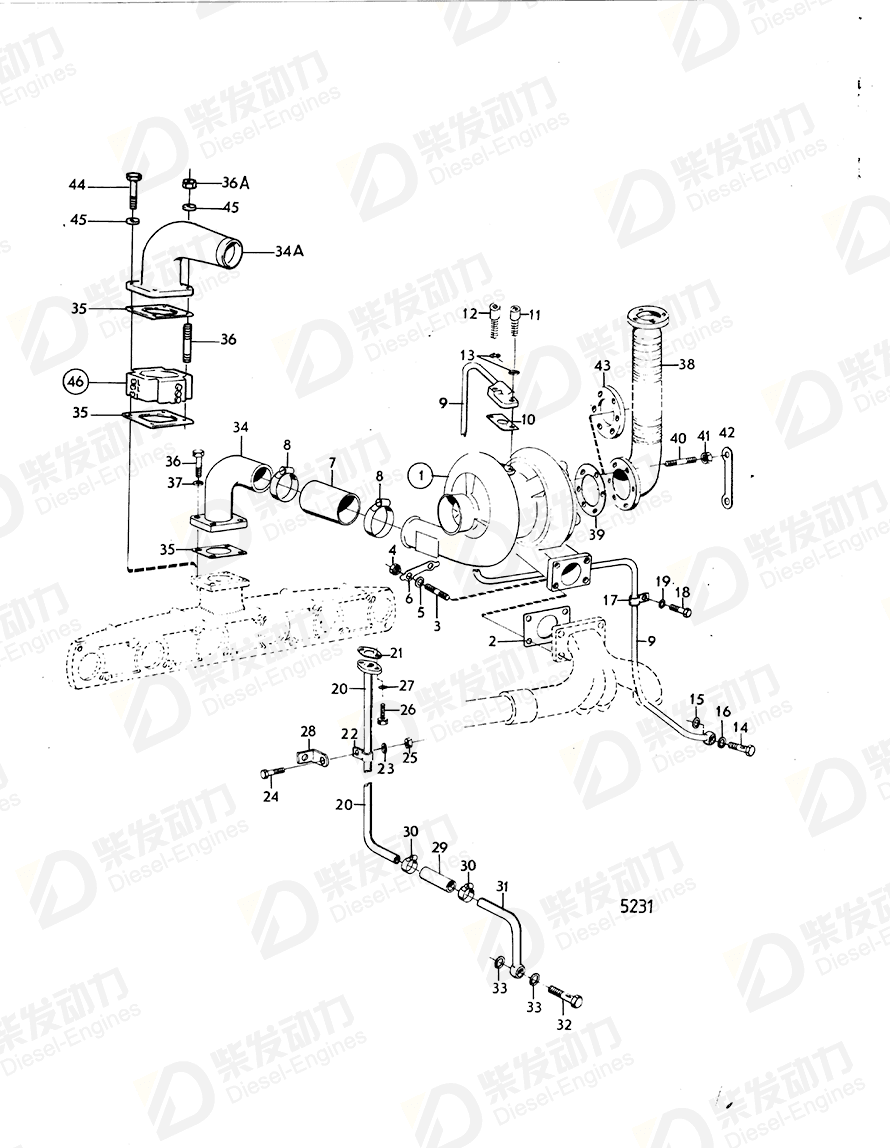

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbo | 466181 | 1 | MO96588/XXXXX- |
| 1 | Turbo | 466189 | 1 | MO-96587/XXXXX |
| 2 | Gasket | 421324 | 1 | |
| 3 | Stud | 953259 | 4 | |
| 4 | Nut | 943152 | 4 | |
| 5 | Washer | 940097 | 4 | |
| 6 | Tab washer | 942167 | 2 | |
| 7 | Rubber hose | 952979 | 1 | L=55mm |
| 8 | Hose clamp | 943479 | 2 | |
| 9 | Oil feed pipe | 466221 | 1 | |
| 10 | Gasket | 420475 | 1 | |
| 11 | Hex. socket screw | 956570 | 1 | |
| 12 | Hex. socket screw | 956571 | 1 | SEE GROUP 2B |
| 13 | Spring washer | 941907 | 2 | |
| 14 | Hollow screw | 954394 | 1 | |
| 15 | Gasket | 957178 | 1 | |
| 16 | Gasket | 957181 | 1 | |
| 17 | Clamp | 62112 | 1 | |
| 18 | Hexagon screw | 940133 | 1 | |
| 19 | Washer | 940097 | 1 | |
| 20 | Oil return pipe | 466241 | 1 | |
| 21 | Gasket | 420423 | 1 | |
| 22 | Clamp | 190159 | 1 | |
| 23 | Washer | 960140 | 2 | 3-6mm², yellow |
| 24 | Hexagon screw | 940100 | 1 | |
| 25 | Hexagon nut | 955833 | 1 | |
| 26 | Hexagon screw | 940115 | 2 | |
| 27 | Spring washer | 942336 | 2 | |
| 28 | Bracket | 364386 | 1 | |
| 29 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 30 | Hose clamp | 994559 | 2 | |
| 31 | Oil return pipe | 466236 | 1 | |
| 32 | Hollow screw | 191929 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 33 | Gasket | 957185 | 2 | |
| 34 | Connecting pipe | 466180 | 1 | |
| 35 | Gasket | 466271 | 1 | |
| 36 | Hexagon screw | 940159 | 4 | |
| 36 | Stud | 953481 | 1 | For engine with starting element |
| 37 | Spring washer | 941907 | 4 | |
| 38 | Exhaust hose, exhaust hose | 843612 | 1 | (823692) |
| 39 | Gasket | 420429 | 1 | |
| 40 | Stud | 953237 | 6 | |
| 41 | Hexagon nut | 940122 | 6 | |
| 42 | Tab washer | 943705 | 3 | |
| 43 | Flange | 837453 | 1 | |
| 44 | Hexagon screw | 955531 | 4 | Late type |
| 45 | Washer | 955894 | 4 | |
| 46 | Starter element, starter element | 846848 | 1 | For engine with starting element., (843207) |
| 34A | Connecting pipe | 842001 | 1 | For engine with starting element |
| 36A | Hexagon nut | 955826 | 1 |
| Item | Part Name | Part No. |
| 2 | Gasket 421324 | 421324 |
| Details | |
| Engine model | TD100CHC TD100CRC TD30A TD31ACE TD40A TD70B TD70CHC, TD70CRC |
| Application | Induction and Exhaust Manifold: A Induction and Exhaust Manifold: B Inlet and Exhaust Manifold Repair Kit: B Repair Kits: A Repair Kits: B Turbo Turbo and Air Filter with Installation Components Turbo and Installation Components Turbo and Installation Components, MO-47460/XXXXX Turbo and Installation Components, MO47461/XXXXX- Turbo: 466181 Turbo: 466189 Turbocharger Turbocharger: 847857 Turbocharger: 847860 Turbocharger: 848556 |
| Specification | |
| Descriptions | (411571) |
