Alternator 3173821

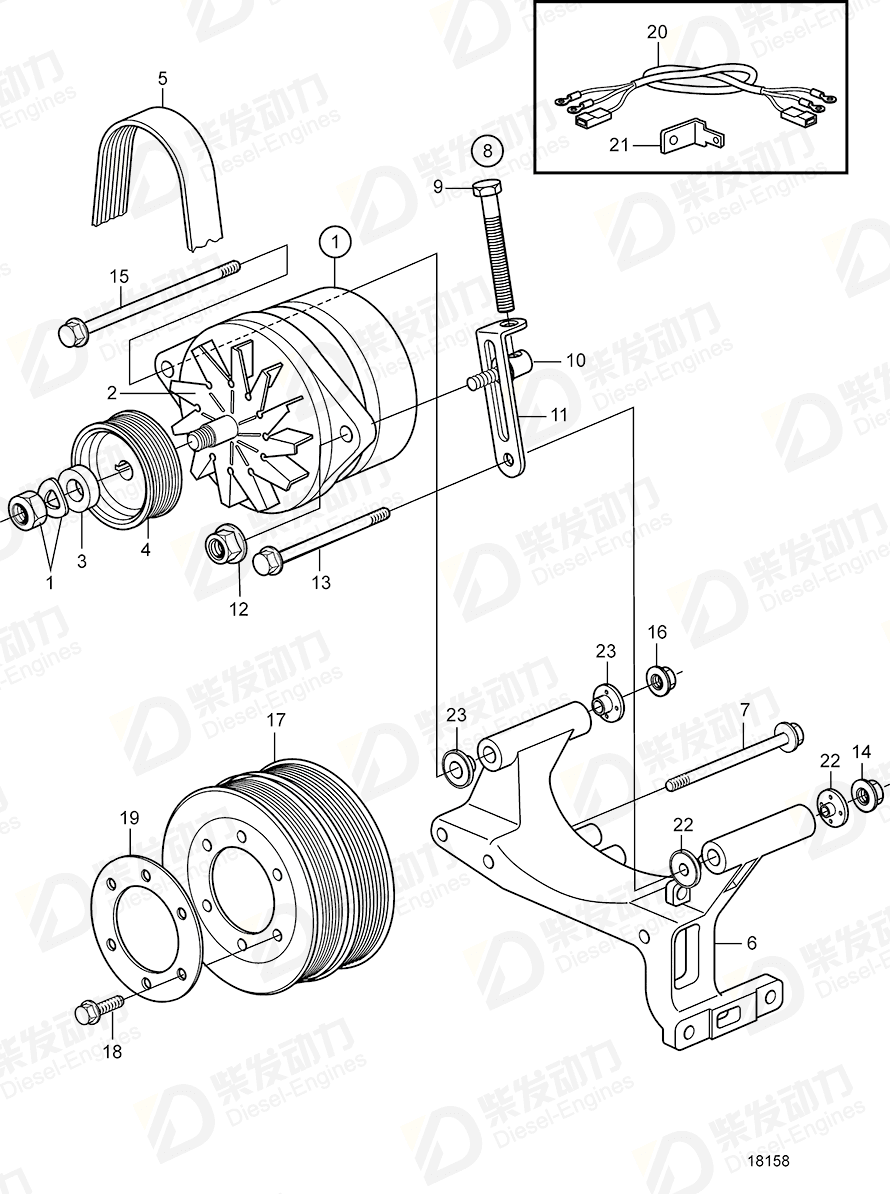

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 3173821 | 1 | 28V 60A |
| 1 | Alternator, exch | 3803572 | 1 | 28V 60A |
| 2 | Fan | 3090711 | 1 | |
| 3 | Spacer sleeve | 865074 | 1 | |
| 4 | Pulley | 1636242 | 1 | |
| 5 | V-ribbed belt | 978207 | 1 | L=800mm |
| 6 | Bracket | 3808013 | 1 | |
| 7 | Flange screw | 947790 | 3 | |
| 8 | Tensioner | 1676586 | 1 | |
| 9 | Hexagon screw | 977820 | 1 | |
| 10 | Tensioning screw | 1675830 | 1 | |
| 12 | Flange lock nut | 971098 | 1 | |
| 13 | Flange screw | 965190 | 1 | |
| 14 | Flange lock nut | 971098 | 1 | |
| 15 | Flange screw | 978447 | 1 | |
| 16 | Flange lock nut | 971099 | 1 | |
| 17 | Pulley | 3841069 | 1 | (3827415) |
| 18 | Flange screw | 945444 | 6 | |
| 19 | Washer | 3979500 | 1 | |
| 21 | 941881 | 1 | ||
| 22 | Insulating bushing | 3589388 | 2 | |
| 23 | Insulating bushing | 3589369 | 2 |
| Item | Part Name | Part No. |
| 1 | Alternator 3173821 | 3173821 |
| Details | |
| Engine model | TAD1240GE, TAD1241GE, TAD1242GE TWD1240VE, TAD1241VE, TAD1242VE |
| Application | Alternator Alternator 28V 60A, Components Alternator, Single Mounted |
| Specification | |
| Descriptions | 28V 60A Std 28V 60A E.U=3803572 |
