Ball bearing 244328

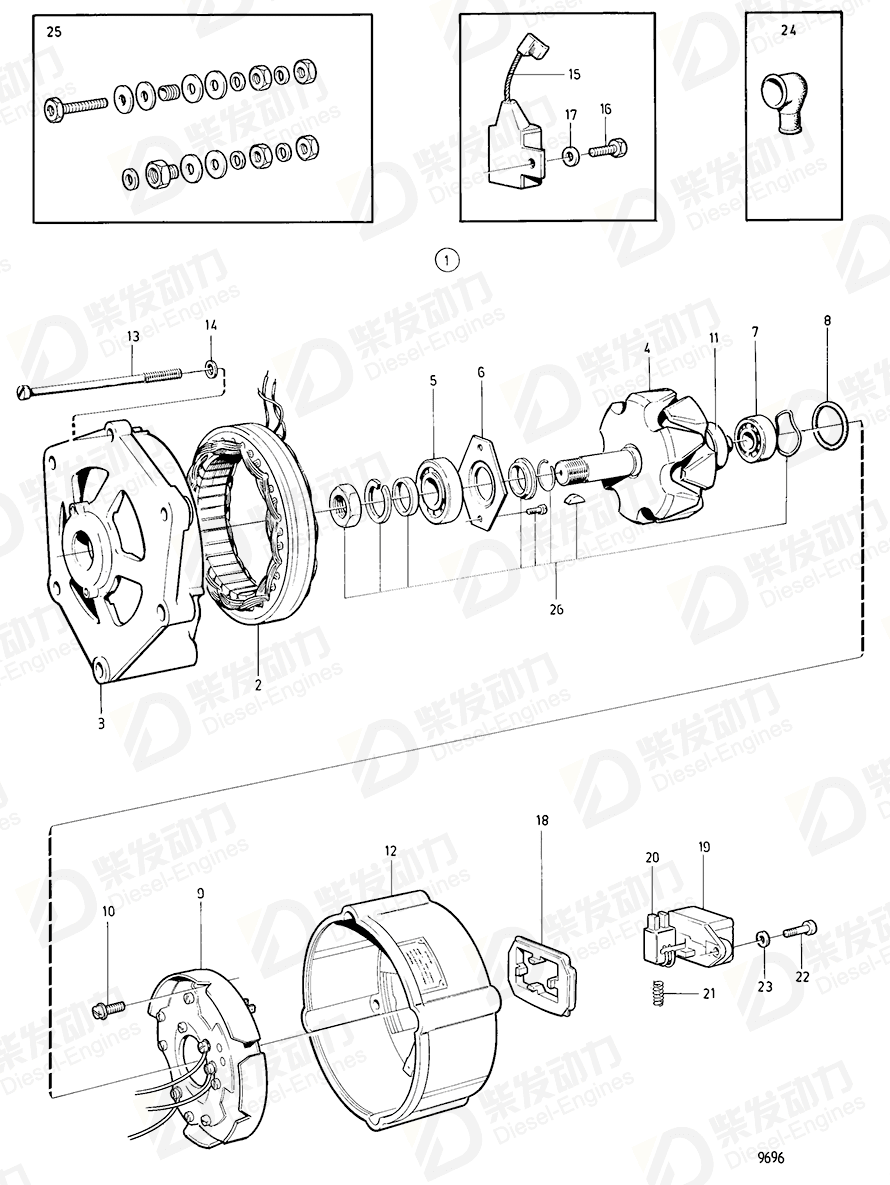

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1578140 | 1 | 28V 45A |
| 2 | Stator | 244345 | 1 | |
| 3 | Bearing housing | 244339 | 1 | |
| 4 | Rotor | 244340 | 1 | |
| 5 | Ball bearing | 183486 | 1 | |
| 6 | Bearing support | 243287 | 1 | |
| 7 | Ball bearing | 244328 | 1 | |
| 8 | O-ring | 244331 | 1 | |
| 9 | Rectifier | 244343 | 1 | |
| 10 | Screw | 244336 | 3 | |
| 11 | Slip ring | 844839 | 1 | |
| 12 | Housing | 244342 | 1 | |
| 13 | Screw | 3523052 | 4 | |
| 14 | Washer | 25261 | 4 | |
| 15 | Capacitor | 244347 | 1 | (244357) |
| 16 | Screw | 241138 | 1 | |
| 17 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 18 | Gasket | 244338 | 1 | |
| 19 | Charge regulator | 1625880 | 1 | (1606935) |
| 20 | Brush set | 244490 | 1 | |
| 21 | Spring | 1323485 | 2 | |
| 22 | Screw | 243098 | 2 | |
| 23 | Spring washer | 941904 | 2 | |
| 24 | Rubber collar | 76614 | 2 | D42A PP spec. 16053, 867638. |
| 25 | Repair kit | 273573 | 1 | |
| 26 | Repair kit | 273503 | 1 |
| Item | Part Name | Part No. |
| 7 | Ball bearing 244328 | 244328 |
| Details | |
| Engine model | TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TD100G-87 TD100G-87, TD1030ME, TWD1030ME TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121G-87, TWD1230VE, TWD1231VE TD164KAE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P |
| Application | Alternator Alternator 14V 90A / 28V 45A, Components: 1578140 Alternator 14V 90A / 28V 45A, Components: 1578938 Alternator 28V 45A, Components Alternator 28V 55A, Components Alternator 28V 80A, Components Alternator, 14V 90A, Components Alternator: 1578140 Alternator: 1578938 Alternator: 1607362 Alternator: 6779261 |
Related Products
Tags: Ball bearing, Volvo Penta, 244328
