Bracket 847232

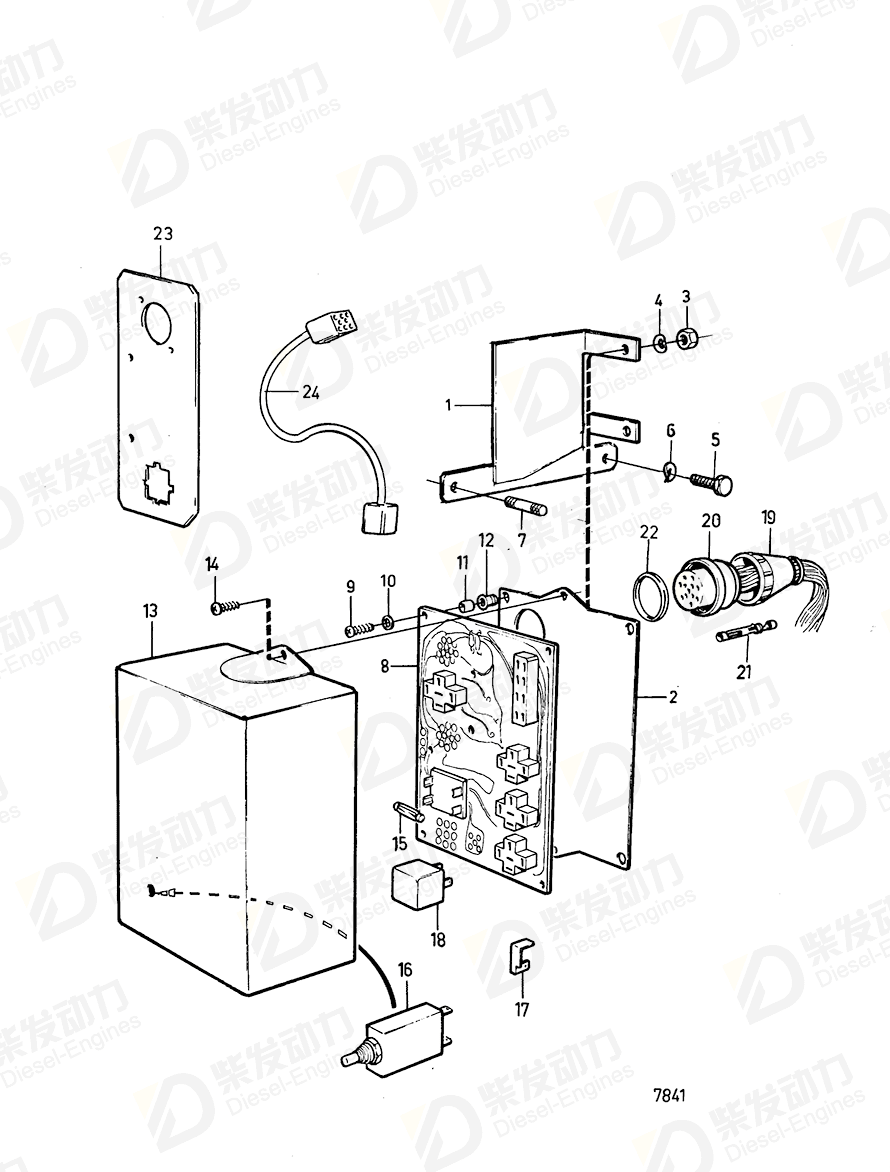

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 846723 | 1 | ALT |
| 1 | Bracket | 847232 | 1 | STD |
| 2 | Mounting plate | 846914 | 1 | |
| 3 | Lock nut | 963105 | 2 | |
| 4 | Spring washer | 941906 | 2 | |
| 5 | Hexagon screw | 955546 | 1 | |
| 6 | Spring washer | 940280 | 1 | |
| 8 | Circuit board | 847447 | 1 | ELECTRICAL BOX CONNECTED FOR ALARM SYSTEM |
| 8 | Circuit board | 849192 | 1 | |
| 9 | Cross recessed screw | 956061 | 4 | D70B spec. 867055, 867060. TD70B spec. 867066. |
| 10 | Washer | 962653 | 4 | |
| 11 | Hose | 192034 | 1 | L=10mm |
| 13 | Protecting casing | 846986 | 1 | |
| 14 | Cross recessed screw | 956057 | 2 | |
| 15 | Fuse | 942545 | 5 | 4 pcs as reserve., 5A |
| 16 | Fuse | 948843 | 1 | 8A |
| 17 | Cable terminal | 847112 | 1 | Stop solenoid is connected while engine is stopping., Power-Pack |
| 18 | Relay | 1504951 | 4 | For instrument panel 841096 and 841097., 24Vlate production. |
| 18 | Timer relay | 1593966 | 1 | 24V |
| 19 | Unloading cable | 846613 | 1 | |
| 20 | Housing | 846612 | 1 | 16-pole |
| 21 | Sleeve, sleeve | 847041 | 1 | For 846612 |
| 22 | Sealing ring | 846615 | 1 | |
| 23 | Mounting plate | 847253 | 1 | Is used when the electrical box is removed |
| 24 | Cable kit | 847256 | 1 | CABLE UNIT TO BE USED WHEN VOLVOPENTA ELECTRICAL BOX IS NOT USED |
| Item | Part Name | Part No. |
| 1 | Bracket 847232 | 847232 |
| Details | |
| Engine model | TD60D-83 TID60D TID60DG |
| Application | ELECTRICAL BOX AND INSTALLATION COMPONENTS ELECTRICAL BOX AND INSTALLATION COMPONENTS: A ELECTRICAL BOX AND INSTALLATION COMPONENTS: B |
| Specification | |
| Descriptions | STD |
