Gasket 466436

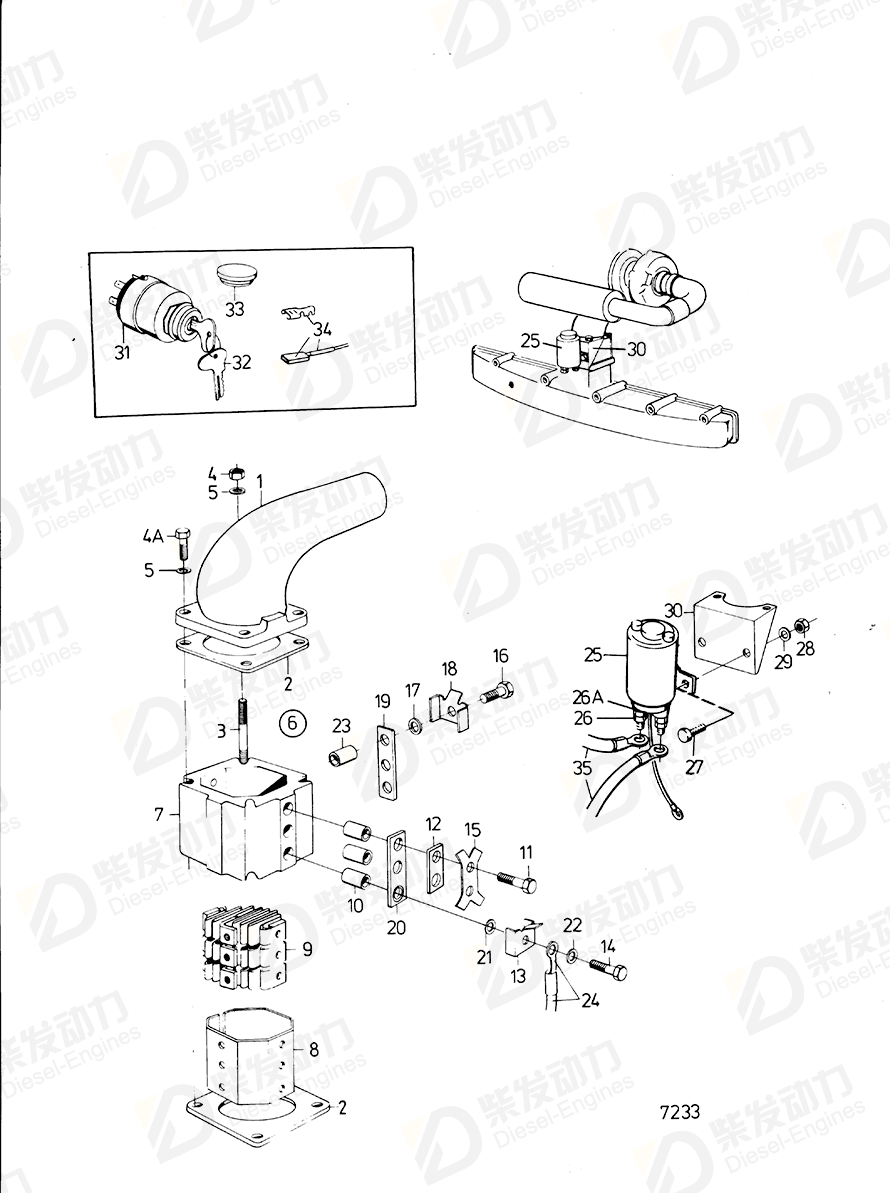

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connecting pipe | 842001 | 1 | For engine with starting element |
| 2 | Gasket | 466436 | 2 | |
| 3 | Stud | 953481 | 4 | For engine with starting element |
| 4 | Hexagon nut | 955826 | 4 | |
| 5 | Spring washer | 941907 | 2 | |
| 5 | Washer | 955894 | 2 | |
| 6 | Starter element, cold starter element | 843207 | 1 | Repl by 846848 |
| 7 | Intermediate section | 1507064 | 1 | |
| 8 | Insulating sleeve | 1507065 | 1 | |
| 9 | Belt element | 1507066 | 3 | |
| 10 | Bushing | 842840 | 6 | |
| 11 | Screw | 844098 | 2 | |
| 12 | Current bar | 843226 | 2 | |
| 13 | Striker plate | 843205 | 2 | |
| 14 | Screw | 844098 | 4 | |
| 15 | Tab washer | 946731 | 2 | |
| 16 | Hexagon screw | 955248 | 3 | |
| 17 | Washer | 191156 | 3 | |
| 18 | Striker plate | 843204 | 3 | |
| 19 | Insulating washer | 843202 | 1 | |
| 20 | Insulating washer | 843203 | 2 | |
| 21 | Washer | 961169 | 2 | |
| 22 | Washer | 942239 | 2 | |
| 23 | Bushing | 843201 | 3 | |
| 25 | Relay | 1577376 | 1 | 24V 150A |
| 26 | Hexagon nut | 17624 | 2 | |
| 27 | Hexagon screw | 955244 | 2 | |
| 28 | Lock nut | 963104 | 2 | |
| 29 | Washer | 940090 | 2 | |
| 30 | Attaching plate | 843400 | 1 | |
| 31 | Starter switch | 241315 | 1 | |
| 32 | Key | 241383 | 2 | Åkerman spec. 867446. |
| 33 | Plug | 821386 | 1 | |
| 35 | Cable block | 843347 | 1 | 40cables and terminals将已选物品添加至购物车 |
| 4A | Hexagon screw | 955531 | 4 | Late type |
| 26A | Washer | 955894 | 2 |
| Item | Part Name | Part No. |
| 2 | Gasket 466436 | 466436 |
| Details | |
| Engine model | D70B TD60A TD60B TD60D TD60D-83 TD70B TD70G TD70G-83 TID70G |
| Application | Connecting Pipe and Starting Element with Installation Comp. INDUCTION MANIFOLD WITH INSTALLATION COMPONENTS: A INDUCTION MANIFOLD WITH INSTALLATION COMPONENTS: B Induction-and Exhaust Manifold: A Induction-and Exhaust Manifold: B Repair Kit Repair Kit: A Repair Kit: B Starting Element with Installation Components Turbo and Installation Components, Low Mounted TURBO AND INSTALLATION COMPONENTS, LOW MOUNTED: A TURBO AND INSTALLATION COMPONENTS, LOW MOUNTED: B Turbo and Installation Components: A Turbo and Installation Components: B |
| Specification | |
| Descriptions | (466271) SEE GROUP 2B See group 3 |
