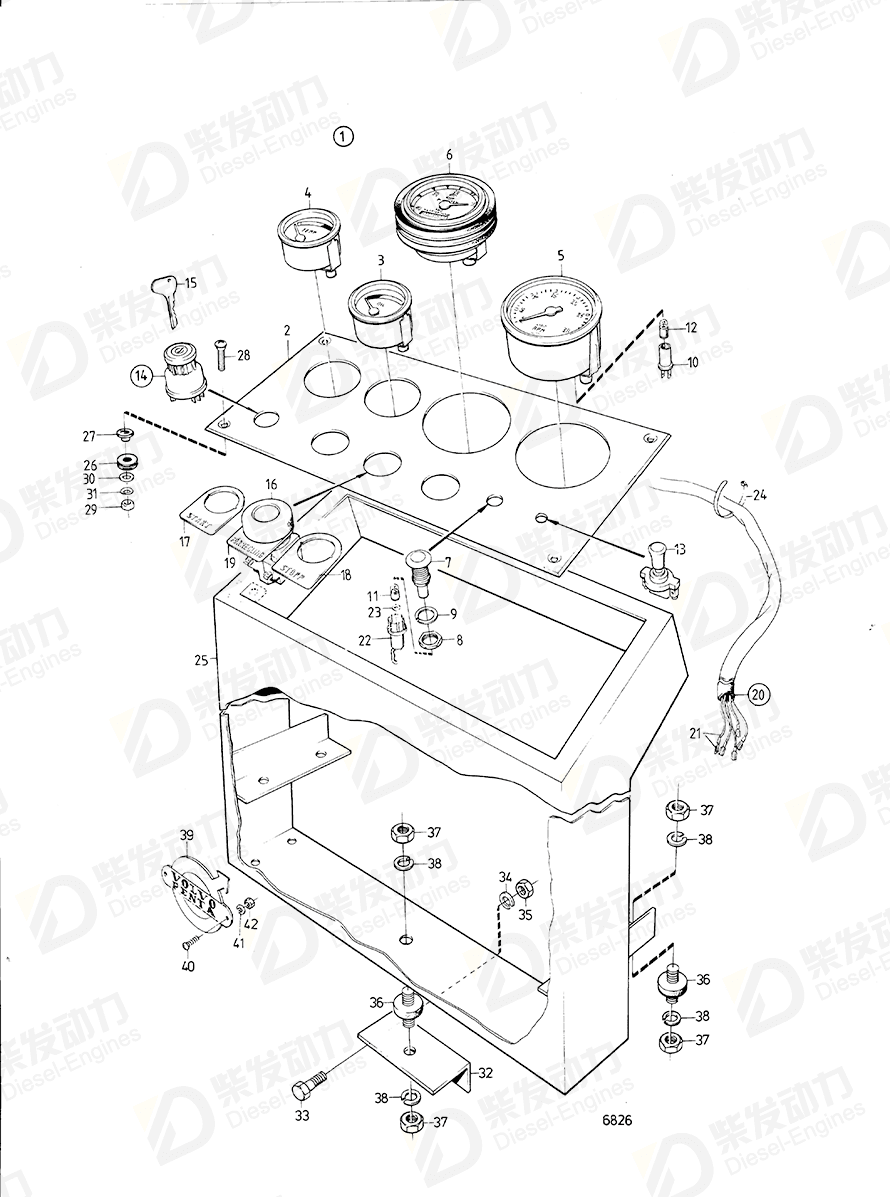

Instrument panel 847216
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Instrument panel |
847216 |
1 |
Assy |
| 2 |
Instrument plate |
821354 |
1 |
|
| 3 |
Instrument |
813864 |
1 |
|
| 4 |
Thermometer |
827149 |
1 |
|
| 5 |
Transistor |
823666 |
1 |
|
| 6 |
Hour recorder |
844957 |
1 |
(815138) |
| 7 |
Housing |
809485 |
1 |
|
| 8 |
Nut |
809487 |
1 |
|
| 9 |
Spring washer |
809488 |
1 |
|
| 10 |
Bulb socket |
804616 |
3 |
|
| 11 |
Bulb |
182034 |
1 |
(277803) |
| 12 |
Bulb |
182059 |
3 |
|
| 13 |
Pull switch |
819079 |
1 |
|
| 14 |
Starter switch |
837437 |
1 |
|
| 15 |
Key |
240321 |
2 |
Åkerman spec. 867446 |
| 15 |
Key |
241383 |
2 |
Åkerman spec. 867446. |
| 16 |
Switch device |
843837 |
3 |
|
| 17 |
Sign |
821389 |
1 |
For charging of 2 batteries use charge distributor 831793, Marked Steward Warner., Late type |
| 18 |
Sign |
821388 |
1 |
For charging of 2 batteries use charge distributor 831793, Marked Steward Warner., Late type |
| 19 |
Sign |
821387 |
1 |
|
| 22 |
Retainer |
672750 |
1 |
|
| 23 |
Tubular rivet |
95497 |
1 |
|
| 24 |
Cable tie |
948210 |
1 |
(827353) |
| 25 |
Anchorage |
842944 |
1 |
Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150 |
| 26 |
Bushing |
824834 |
4 |
Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150. |
| 27 |
Spacer sleeve |
824830 |
4 |
Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150. |
| 28 |
Screw |
941642 |
4 |
Instrument panel with temperature gauge type VDO. Early production with temperature gauge VDO-OTA is replaced by 823407 and sender 827150 |
| 29 |
Hexagon nut |
955781 |
4 |
|
| 30 |
Washer |
955893 |
4 |
|
| 31 |
Spring washer |
941906 |
4 |
|
| 32 |
Attaching plate |
830673 |
1 |
|
| 33 |
Hexagon screw |
940114 |
2 |
|
| 34 |
Spring washer |
942336 |
2 |
|
| 35 |
Hexagon nut |
955827 |
2 |
AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 36 |
Rubber cushion |
88101 |
3 |
|
| 37 |
Hexagon nut |
955782 |
6 |
|
| 38 |
Spring washer |
941907 |
6 |
|
| 39 |
Emblem |
846118 |
1 |
|
| 40 |
Screw |
941651 |
2 |
|
| 41 |
Spring washer |
941904 |
2 |
|
| 42 |
Hexagon nut |
955779 |
2 |
|
| Item |
Part Name |
Part No. |
| 1 |
Instrument panel 847216 |
847216 |
| Details |
| Application |
Instrument Panel and Installation Components for Power Pack |
| Specification |
| Descriptions |
Assy |
