Sensor, coolant water 20924086

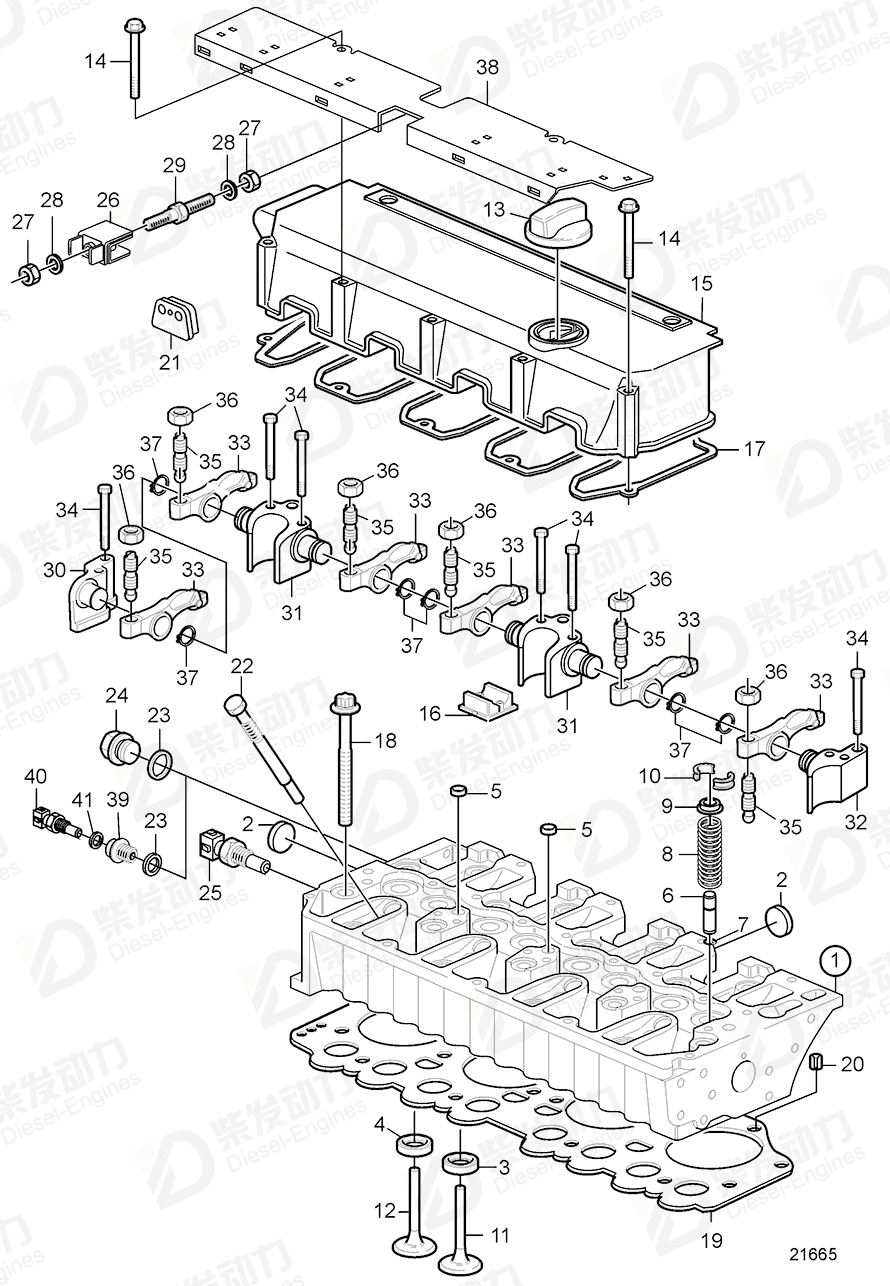

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803988 | 1 | (20405500) |
| 2 | Cap plug | 20412745 | 3 | |
| 3 | Valve seat, intake | 20459962 | 4 | Std=49,09mm, Std |
| 3 | Valve seat, intake | 20580079 | 4 | O.S=0,20mm |
| 3 | Valve seat, intake | 20580080 | 4 | O.S=0,40mm |
| 4 | Valve seat, exhaust | 20459963 | 4 | Std=43,60mm, Std |
| 4 | Valve seat, exhaust | 20580082 | 4 | O.S=0,20mm |
| 4 | Valve seat, exhaust | 20580083 | 4 | O.S=0,40mm |
| 5 | Cap plug | 20412733 | 3 | |
| 6 | Valve guide | 20405897 | 8 | Std=15,00mm, Std |
| 6 | Valve guide | 20580074 | 8 | O.S=0,25mm |
| 6 | Valve guide | 20580078 | 8 | O.S=0,50mm |
| 7 | O-ring | 976013 | 8 | |
| 8 | Compression spring | 11700347 | 8 | |
| 9 | Valve spring washer | 11700346 | 8 | |
| 10 | Collet | 11700345 | 16 | |
| 11 | Inlet valve, intake | 20714469 | 4 | (20572597) |
| 12 | Exhaust valve, exhaust | 20565912 | 4 | |
| 13 | Filler cap | 20412589 | 1 | |
| 14 | Flange screw | 20412601 | 9 | |
| 15 | Valve cover | 20412587 | 1 | Only with gasket 20412588, SN-0010555383 |
| 15 | Valve cover | 20725337 | 1 | Only with gasket 20725315, SN0010555384- |
| 16 | Cap | 20412590 | 1 | |
| 17 | Plane gasket | 20412588 | 1 | Gasket only for valve cover: 20412587, SN-0010555383 |
| 17 | Gasket | 20725315 | 1 | Metal gasket only for valve cover: 20725337, SN0010555384- |
| 18 | Six point screw | 11700334 | 18 | |
| 19 | Cylinder head gasket | 11700335 | 1 | TH=1,4mm, One dot |
| 19 | Cylinder head gasket | 11700336 | 1 | TH=1,5mm, Two dots |
| 19 | Cylinder head gasket | 11700337 | 1 | TH=1,6mm, Three dots |
| 19 | Cylinder head gasket | 23172474 | 1 | TH=1,5mm, Two dots |
| 19 | Cylinder head gasket | 23178165 | 1 | TH=1,4mm, One dot |
| 19 | Cylinder head gasket | 23193385 | 1 | TH=1,6mm, Three dots |
| 20 | Spring pin | 20405521 | 2 | |
| 21 | Seal | 20405886 | 6 | |
| 22 | Plug | 20405895 | 4 | |
| 23 | Gasket | 947628 | 2 | |
| 24 | Plug | 20464451 | 1 | |
| 25 | Sensor, coolant water | 20924086 | 1 | (20543720) |
| 26 | Clamp | 20450956 | 1 | EDC IV |
| 27 | Hexagon nut | 20460344 | 2 | EDC IV |
| 28 | Washer | 20460345 | 2 | EDC IV |
| 29 | Shoulder screw | 20580716 | 1 | EDC IV |
| 30 | Bracket | 11700369 | 1 | |
| 31 | Bracket | 11700368 | 3 | |
| 32 | Bracket | 11700367 | 1 | |
| 33 | Rocker arm | 11700370 | 8 | |
| 34 | Flange screw | 984741 | 10 | L=70mm |
| 35 | Adjusting screw | 20405524 | 8 | |
| 36 | Hexagon nut | 11700373 | 8 | |
| 37 | Snap ring | 20549891 | 8 | |
| 38 | Valve cover | 20459964 | 1 | EDC IV |
| 39 | Adapter | 20450683 | 1 | EDC IV |
| 40 | Sensor, coolant temperature | 20513340 | 1 | |
| 41 | Gasket | 969011 | 1 |
| Item | Part Name | Part No. |
| 25 | Sensor, coolant water 20924086 | 20924086 |
| Details | |
| Engine model | TAD520GE TAD520GE, TAD720GE, TAD721GE, TAD722GE TAD520VE TAD520VE, TAD720VE, TAD721VE, TAD722VE TAD550GE, TAD551GE TAD720GE TAD720GE, TAD730GE, TAD731GE TD420VE, TAD420VE, TAD620VE TD520GE, TAD530GE, TAD531GE TD520GE, TAD530GE, TAD531GE, TAD532GE, TD720GE, TAD720GE, TAD730GE, TAD731GE, TAD732GE, TAD733GE TD520VE, TD720VE TD720GE |
| Application | Contacts and Sensors Cylinder Head |
| Specification | |
| Descriptions | (20543720) Earlier production, Stage 1 and Tier 1, (20543720) See section: contacts and sensors pos 4 & 6., (20543720) |
Related Products
Tags: Sensor, coolant water, Volvo Penta, 20924086
