Tachometer sensor 1502028

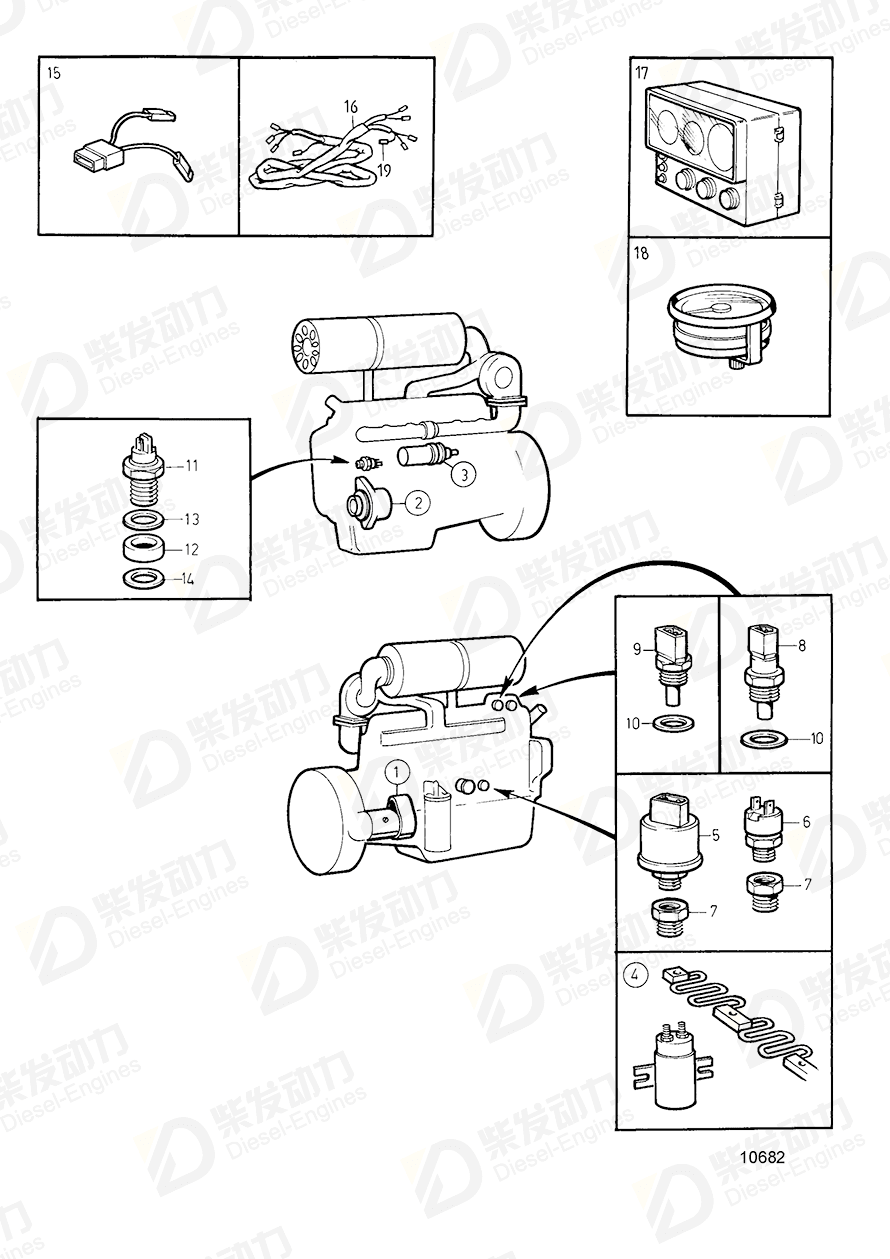

| No. | Part Name | Part Number | Qty | Description |
| 5 | Sensor, oil pressure-engine | 866835 | 1 | 0-10BAR |
| 6 | Pressure monitor, oil pressure-engine | 863169 | 1 | 0.7bar |
| 7 | Nipple, oil | 421528 | 1 | |
| 8 | Thermo monitor, coolant temp. | 848829 | 1 | 103°C |
| 8 | Thermo monitor, coolant temp. | 862250 | 1 | 97°C |
| 9 | Temperature sensor, instrument | 862154 | 1 | Max 120°C |
| 10 | Gasket | 947624 | 2 | |
| 11 | Tachometer sensor | 862251 | 1 | |
| 11 | Tachometer sensor | 1502028 | 1 | Blade terminal |
| 12 | Spacer sleeve | 863413 | 1 | Replaced by 1pce spacer sleeve 865808 and 2pcs o-ring 949656., L=9,7mm, earlier prod |
| 13 | Gasket | 947624 | 1 | |
| 14 | O-ring | 949656 | 1 | |
| 15 | Adapter | 863227 | 1 | Early type |
| 16 | Cable harness | 872691 | 1 | For l.s. (863816) |
| 17 | Instrument | 849968 | 1 |
| Item | Part Name | Part No. |
| 11 | Tachometer sensor 1502028 | 1502028 |
| Details | |
| Engine model | TD610G, TWD610G TD61A TD61AG TD61AP TD61AW, TD61ACE TD710G, TWD710G, TAD730G TD71A TD71AG TD71AP TD71AW, TD71ACE TID61AG TID71A TID71AG TID71AP TWD740GE, TAD740GE, TAD741GE |
| Application | Electrical Materials: A Electrical Materials: B Electrical Materials: C Electrical System and Instruments Electrical System and Instruments: 867903 Electrical System and Instruments: 867905 Electrical System and Instruments: 867906 Electrical System and Instruments: 867907 Electrical System and Instruments: 867909 Electrical System and Instruments: 867911 Electrical System and Instruments: 867912 Electrical System and Instruments: 867913 Electrical System and Instruments: 867914 Electrical System and Instruments: 867915 Electrical System and Instruments: 867916 Electrical System and Instruments: 867919 Electrical System and Instruments: 868135 Electrical System and Instruments: 868138 Electrical System and Instruments: 868454 Electrical System and Instruments: 868456 |
| Specification | |
| Descriptions | Blade terminal For overspeed control when elektronic speed control is mounted. |
