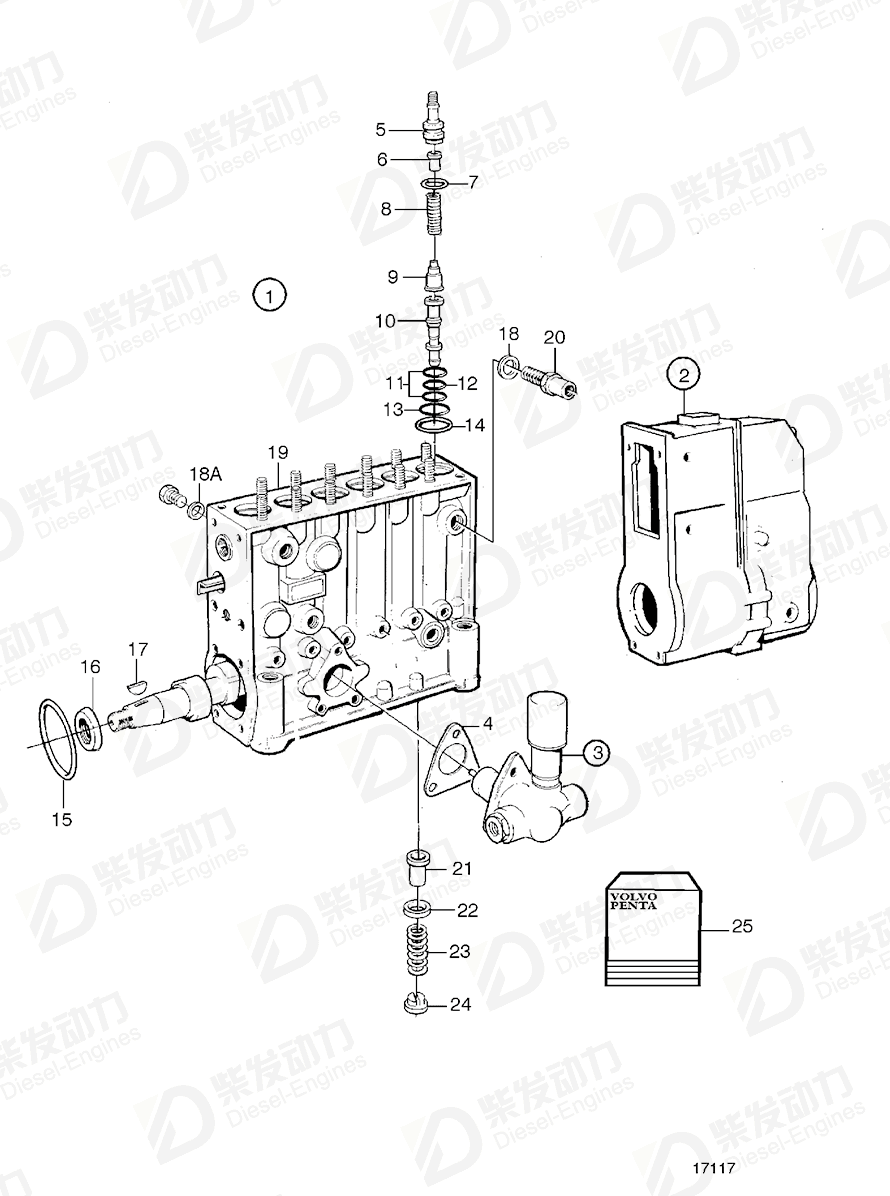

Small parts kit 11998401
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803743 | 1 | E.U=3803743 |
| 1 | Injection pump | 3826534 | 1 | E.U=3803743 |
| 2 | Governor | 3826536 | 1 | |
| 3 | Feed pump | 244825 | 1 | |
| 4 | Gasket | 6232208 | 1 | (863370) |
| 5 | Retainer | 244636 | 6 | |
| 6 | Peg | 240971 | 6 | |
| 7 | O-ring | 240001 | 6 | |
| 8 | Compression spring | 240969 | 6 | |
| 9 | Delivery valve | 244620 | 6 | |
| 10 | Pump element | 244401 | 6 | |
| 11 | Sealing washer | 239993 | 6 | |
| 12 | O-ring | 240422 | 12 | |
| 13 | Control sleeve | 240782 | 6 | |
| 14 | Spring disc | 239984 | 6 | |
| 15 | Compression spring | 244731 | 6 | (847277) |
| 16 | Spring disc | 244685 | 6 | (6211952) |
| 17 | Tappet | 1698077 | 6 | |
| 18 | Gasket | 11996 | 1 | |
| 20 | Overflow valve | 3825154 | 1 | |
| 21 | Key | 35168 | 1 | |
| 22 | Camshaft seal | 864299 | 1 | |
| 23 | O-ring | 243299 | 1 | |
| 25 | Small parts kit | 11998401 | 1 | |
| 18A | Washer | 239987 | 1 |
| Item | Part Name | Part No. |
| 25 | Small parts kit 11998401 | 11998401 |
| Details | |
| Application | Fuel Injection Pump, Components Fuel Injection Pump, Components: 3825107 Fuel Injection Pump, Components: 3826157 |
