Air filter insert 3827589

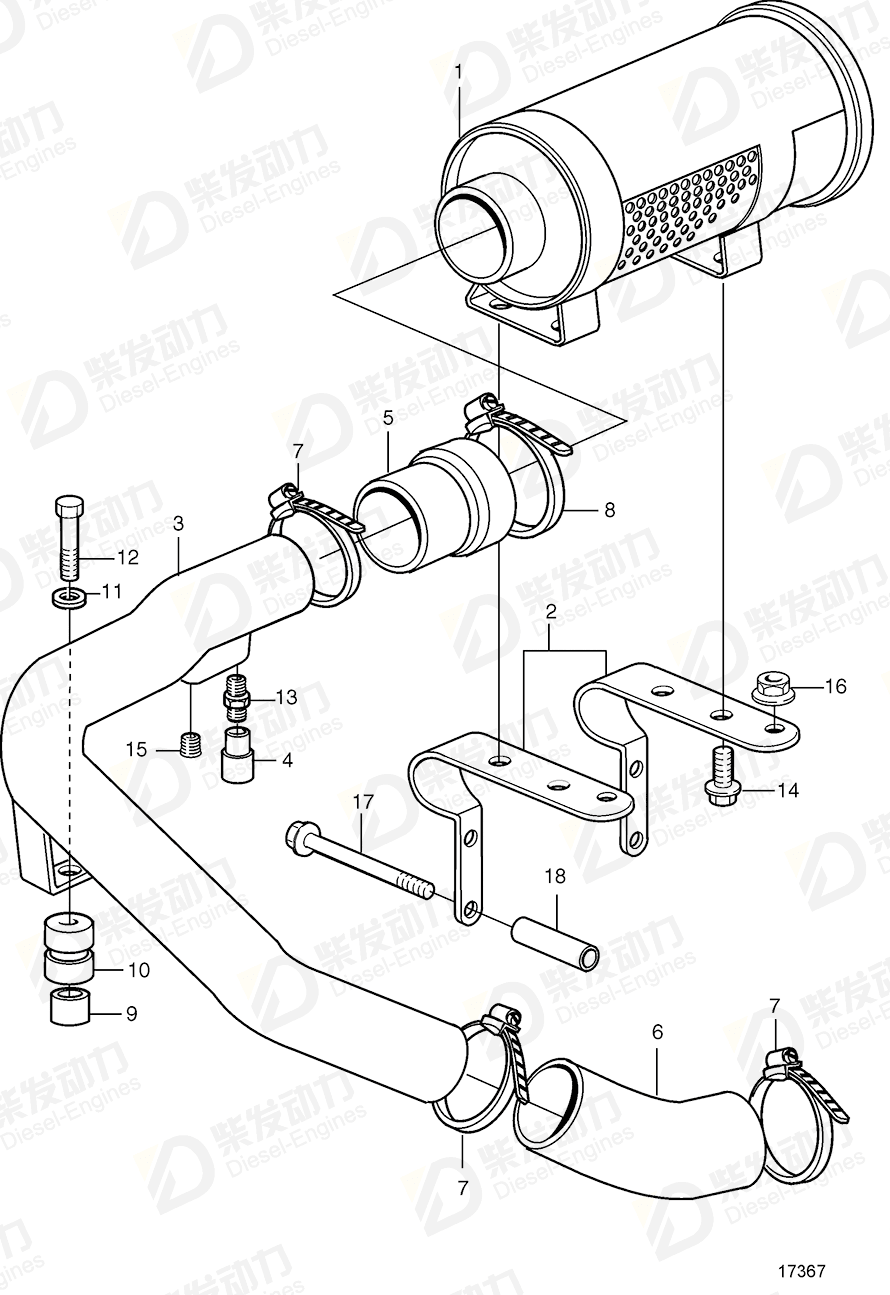

| No. | Part Name | Part Number | Qty | Description |
| 1 | Air filter | 3826862 | 1 | |
| 1 | Air filter insert | 3827589 | 1 | |
| 2 | Bracket | 3827042 | 2 | |
| 3 | Connecting pipe | 3827043 | 1 | |
| 4 | Pressure drop indica | 3828765 | 1 | |
| 5 | Rubber hose | 3827044 | 1 | |
| 6 | Hose | 3126647 | 1 | |
| 7 | Hose clamp | 961678 | 1 | D70B spec. 867221., Alt |
| 8 | Hose clamp | 853013 | 3 | |
| 9 | Spacer sleeve | 845589 | 1 | L=8mm |
| 10 | Vibration damper | 3827882 | 1 | |
| 11 | Washer | 955894 | 1 | |
| 12 | Flange screw | 947107 | 1 | |
| 13 | Nipple | 191095 | 1 | |
| 14 | Flange screw | 946173 | 4 | |
| 15 | Plug | 479977 | 1 | |
| 16 | Flange lock nut | 948645 | 2 | |
| 17 | Flange screw | 968553 | 4 | L=115mm |
| 18 | Spacer sleeve | 821539 | 4 | L=14mm, spec 9762 |
| Item | Part Name | Part No. |
| 1 | Air filter insert 3827589 | 3827589 |
| Details | |
| Engine model | TAD740GE, TAD741GE TWD740GE TWD740VE |
| Application | Air Filter Air Filter: A Air Filter: B |
