Charge air pipe 1676665

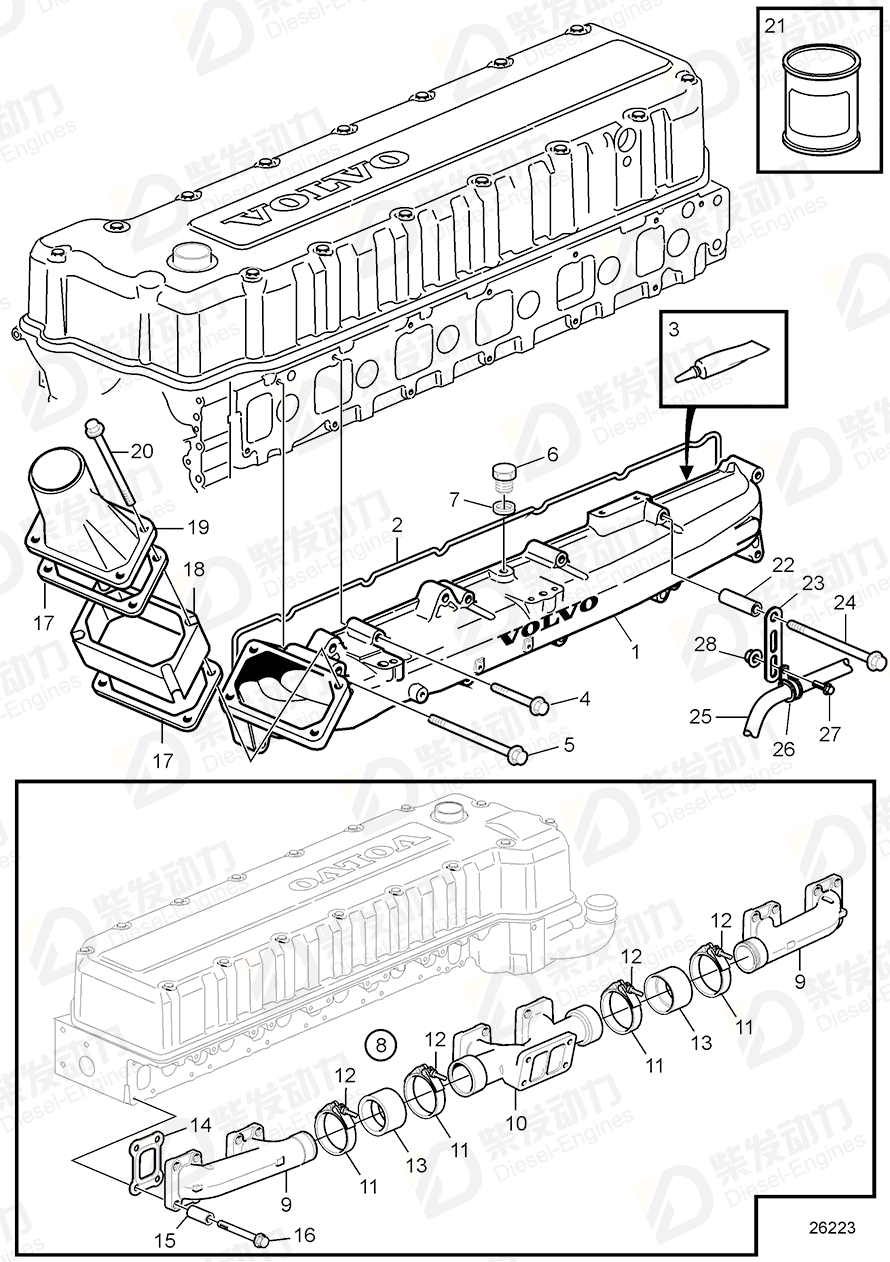

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 20760110 | 1 | Late type |
| 2 | Gasket | 20463858 | 1 | For 20760110 |
| 3 | Sealant | 1161231 | 1 | 304ml |
| 3 | Sealant | 1161277 | 1 | 20g |
| 4 | Flange screw | 965180 | 9 | |
| 4 | Flange screw | 968999 | 2 | L=75mm |
| 5 | Flange screw | 968892 | 1 | |
| 6 | Plug | 960628 | 1 | |
| 7 | Gasket | 947281 | 1 | |
| 9 | Exhaust manifold | 3155036 | 2 | |
| 10 | Exhaust manifold | 3838248 | 1 | |
| 11 | Hose clamp | 20486523 | 4 | |
| 14 | Gasket | 8170959 | 6 | |
| 15 | Spacer sleeve | 1546517 | 20 | |
| 16 | Flange screw | 965189 | 20 | |
| 17 | Gasket | 477314 | 2 | |
| 18 | Spacer | 1676806 | 1 | |
| 19 | Charge air pipe | 1676665 | 1 | |
| 20 | Flange screw | 968842 | 4 | L=110mm |
| 21 | Sealant | 591247 | 1 | |
| 22 | Spacer sleeve | 849097 | 2 | L=67mm |
| 23 | Bracket | 965537 | 2 | |
| 24 | Flange screw | 968999 | 2 | L=75mm |
| 25 | Fuel hose | 3828658 | 1 | Fuel filter-inlet cylinder head. |
| 26 | Clamp | 952629 | 2 | |
| 27 | Flange screw | 946440 | 2 | |
| 28 | Flange nut | 945407 | 2 | For THD102KB and THD102KD. |
| Item | Part Name | Part No. |
| 19 | Charge air pipe 1676665 | 1676665 |
| Details | |
| Engine model | TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE |
| Application | Induction and Exhaust Manifold Radiator and Fan Radiator and Fan D=750mm Radiator and fan D=890mm |
