Connecting pipe 846793

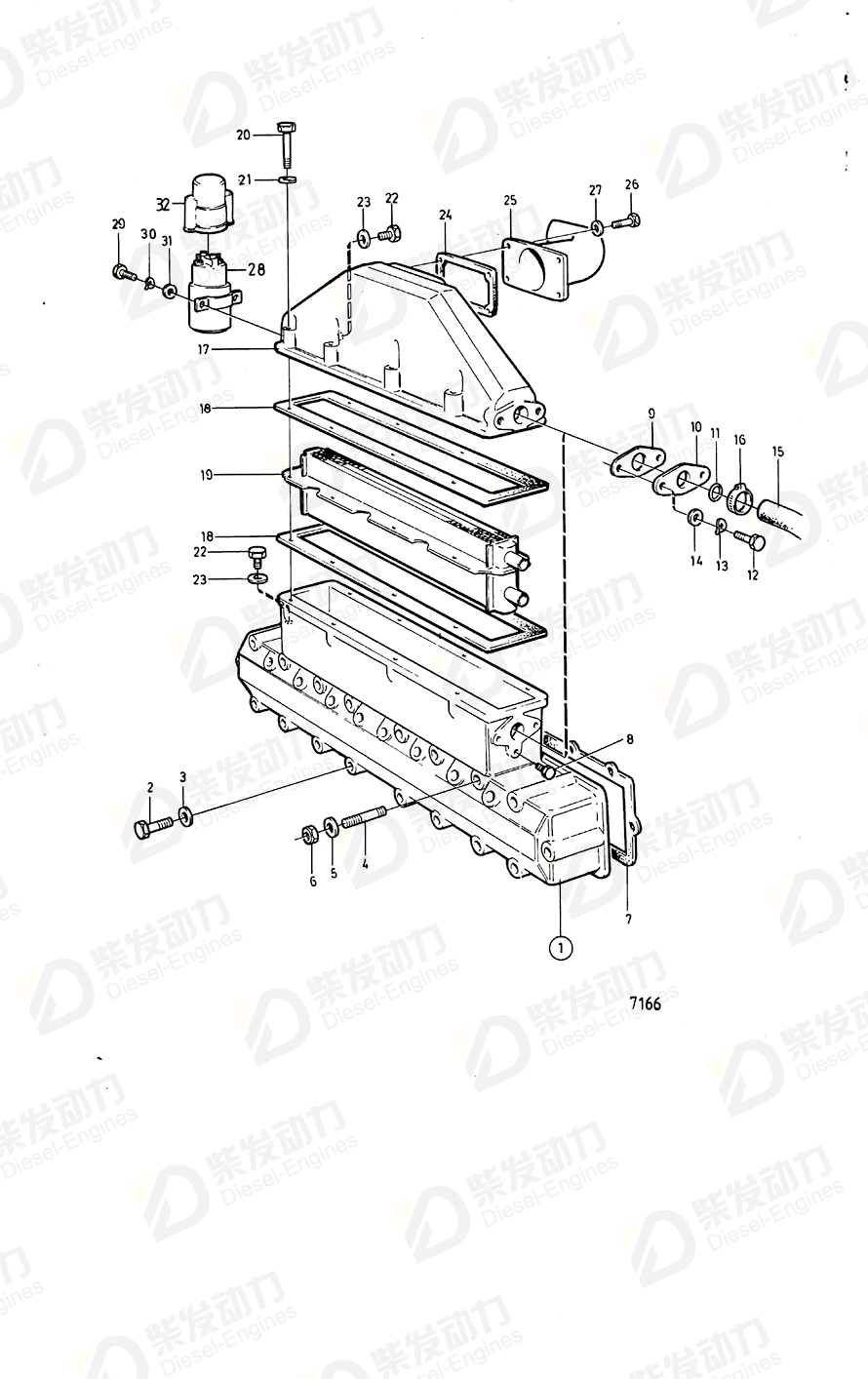

| No. | Part Name | Part Number | Qty | Description |
| 2 | Hexagon screw | 955532 | 10 | Only for thermoswitch control 837500,837501., L=95mm |
| 3 | Washer | 955894 | 10 | |
| 4 | Stud | 949439 | 2 | |
| 5 | Washer | 955894 | 2 | |
| 6 | Hexagon nut | 955826 | 2 | |
| 7 | Gasket | 420071 | 2 | |
| 8 | Plug | 191026 | 1 | |
| 9 | Gasket | 846897 | 2 | |
| 10 | Flange | 846896 | 2 | |
| 11 | O-ring | 925057 | 2 | |
| 12 | Hexagon screw | 940094 | 4 | |
| 13 | Spring washer | 941906 | 4 | |
| 14 | Washer | 955893 | 4 | |
| 15 | Hose | 952969 | 1 | (943368) L=600mm |
| 16 | Hose clamp | 943473 | 2 | |
| 17 | Cover | 846879 | 1 | |
| 18 | Gasket | 845515 | 2 | |
| 19 | Charge air cooler | 845660 | 1 | |
| 20 | Hexagon screw | 955528 | 8 | |
| 21 | Washer | 955894 | 8 | |
| 22 | Hexagon screw | 940113 | 2 | |
| 23 | Gasket | 957171 | 2 | |
| 24 | Gasket | 846898 | 1 | |
| 25 | Connecting pipe | 846793 | 1 | |
| 26 | Hexagon screw | 940094 | 4 | |
| 27 | Washer | 955893 | 4 | |
| 28 | Relay | 1577376 | 1 | 24V 150A |
| 29 | Hexagon screw | 955224 | 2 | Replaced by 1pc 843401, 1pc 845851, 1pc 961248. |
| 30 | Spring washer | 941904 | 2 | |
| 31 | Washer | 960137 | 2 | |
| 32 | Casing | 1581123 | 1 |
| Item | Part Name | Part No. |
| 25 | Connecting pipe 846793 | 846793 |
| Details | |
| Engine model | TID60D, TID60DG TID61AG TID71A TID71A, TWD710V TID71AG TID71AP TWD610G TWD610P TWD610V, TWD630VE TWD630ME TWD710G TWD710P |
| Application | INDUCTION MANIFOLD AND INSTALLATION COMPONENTS Induction Manifold and Installation Components: A Induction Manifold and Installation Components: B Induction Manifold and Installation Components: TID71AGP Induction Manifold and Installation Components: TID71APB Inlet Manifold Inlet Manifold: A |
