Connection pipe 3589210

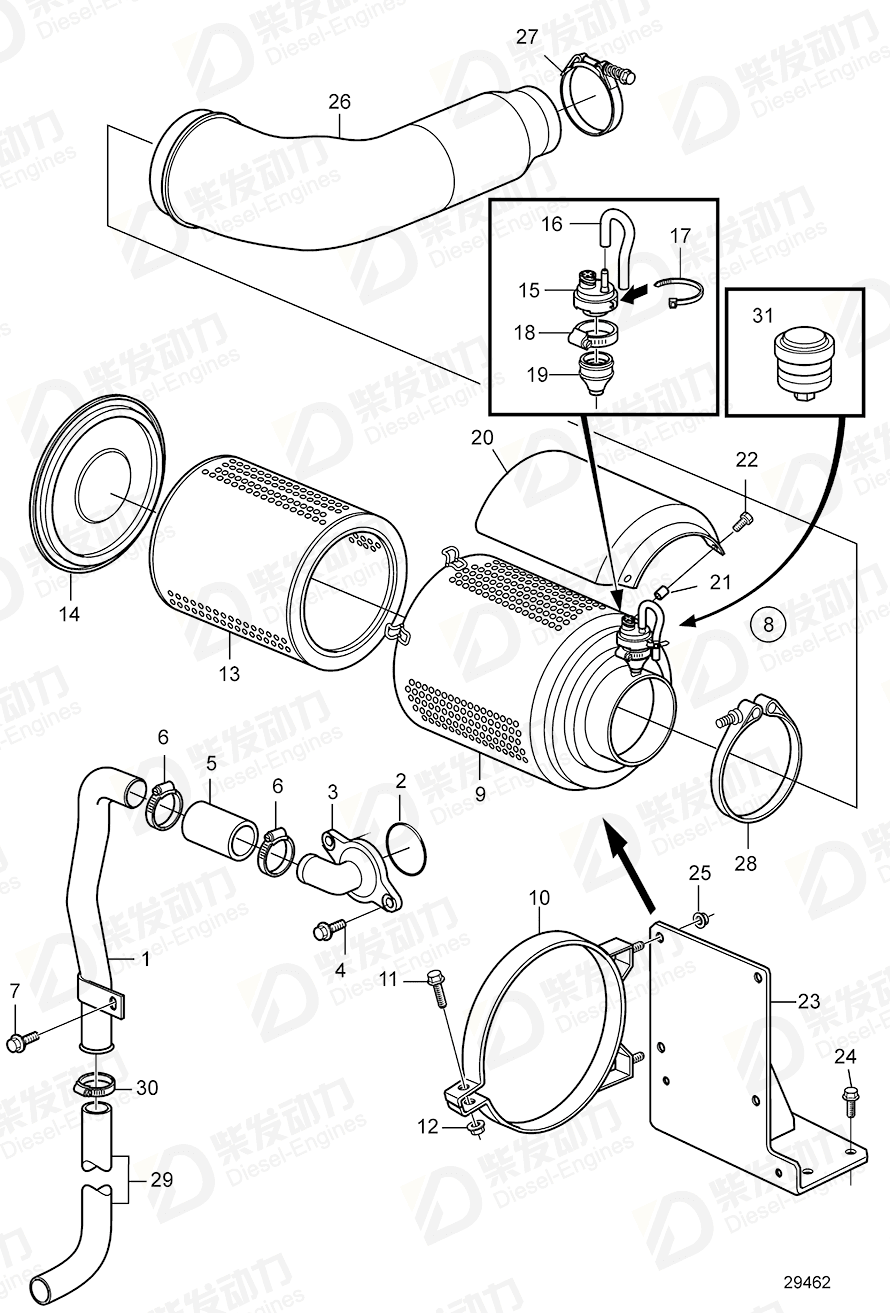

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Breather pipe |
3808320 |
1 |
|
| 2 |
Sealing ring |
3165097 |
1 |
|
| 3 |
Hose connection |
3827462 |
1 |
|
| 4 |
Flange screw |
945444 |
2 |
|
| 5 |
Hose |
942707 |
1 |
L=700mm |
| 6 |
Hose clamp |
994561 |
2 |
|
| 7 |
Flange screw |
946440 |
1 |
|
| 8 |
Air filter |
21233119 |
1 |
|
| 10 |
Mounting strap |
3831143 |
2 |
|
| 13 |
Insert |
21212204 |
1 |
|
| 15 |
Vacuum switch |
20560843 |
1 |
|
| 16 |
Hose |
949931 |
1 |
|
| 17 |
Cable tie |
948702 |
1 |
|
| 18 |
Hose clamp |
994561 |
1 |
|
| 19 |
Adapter |
3839145 |
1 |
|
| 20 |
Rain cap |
3830971 |
1 |
|
| 21 |
Expanding nut |
930760 |
4 |
|
| 22 |
Flange screw |
947542 |
4 |
|
| 23 |
Bracket |
3817204 |
1 |
|
| 24 |
Flange screw |
946472 |
4 |
|
| 25 |
Flange nut |
971095 |
4 |
Alt |
| 26 |
Connection pipe |
3589210 |
1 |
|
| 27 |
Hose clamp |
20435760 |
1 |
|
| 28 |
Hose clamp |
1674223 |
1 |
|
| 29 |
Hose |
942707 |
1 |
L=700mm |
| 30 |
Hose clamp |
994561 |
1 |
|
| 31 |
Pressure drop indica |
3828765 |
1 |
|
| Item |
Part Name |
Part No. |
| 26 |
Connection pipe 3589210 |
3589210 |
| Details |
| Engine model |
TAD1250VE, TAD1251VE, TAD1252VE |
| Application |
Crankhouse Ventilation and Air Filter |
