Heater 863377

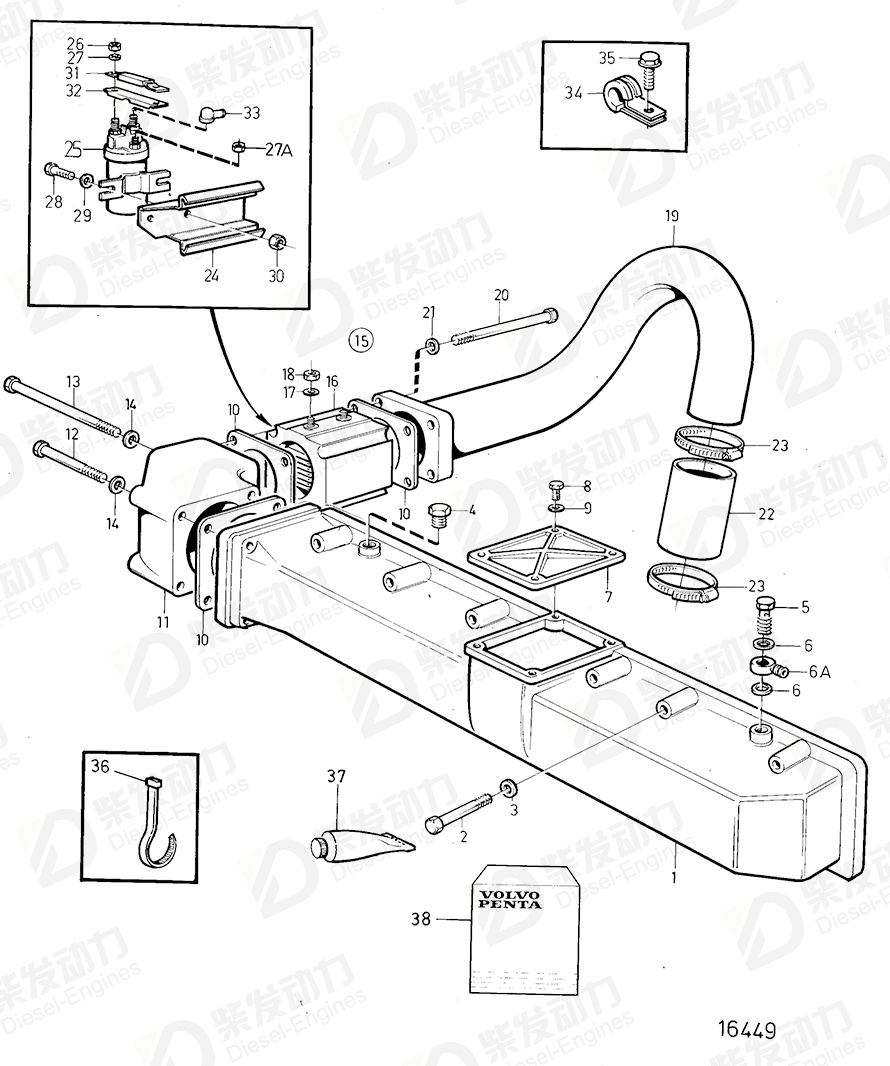

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 465953 | 1 | |
| 2 | Hexagon screw | 955311 | 2 | |
| 2 | Flange screw | 965180 | 10 | |
| 3 | Spring washer | 941907 | 12 | |
| 4 | Plug | 479979 | 1 | |
| 5 | Hollow screw | 969299 | 1 | |
| 6 | Gasket | 11994 | 2 | |
| 7 | Cover | 465957 | 1 | |
| 8 | Flange screw | 946671 | 4 | |
| 9 | Spring washer | 941907 | 4 | |
| 10 | Gasket | 471682 | 3 | Included in gasket kit. |
| 11 | Connecting angle | 849251 | 1 | |
| 12 | Flange screw | 965183 | 2 | |
| 13 | Flange screw | 969225 | 2 | L=120mm |
| 14 | Spring washer | 941907 | 4 | |
| 15 | Starter element | 848959 | 1 | 24V |
| 15 | Heater | 863377 | 1 | 12V |
| 17 | Washer | 955894 | 2 | |
| 18 | Hexagon nut | 17624 | 2 | |
| 19 | Connecting pipe | 849252 | 1 | |
| 20 | Flange screw | 968842 | 4 | L=110mm |
| 21 | Washer | 120265 | 8 | |
| 23 | Hose clamp | 943479 | 2 | |
| 24 | Attaching plate | 866463 | 1 | Alt |
| 25 | Relay | 872242 | 1 | 12V, alt |
| 25 | Relay | 873962 | 1 | |
| 26 | Hexagon nut | 17624 | 2 | |
| 27 | Spring washer | 941907 | 2 | |
| 28 | Cross recessed screw | 956074 | 2 | EARLY TYPE |
| 29 | Washer | 940090 | 2 | |
| 30 | Hexagon nut | 955780 | 2 | |
| 31 | Support | 421692 | 1 | |
| 32 | Fuse | 471477 | 1 | |
| 33 | Protective cap | 842150 | 1 | |
| 34 | Clamp | 949747 | 1 | |
| 35 | Flange screw | 946440 | 1 | |
| 36 | Cable tie | 948211 | 4 | |
| 37 | Sealant | 1161231 | 1 | 304ml |
| 38 | Intake gasket kit | 876336 | 1 | See group 99 |
| 27A | Hexagon nut | 955780 | 2 |
| Item | Part Name | Part No. |
| 15 | Heater 863377 | 863377 |
| Details | |
| Engine model | TD610M TD610M, TD630ME TD610V TD610V, TD630VE TD61A TD61ACE TD61AG TD61AP TD61AW TD630VE TD71A TD71ACE TD71AG TD71AP TD71AW TD730VE |
| Application | Induction Manifold with Installation Components Induction Manifold with Installation Components: A Induction Manifold with Installation Components: B Induction Manifold with Installation Components: TD61AGP Induction Manifold with Installation Components: TD71AGP Induction Manifold with Installation Components: TD71APB Induction Manifold, Low Mounted Turbocharger Induction Manifold, Low Mounted Turbocharger: A Inlet Manifold: A Inlet Manifold: B |
| Specification | |
| Descriptions | 12V |
