Hose clamp 961678

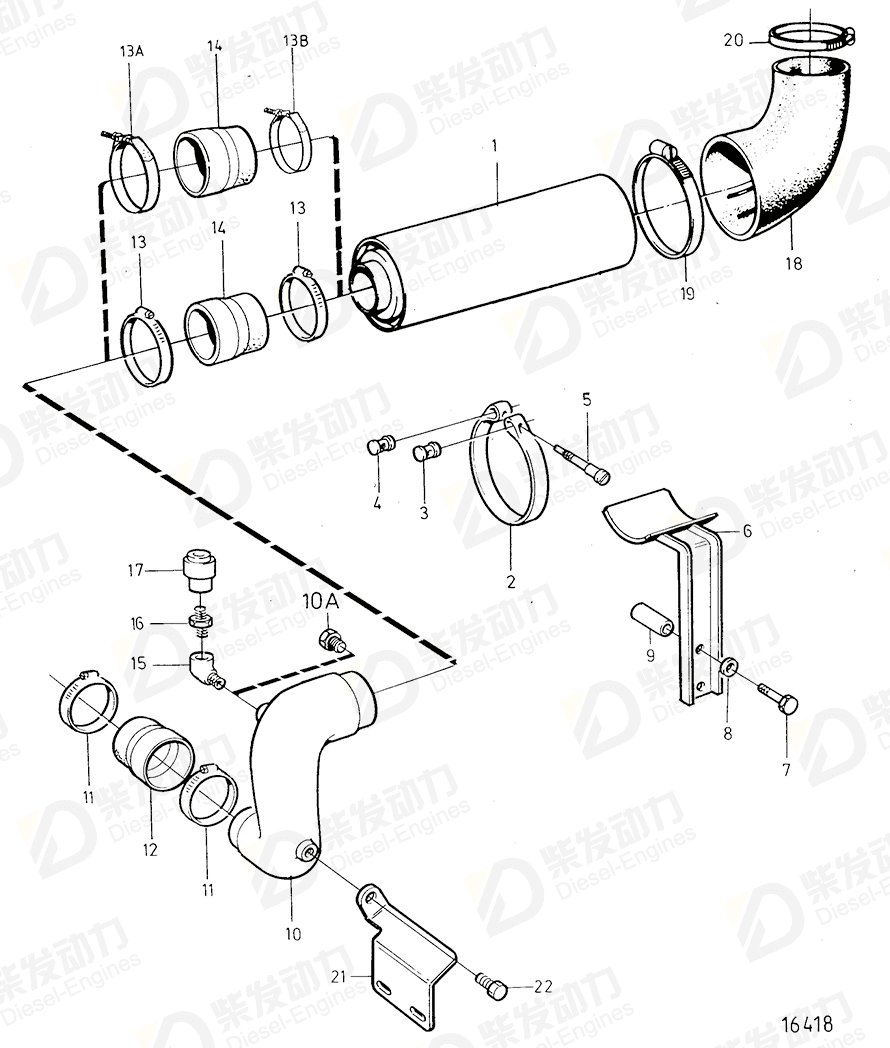

| No. | Part Name | Part Number | Qty | Description |
| 1 | Air filter | 3825778 | 1 | |
| 2 | Tensioning band | 821028 | 1 | |
| 3 | Pin | 31405 | 1 | |
| 4 | Clevis pin, threaded | 31404 | 1 | |
| 5 | Hexagon screw | 31406 | 1 | |
| 6 | Bracket | 847920 | 1 | |
| 7 | Hexagon screw | 955310 | 2 | L=130mm |
| 8 | Washer | 976944 | 2 | |
| 9 | Spacer sleeve | 826652 | 1 | |
| 9 | Spacer sleeve | 845589 | 1 | L=8mm |
| 9 | Spacer sleeve | 848229 | 1 | L=31mm |
| 10 | Connecting pipe | 3825087 | 1 | (848252) |
| 11 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 11 | Hose clamp | 943481 | 1 | (951798) |
| 12 | Rubber fitting | 847608 | 1 | |
| 13 | Hose clamp | 943484 | 4 | (951801) |
| 14 | Rubber fitting | 836334 | 1 | For 804961., D=105mm-113mm |
| 15 | Elbow nipple | 16218 | 1 | |
| 16 | Nipple | 191095 | 1 | |
| 17 | Pressure drop indica | 3828765 | 1 | |
| 18 | Manifold | 864291 | 1 | For air intake from outside the engine room. |
| 19 | Hose clamp | 944307 | 1 | D70B spec. 867221., Alt |
| 20 | Hose clamp | 961678 | 1 | D70B spec. 867221., Alt |
| 21 | Bracket | 849317 | 1 | |
| 22 | Flange screw | 947107 | 1 | |
| 10A | Plug | 479979 | 1 | |
| 13A | Hose clamp | 1544734 | 1 | |
| 13B | Hose clamp | 1544733 | 1 |
| Item | Part Name | Part No. |
| 20 | Hose clamp 961678 | 961678 |
| Details | |
| Engine model | D70B TAD1030G TAD1030GE TAD1030P TAD1030V TAD1230G, TAD1232GE TAD1230P TAD1230V TAD1231GE TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TAD1630P TAD730G TAD730P TAD730V TD100G-87 TD100G-87, TD1030ME TD100G-87, TD1030VE TD100GG-87 TD100HP-87 TD1010G TD120HP-86, TD121GG-86 TD120HPP TD1210G TD121G-87 TD121GP-87, TD1210G TD60A TD60B TD60D TD60D-83 TD610G TD610M, TD630ME TD610V, TD630VE, TD640VE TD61A TD61AG TD61AP TD70B TD70G TD70G-83 TD710G TD71A, TD71AG, TD71AP TD71A, TID71A TD730ME, TWD730ME, TWD731ME TD730VE, TWD731VE TID162AG, TID162AGP, TID162AP, TID162APB TID60D TID60DG TID61AG TID70G TWD1010G TWD1030ME TWD1031VE TWD1210G, TWD1211G TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V TWD1231VE TWD1630P TWD1630V TWD610G TWD610P TWD610V, TWD630VE TWD630ME TWD710G TWD710P TWD710V TWD740VE |
| Application | Air Filter Air Filter (Not for low-mounted Turbo) Air Filter and Installation Components Air Filter and Installation Components, Later Production Air Filter and Installation Components: A Air Filter and Installation Components: B Air Filter and Installation Components: C Air Filter and Installation Components: TD100HPB87 Air Filter and Installation Components: TD61APB Air Filter, High Location Air Filter, Later Production Air Filter, Side Installation Air Filter,SN-2160046678 Air Filter: A Air Filter: B |
| Specification | |
| Descriptions | ALT D70B spec. 867221., Alt |
