Sealing ring 469829

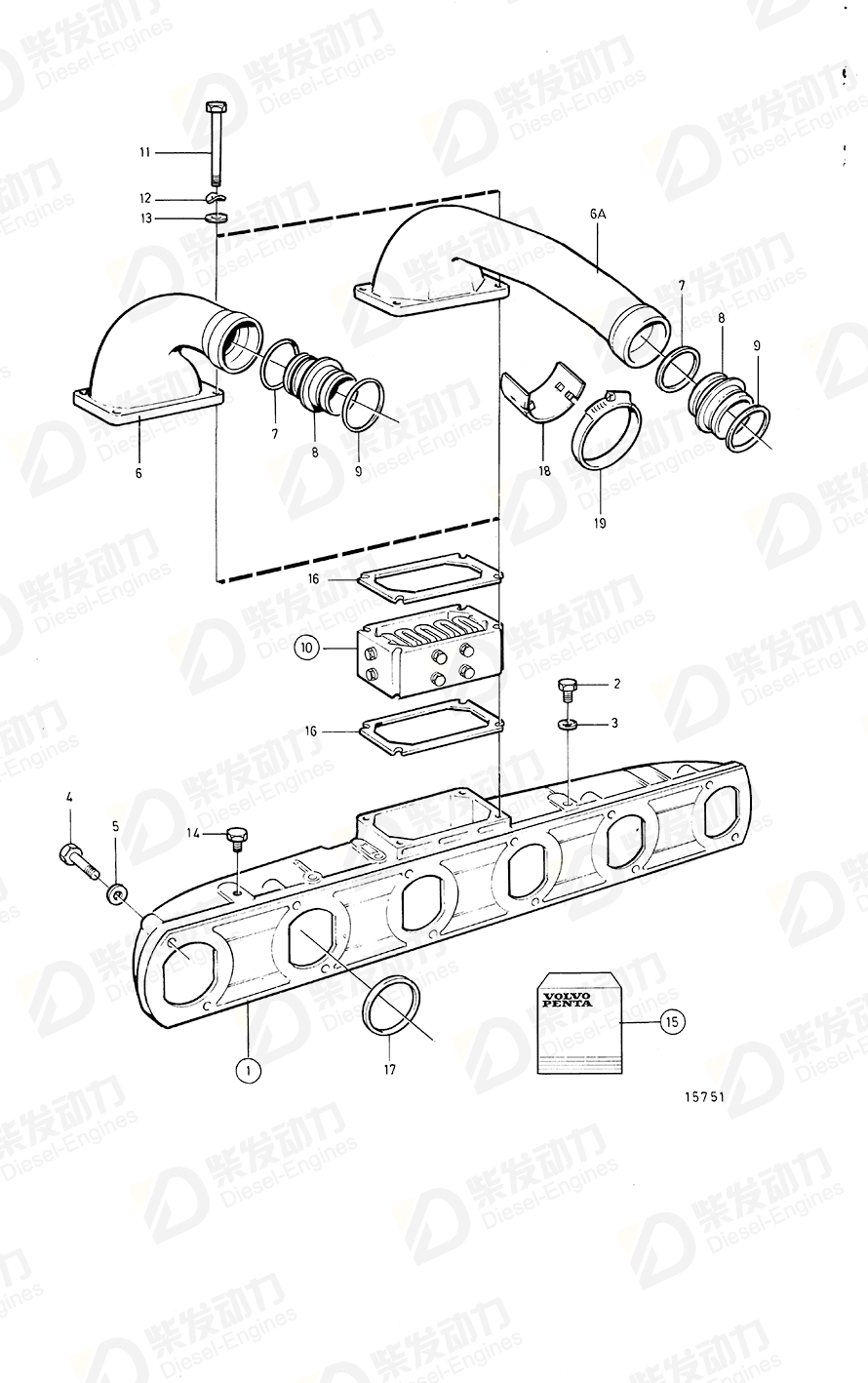

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 8194465 | 1 | |
| 2 | Hexagon screw | 940113 | 1 | |
| 3 | Gasket | 947620 | 1 | (233321) |
| 4 | Hexagon screw | 949886 | 2 | (191337) |
| 4 | Hexagon screw | 955526 | 6 | MD70BK spec 867116 MOXXXX/9685- |
| 4 | Hexagon screw | 955533 | 2 | For engine with 40° angle of inclination, L=102mm |
| 5 | Spring washer | 941907 | 10 | |
| 6 | Connecting pipe | 469525 | 1 | |
| 7 | O-ring | 469508 | 1 | Included in gasket kit. |
| 8 | Intermediate pipe | 469510 | 1 | |
| 9 | O-ring | 469509 | 1 | Included in gasket kit. |
| 10 | Starter element | 471867 | 1 | |
| 11 | Hexagon screw | 955532 | 4 | Only for thermoswitch control 837500,837501., L=95mm |
| 12 | Spring washer | 941907 | 4 | |
| 13 | Washer | 955894 | 4 | |
| 14 | Plug | 479979 | 1 | |
| 15 | Intake gasket kit, induction manifold | 876781 | 1 | |
| 16 | Gasket | 424618 | 2 | |
| 17 | Sealing ring | 469829 | 6 | Included in gasket kit. |
| 18 | Heat shield | 467650 | 1 | For low-mounted turbo. |
| 19 | Hose clamp | 943482 | 1 | (951798) |
| 6A | Connecting pipe | 1545683 | 1 | For low-mounted turbo. |
| Item | Part Name | Part No. |
| 17 | Sealing ring 469829 | 469829 |
| Details | |
| Engine model | DH10A DH10A, THD102KD, THD102KB TAD1030G TAD1030GE TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD1031GE TAD1032GE TD100CHC TD100CRC TD100G-87 TD100G-87, TD1030ME TD100G-87, TD1030VE TD100GG-87 TD100HP-87 TD1010G TD1010G, TWD1010G TD1030ME TD1030VE THD102KB THD102KD TWD1010G TWD1030ME TWD1031VE |
| Application | Induction and Exhaust Pipe: A Induction and Exhaust Pipe: B Induction Manifold and Installation Components Induction Manifold and Intercooler Induction Manifold with Starter Element Induction- and Exhaust Manifold Induction- and Exhaust Manifold: A Induction- and Exhaust Manifold: B Induction- and Exhaust Manifold: C Induction- and Exhaust Manifold: TD100HPB87 Inlet Manifold and Aftercooler Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: TD100-87 Repair Kits: TID100-87 |
| Specification | |
| Descriptions | (422174) Included in gasket kit 876025 for induction manifold+intercooler. Included in gasket kit. |
