Sealing ring 469982

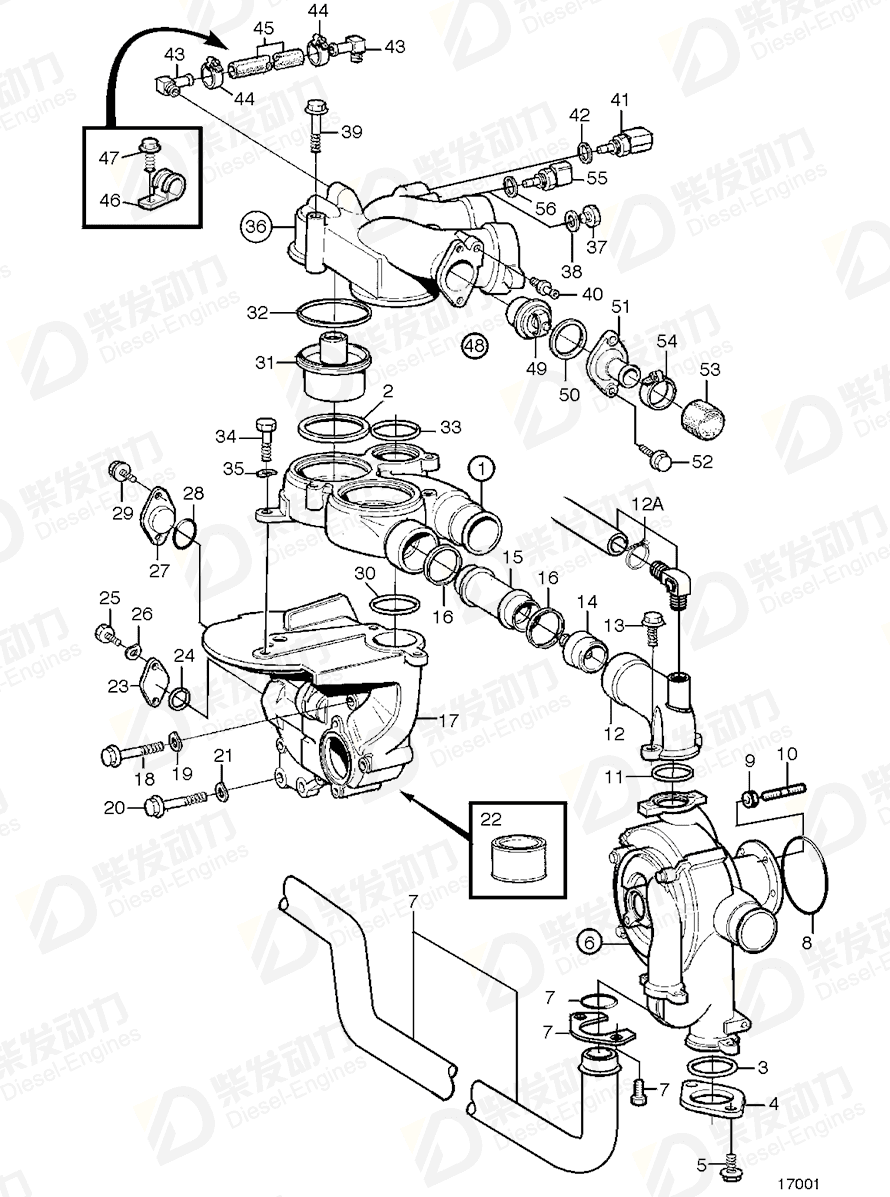

| No. | Part Name | Part Number | Qty | Description |
| 1 | Thermostat housing | 425065 | 1 | |
| 2 | Sealing ring | 1544710 | 2 | |
| 3 | O-ring | 925092 | 1 | |
| 4 | Flange | 469999 | 1 | |
| 5 | Flange screw | 946440 | 2 | |
| 6 | Coolant pump | 425521 | 1 | E.U=3803391 |
| 6 | Coolant pump | 3803391 | 1 | E.U=3803391 |
| 8 | O-ring | 925255 | 1 | |
| 9 | Stud | 980289 | 5 | |
| 10 | Flange nut | 945408 | 5 | |
| 11 | O-ring | 925069 | 1 | |
| 12 | Pipe elbow | 425565 | 1 | |
| 13 | Flange screw | 945444 | 2 | |
| 14 | Delivery valve | 469732 | 1 | |
| 15 | Coolant pipe | 424966 | 1 | |
| 16 | Sealing ring | 469981 | 2 | |
| 17 | Housing | 469759 | 1 | |
| 18 | Hexagon screw | 955538 | 4 | |
| 18 | Hexagon screw | 955544 | 3 | |
| 19 | Spring washer | 942336 | 7 | |
| 20 | Hexagon screw | 955565 | 2 | Temporary production., L=57mm |
| 21 | Spring washer | 940280 | 2 | |
| 22 | Sealant | 1161231 | 1 | 304ml |
| 22 | Sealant | 1161277 | 1 | 20g |
| 23 | Flange | 469987 | 1 | |
| 24 | Sealing ring | 469479 | 1 | |
| 25 | Hexagon screw | 940135 | 2 | |
| 26 | Spring washer | 941907 | 2 | |
| 27 | Cover | 469763 | 1 | |
| 28 | Sealing ring | 469982 | 1 | |
| 29 | Flange screw | 942402 | 2 | |
| 30 | O-ring | 975672 | 1 | |
| 31 | Thermostat | 8149182 | 2 | |
| 32 | Sealing ring | 1544410 | 2 | |
| 33 | O-ring | 975672 | 1 | |
| 34 | Hexagon screw | 955535 | 3 | |
| 35 | Spring washer | 942336 | 3 | |
| 36 | Cover | 425478 | 1 | |
| 37 | Plug | 960631 | 1 | |
| 38 | Gasket | 11996 | 1 | |
| 39 | Flange screw | 965182 | 2 | |
| 39 | Flange screw | 965183 | 1 | |
| 40 | Nipple | 1136966 | 2 | |
| 43 | Elbow nipple | 479953 | 2 | |
| 44 | Hose clamp | 994556 | 2 | |
| 45 | Rubber hose | 943366 | 1 | L=600mm late type |
| 46 | Clamp | 952628 | 1 | |
| 47 | Flange screw | 967949 | 1 | |
| 48 | Thermostat kit | 273950 | 1 | |
| 50 | Sealing ring | 416033 | 1 | |
| 51 | Connecting pipe | 469900 | 1 | |
| 52 | Flange screw | 945444 | 2 | |
| 53 | Rubber plug | 424543 | 1 | |
| 54 | Hose clamp | 994562 | 1 | Spec. 9882, 9961., (951793) |
| Item | Part Name | Part No. |
| 28 | Sealing ring 469982 | 469982 |
| Details | |
| Engine model | DH10A DH10A, THD102KD, THD102KB TAD730G TAD730P TAD730V TAD740GE TAD740GE, TAD741GE TAD741GE TD610G TD610G, TWD610G TD610M TD610V TD630ME TD630VE TD640VE TD710G TD71A TD71A, TD730VE, TAD730V TD730ME TD730VE THD102KB THD102KD TID162AG, TID162AGP, TID162AP, TID162APB TID71A TID71A, TWD710V, TWD731VE TWD1620G TWD1630G TWD1630P TWD1630V TWD610G TWD610P TWD610V TWD610V, TWD630VE TWD630ME TWD630VE TWD710G TWD710P TWD710V TWD730ME TWD730ME, TWD731ME TWD731ME TWD731VE TWD740GE TWD740VE |
| Application | Aftercooler Aftercooler, SN1201090022- Induction Manifold and Intercooler Repair Kit Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Thermostat and Water Pump Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B Water Pump and Thermostat Housing: C |
| Specification | |
| Descriptions | (471635) |
