Turbocharger 3802193

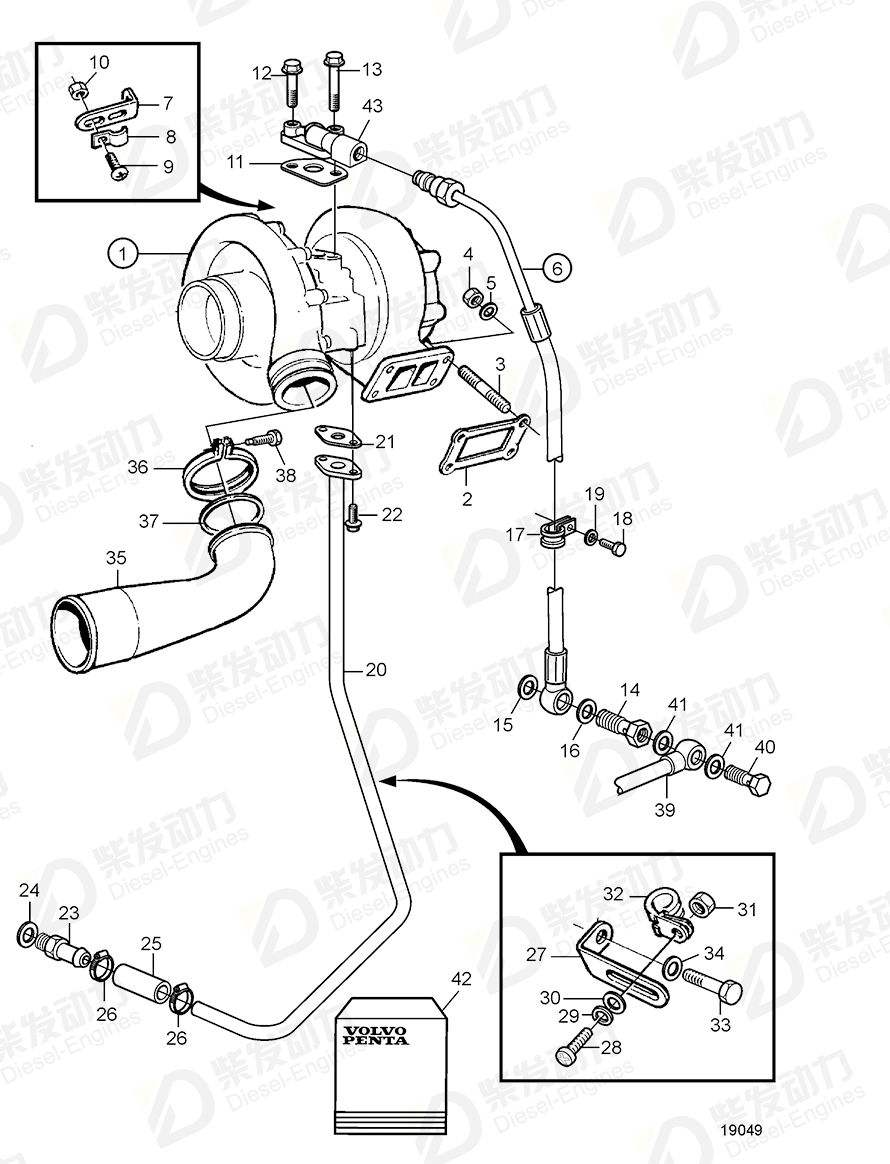

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802193 | 1 | SNXXXX325132-, (3832533) |
| 2 | Gasket | 8194365 | 1 | |
| 3 | Stud | 8194545 | 4 | |
| 4 | Flange lock nut | 8194568 | 4 | |
| 5 | Washer | 940097 | 4 | |
| 6 | Pressure hose | 3832967 | 1 | |
| 7 | Bracket | 965559 | 1 | |
| 8 | Clamp | 968200 | 1 | |
| 9 | Cross recessed screw | 950046 | 1 | |
| 10 | Hexagon nut | 955825 | 1 | Late type |
| 11 | Plane gasket | 420641 | 1 | |
| 12 | Flange screw | 946173 | 1 | |
| 13 | Flange screw | 945444 | 1 | |
| 14 | Hollow screw | 479464 | 1 | |
| 15 | Gasket | 942703 | 1 | |
| 16 | Gasket | 11998 | 1 | |
| 17 | Clamp | 952626 | 1 | |
| 18 | Cross recessed screw | 950045 | 1 | |
| 19 | Spring washer | 941906 | 1 | |
| 20 | Oil return pipe | 3832966 | 1 | |
| 21 | Plane gasket | 420643 | 1 | |
| 22 | Flange screw | 945444 | 2 | |
| 23 | Nipple | 941875 | 1 | |
| 24 | Gasket, plug | 18677 | 1 | |
| 25 | Hose | 466328 | 1 | |
| 26 | Hose clamp | 994559 | 2 | |
| 27 | Bracket | 965560 | 1 | |
| 28 | Cross recessed screw | 950046 | 1 | |
| 29 | Spring washer | 941906 | 1 | |
| 30 | Washer | 955893 | 1 | |
| 31 | Hexagon nut | 955825 | 1 | Late type |
| 32 | Clamp | 952632 | 1 | Late type |
| 35 | Connecting pipe | 865121 | 1 | |
| 36 | V-clamp | 3183622 | 1 | |
| 37 | Sealing ring | 1542781 | 1 | |
| 38 | Hexagon screw | 949335 | 1 | |
| 39 | Delivery pipe, fuel inj. pump | 866721 | 1 | |
| 40 | Hollow screw | 969299 | 1 | |
| 41 | Gasket | 11994 | 2 | |
| 42 | Gasket kit | 876354 | 1 | |
| 43 | Flange | 8192268 | 1 |
| Item | Part Name | Part No. |
| 1 | Turbocharger 3802193 | 3802193 |
| Details | |
| Engine model | TAD1031GE TAD1032GE |
| Application | Repair Kits: C Turbocharger |
| Specification | |
| Descriptions | (3832533) SNXXXX325132-, (3832533) |
