Bearing shield 1543901

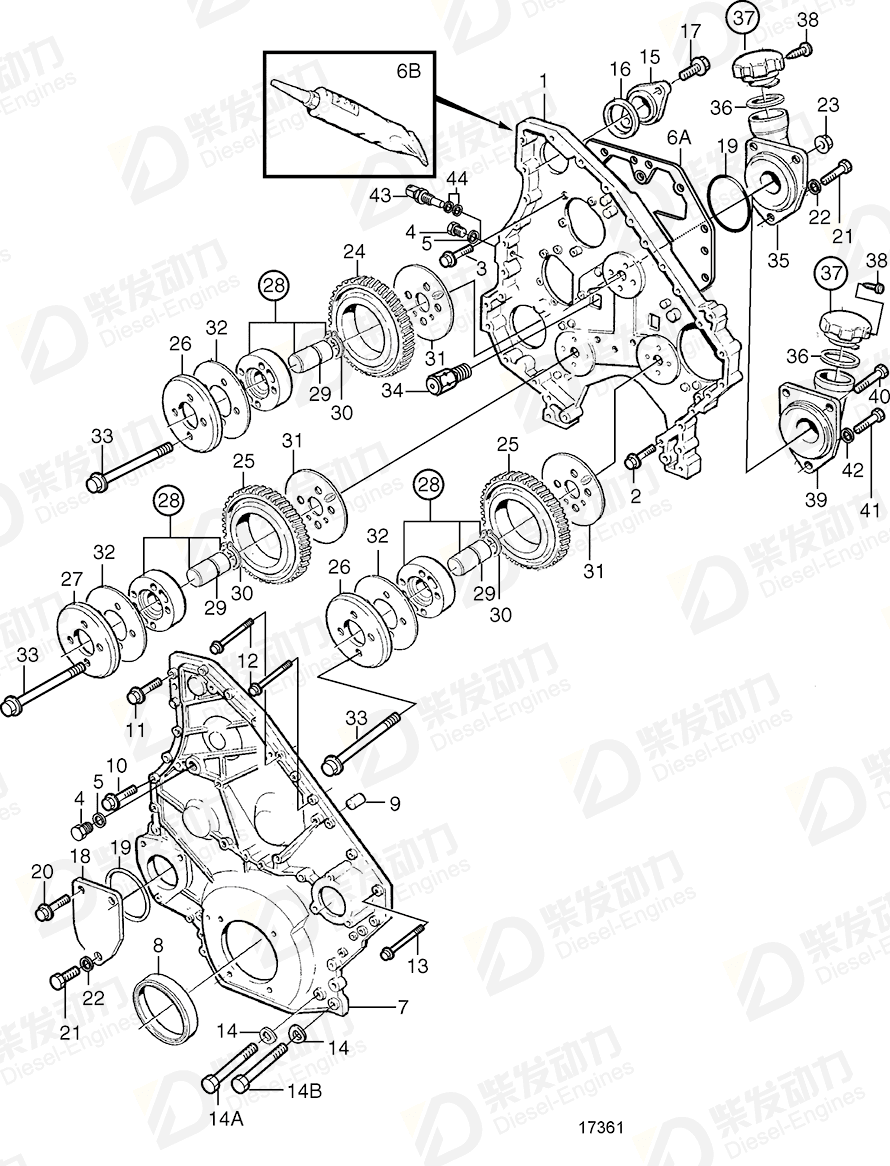

| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear casing | 1543510 | 1 | |
| 2 | Flange screw | 978267 | 1 | |
| 3 | Flange screw | 978266 | 18 | |
| 4 | Plug | 960632 | 2 | |
| 5 | Gasket | 947624 | 2 | |
| 7 | Timing gear cover | 848784 | 1 | |
| 8 | Sealing ring | 3825169 | 1 | |
| 9 | Guide sleeve | 848843 | 1 | |
| 10 | Flange screw | 946470 | 5 | |
| 11 | Flange screw | 947760 | 13 | M8x40mm |
| 12 | Flange screw | 965182 | 2 | |
| 14 | Spring washer | 941911 | 7 | |
| 15 | Cover | 468093 | 1 | |
| 16 | Sealing ring | 468094 | 1 | |
| 17 | Flange screw | 946329 | 2 | |
| 18 | Cover | 420178 | 2 | |
| 19 | O-ring | 975610 | 2 | For engines without air compressor. |
| 20 | Flange screw | 966368 | 2 | L=110mm |
| 21 | Hexagon screw | 970993 | 2 | L=25mm |
| 22 | Spring washer | 941911 | 2 | |
| 23 | Flange nut | 971097 | 2 | |
| 24 | Idler gear | 1543897 | 1 | |
| 25 | Idler gear | 1543917 | 2 | |
| 26 | Bearing shield | 1543901 | 3 | TH=5,5mm |
| 27 | Bearing shield, idler gear-fuel inj pump | 1556593 | 1 | Always use bearing shield 1556593 at the idler gear-fuel inj pump., TH=7mm yellow-marked |
| 28 | Spindle | 1543799 | 3 | |
| 29 | Pin | 1543597 | 3 | |
| 30 | Retaining ring | 914459 | 3 | |
| 31 | Thrust washer | 1543598 | 3 | |
| 32 | Thrust washer | 1543900 | 3 | |
| 33 | Flange nut | 471513 | 12 | |
| 34 | Nozzle, cylinder block | 862922 | 1 | |
| 35 | Oil filler pipe | 849197 | 1 | |
| 36 | Gasket | 1275379 | 1 | |
| 37 | Oil filler cap | 421753 | 1 | |
| 37 | Oil filler cap | 1275403 | 1 | |
| 38 | Cross recessed screw | 955126 | 1 | |
| 39 | Oil filler pipe, oil filling | 866120 | 1 | For engines equipped with an air compressor. |
| 40 | Flange screw | 966368 | 2 | L=110mm |
| 41 | Hexagon screw | 970993 | 1 | L=25mm |
| 42 | Spring washer | 941911 | 1 | |
| 6A | Sealant | 1161277 | 1 | 20g |
| 6B | Sealant | 1161231 | 1 | 304ml |
| 6B | Sealant | 1161277 | 1 | 20g |
| 14A | Hexagon screw | 971010 | 2 | M14x130mm |
| 14B | Hexagon screw | 971012 | 5 | M14x150mm |
| Item | Part Name | Part No. |
| 26 | Bearing shield 1543901 | 1543901 |
| Details | |
| Engine model | TAD1630P, TWD1630P TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TAD1631G, TAD1631GE TD164KAE TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G, TWD1630G, TAD1630G, TAD1630GE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE |
| Application | Oil Pump, Components Timing Gear Casing and Gears Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B |
| Specification | |
| Descriptions | Always use bearing shield 1556593 at the idler gear-fuel inj pump., SN-2160014650, TH=5,5mm Always use bearing shield 1556593 at the idler gear-fuel inj pump., TH=5,5mm SN2160014651-, TH=5,5mm TH=5,5mm |
