Dipstick 3826903

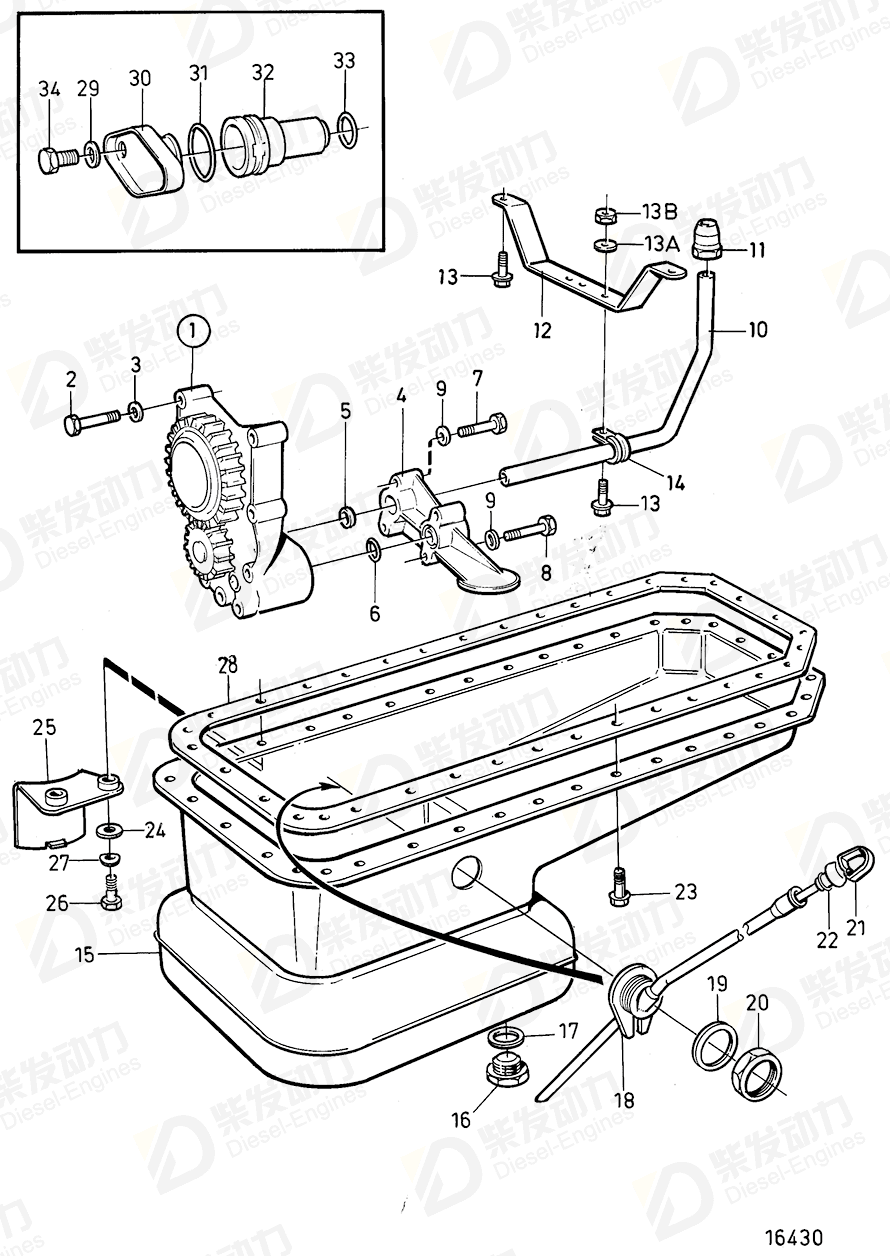

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 470343 | 1 | Repl by 478285 |
| 1 | Oil pump | 478285 | 1 | Repl by 478649 |
| 1 | Oil pump | 478649 | 1 | |
| 2 | Hexagon screw | 955538 | 4 | |
| 3 | Spring washer | 942336 | 4 | |
| 4 | Oil strainer | 479325 | 1 | |
| 5 | Sealing ring | 470263 | 1 | Late type |
| 6 | O-ring | 949659 | 1 | |
| 7 | Hexagon screw | 192546 | 2 | |
| 8 | Hexagon screw | 959795 | 2 | SN2120226440- |
| 9 | Spring washer | 941907 | 4 | |
| 10 | Oil pressure pipe | 470375 | 1 | |
| 11 | Fitting | 466908 | 1 | |
| 12 | Bracket | 470918 | 1 | |
| 13 | Flange screw | 942402 | 3 | |
| 14 | Attaching clamp | 1545432 | 1 | |
| 15 | Sump | 862008 | 1 | |
| 16 | Magnetic plug | 949175 | 1 | |
| 17 | Gasket | 18813 | 1 | |
| 18 | Pipe | 3839163 | 1 | SN2120226440- |
| 19 | Rubber washer | 468947 | 1 | |
| 20 | Hexagon nut | 468948 | 1 | |
| 21 | Dipstick | 3826903 | 1 | SN2120226440- |
| 22 | O-ring, bearing housing | 925054 | 1 | |
| 23 | Flange screw | 942402 | 41 | |
| 24 | Washer | 976944 | 2 | |
| 25 | Bracket | 468653 | 1 | |
| 26 | Hexagon screw | 955525 | 2 | |
| 27 | Spring washer | 941907 | 2 | |
| 28 | Gasket | 478505 | 1 | |
| 29 | Spring washer | 949607 | 2 | |
| 30 | Cover | 471752 | 1 | |
| 31 | O-ring | 949658 | 1 | (925061) early type |
| 32 | Reduction valve | 471707 | 1 | |
| 33 | Sealing ring | 469846 | 1 | |
| 34 | Hexagon screw | 940100 | 2 | |
| 13A | Spring washer | 941907 | 1 | |
| 13B | Hexagon nut | 955826 | 1 |
| Item | Part Name | Part No. |
| 21 | Dipstick 3826903 | 3826903 |
| Details | |
| Engine model | TAD1230G, TD1210G, TWD1210G, TWD1211G TAD1230P, TD121GP-87, TWD1210P, TWD1211P TAD1231GE, TAD1232GE TD121G-87, TWD1230VE, TWD1231VE TWD1210V, TWD1211V, TAD1230V TWD1230ME |
| Application | Lubricating System, Later Production Lubricating System, Later Production: A Lubricating System, Later Production: B Lubricating System: A Lubricating System: B |
| Specification | |
| Descriptions | (3825310) SN2120226440- SNXXXXXXXXXX/226440-, (3825310) |
