O-ring 948981

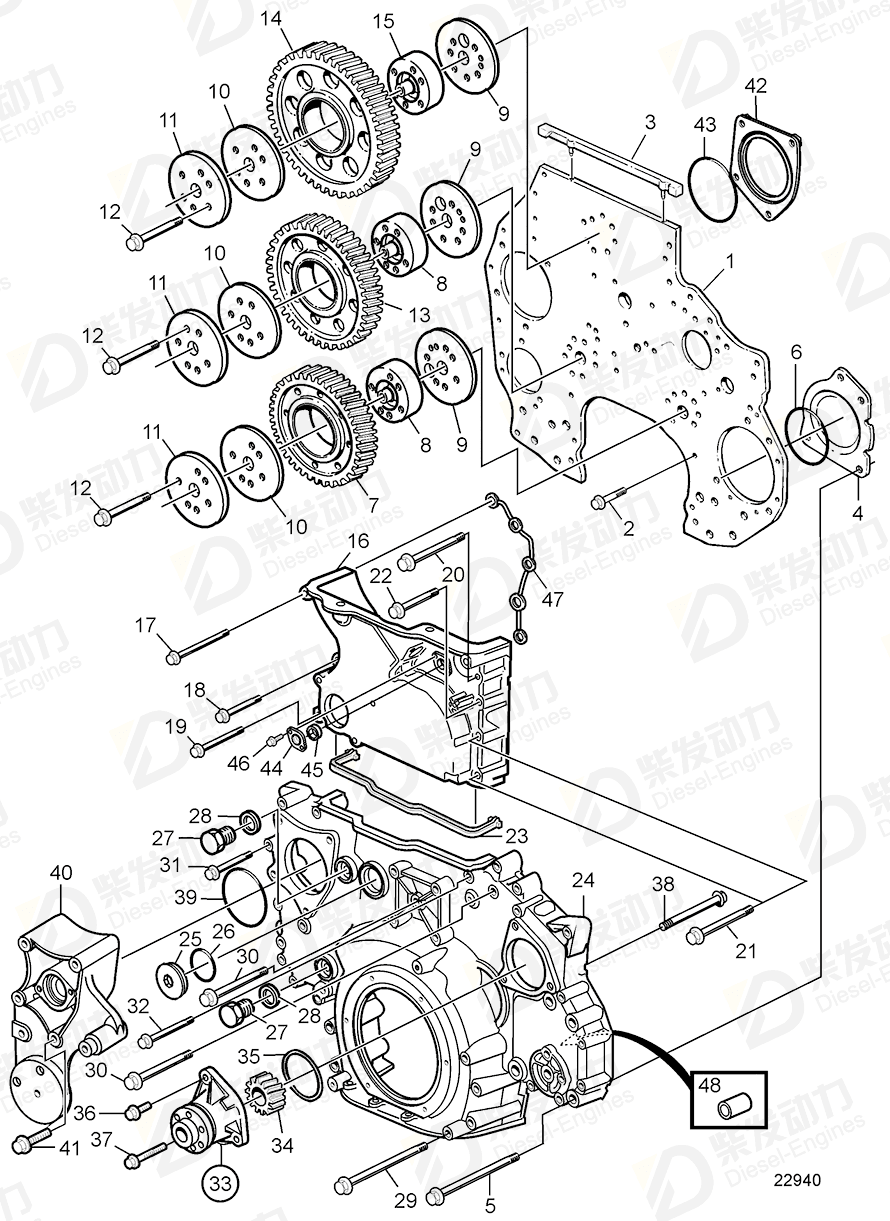

| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear plate | 8170561 | 1 | Replaced by 21383522 |
| 1 | Timing gear plate | 21383522 | 1 | |
| 2 | Flange screw | 946470 | 17 | |
| 3 | Seal | 20489341 | 1 | |
| 4 | Cover | 3828662 | 1 | (8170237) |
| 5 | Flange screw | 965197 | 4 | |
| 6 | O-ring | 949736 | 1 | |
| 7 | Idler gear | 8170193 | 1 | |
| 8 | Hub | 8170219 | 2 | |
| 9 | Thrust washer | 8170220 | 3 | |
| 10 | Thrust washer | 3184865 | 3 | |
| 11 | Bearing shield | 3184868 | 3 | |
| 12 | Flange screw | 1547886 | 18 | |
| 13 | Idler gear | 8170195 | 1 | |
| 14 | Idler gear | 8170197 | 1 | |
| 15 | Hub | 8170199 | 1 | |
| 16 | Timing gear cover | 20512768 | 1 | Replaced by 20713791 |
| 16 | Timing gear cover | 20713791 | 1 | |
| 17 | Flange screw | 968553 | 1 | L=115mm |
| 18 | Flange screw | 965182 | 3 | |
| 19 | Flange screw | 965183 | 1 | |
| 20 | Flange screw | 965190 | 1 | |
| 21 | Flange screw | 947790 | 2 | |
| 22 | Flange screw | 965223 | 1 | L=75mm |
| 23 | Sealing strip | 20714247 | 1 | (20526706) |
| 24 | Timing gear cover | 3835799 | 1 | Replaced by timing gear cover 21122283, companion flange 21243814 and 2 pcs screw 3595265. |
| 24 | Timing gear cover | 21122283 | 1 | |
| 25 | Plug | 467367 | 1 | |
| 26 | Gasket | 469328 | 1 | |
| 27 | Plug | 960632 | 2 | |
| 28 | Gasket | 948884 | 2 | |
| 29 | Flange screw | 973096 | 4 | |
| 30 | Flange screw | 947790 | 2 | |
| 31 | Flange screw | 965181 | 1 | |
| 31 | Flange screw | 965217 | 11 | L=65mm |
| 32 | Flange screw | 965183 | 1 | |
| 33 | Driving device | 8193986 | 1 | |
| 35 | O-ring | 967344 | 1 | |
| 36 | Flange screw | 946752 | 1 | |
| 37 | Flange screw | 965190 | 1 | |
| 38 | Flange screw | 3184837 | 1 | For driving device. mounted from the opposite side through the fuel pump. |
| 39 | O-ring | 948981 | 1 | |
| 40 | Bracket | 3826898 | 1 | |
| 41 | Flange screw | 973967 | 4 | |
| 42 | Cover | 1556208 | 1 | |
| 43 | O-ring | 948888 | 1 | |
| 44 | Plug | 3964803 | 1 | |
| 45 | Sealing ring | 20555696 | 1 | (421629) |
| 46 | Flange screw | 946440 | 2 | |
| 47 | Seal | 3830184 | 1 | |
| 48 | Pivot pin | 1547940 | 1 |
| Item | Part Name | Part No. |
| 39 | O-ring 948981 | 948981 |
| Details | |
| Engine model | TAD1240GE TAD1240GE, TAD1241GE, TAD1242GE TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TD30A TD610M TD610V, TWD610V TD61A, TD61AW TD61ACE, TD61AG, TD61AP, TID61AG TD630ME TD630VE TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD610P TWD630ME TWD630VE |
| Application | Oil Filter Housing Oil Filter Housing with Installation Components Oil Filter Housing: A Oil Filter Housing: B Oil Filter Housing: C Oil Filter, Alt. Location Repair Kits Timing Gear Housing |
