Piston cooling jet 21665095

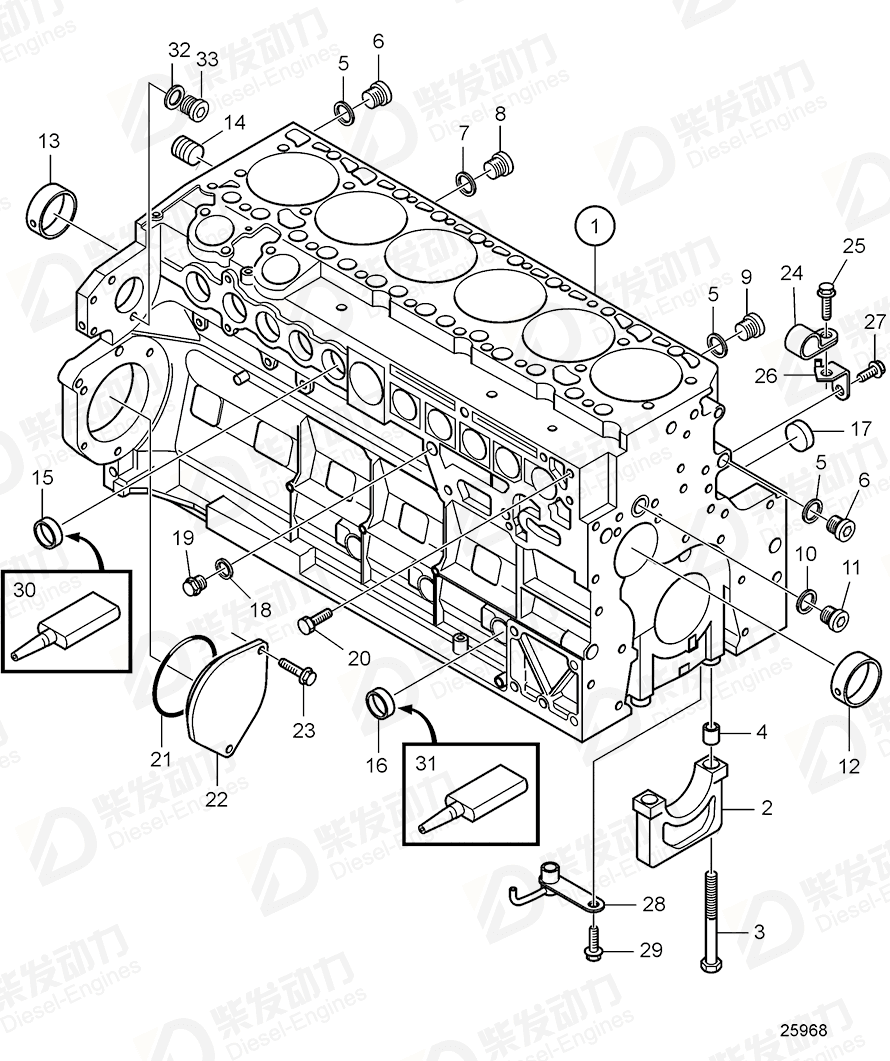

| No. | Part Name | Part Number | Qty | Description |
| 1 | Crankcase | 21294027 | 1 | |
| 1 | Crankcase | 21294044 | 1 | SN-11392002, For PTO K |
| 1 | Crankcase | 22114183 | 1 | SN11392003-, For PTO K |
| 3 | Flange screw | 20860579 | 14 | |
| 4 | Bushing | 20858657 | 14 | |
| 5 | Gasket | 969011 | 3 | |
| 6 | Plug | 11700279 | 1 | M14, (945065) |
| 7 | Gasket | 907137 | 1 | |
| 8 | Plug | 20459195 | 1 | |
| 9 | Plug | 20405716 | 1 | M14 |
| 10 | Gasket | 993680 | 1 | |
| 11 | Plug | 20460024 | 1 | |
| 12 | Bushing | 20858674 | 6 | |
| 13 | Bushing | 20858666 | 1 | |
| 14 | Plug | 20405722 | 1 | M22 |
| 15 | Cap plug | 20405721 | 10 | A45 |
| 16 | Cap plug | 20799589 | 1 | |
| 17 | Plug | 20798056 | 1 | Use locking fluid 1161075 |
| 18 | Gasket | 969011 | 1 | |
| 19 | Plug | 20405716 | 1 | M14 |
| 20 | Six point socket scr | 969408 | 1 | |
| 21 | O-ring | 20412359 | 1 | |
| 22 | Cover | 24426064 | 1 | (20459898) |
| 23 | Flange screw | 993357 | 2 | L=20mm |
| 24 | Clamp | 20859735 | 6 | |
| 25 | Flange screw | 984733 | 15 | |
| 26 | Retaining plate | 21166562 | 1 | |
| 27 | Flange screw | 20859779 | 1 | |
| 28 | Nozzle | 20793619 | 6 | |
| 28 | Piston cooling jet | 21665095 | 6 | Replaced by 20793619 |
| 29 | Flange screw | 975199 | 6 | |
| 30 | Sealant | 1161231 | 1 | 304ml |
| 31 | Locking fluid | 1161075 | 1 | |
| 32 | Gasket | 947281 | 1 | |
| 33 | Filling-in plug, screw plug | 20441859 | 1 |
| Item | Part Name | Part No. |
| 28 | Piston cooling jet 21665095 | 21665095 |
| Details | |
| Engine model | TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE |
| Application | Cylinder Block Lubricating System with Central Oil Sump Lubricating System, Optional Lubricating System, Standard |
| Specification | |
| Descriptions | Replaced by 20793619 |
