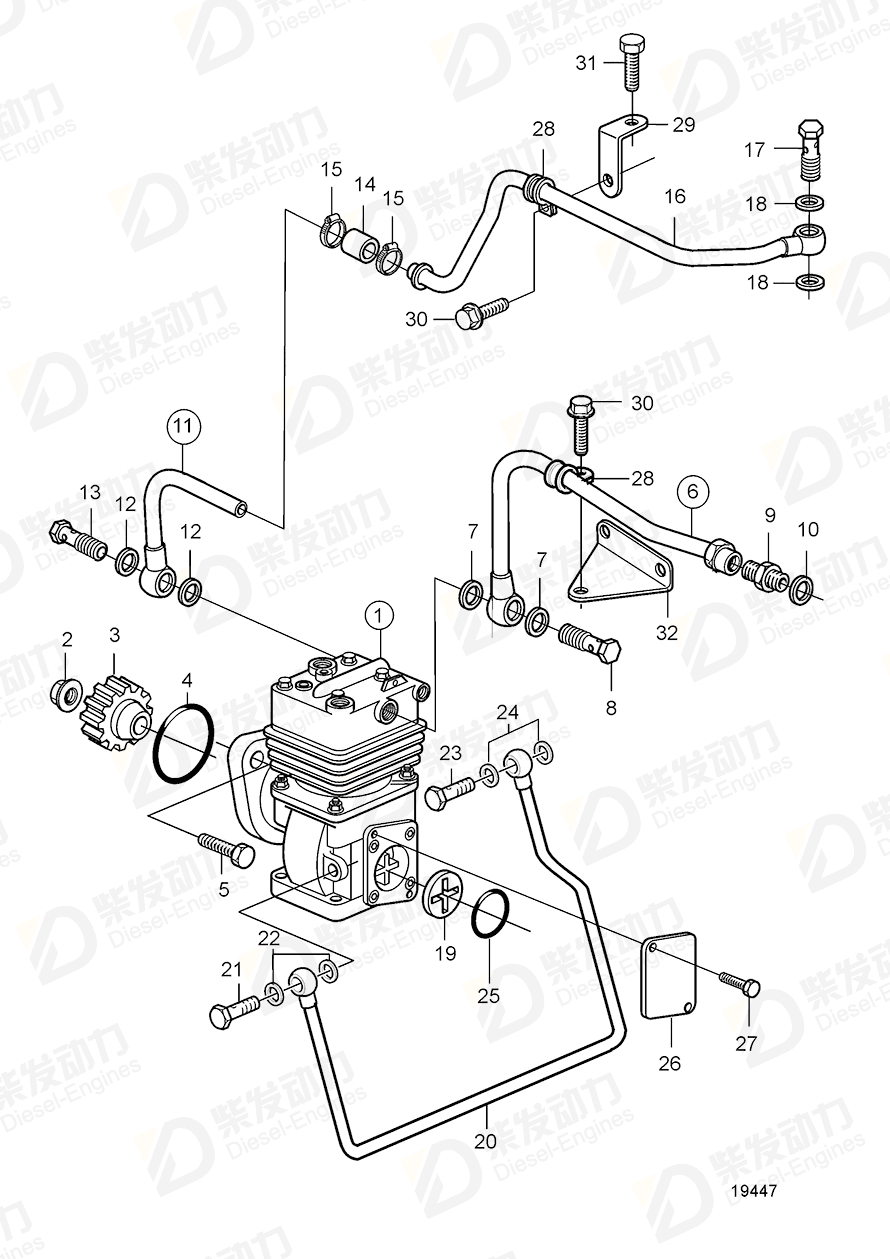

Clamp 20450867
| No. | Part Name | Part Number | Qty | Description |
| 1 | Air compressor | 20513658 | 1 | |
| 2 | Flange nut | 20460474 | 1 | |
| 3 | Gear | 20460484 | 1 | SN-1096823 |
| 3 | Gear | 21018602 | 1 | SN1096824- |
| 4 | O-ring | 20460467 | 1 | |
| 5 | Screw | 20551710 | 3 | |
| 6 | Coolant pipe | 20522559 | 1 | |
| 7 | Gasket | 947622 | 3 | |
| 8 | Hollow screw | 20513688 | 1 | |
| 9 | Nipple | 20460402 | 1 | |
| 10 | Gasket | 947622 | 1 | |
| 11 | Coolant pipe | 20513915 | 1 | |
| 12 | Gasket | 947622 | 2 | |
| 13 | Hollow screw | 20460400 | 1 | |
| 14 | Rubber hose | 20460399 | 1 | |
| 15 | Cable tie | 948211 | 2 | |
| 16 | Water pipe | 20513702 | 1 | |
| 16 | Coolant pipe | 20536802 | 1 | (20513702) |
| 17 | Hollow screw | 20460398 | 1 | |
| 18 | Gasket | 947628 | 2 | |
| 19 | Actuator | 20460491 | 1 | |
| 20 | Oil line | 20513651 | 1 | |
| 21 | Hollow screw | 980973 | 1 | |
| 22 | Gasket | 947281 | 2 | |
| 23 | Hollow screw | 25167 | 1 | |
| 24 | Gasket | 969011 | 2 | |
| 25 | O-ring | 20460466 | 1 | |
| 26 | Cover | 20460465 | 1 | |
| 27 | Hexagon screw | 970944 | 2 | |
| 28 | Clamp | 20450867 | 2 | |
| 29 | Bracket | 20513667 | 1 | |
| 30 | Flange screw | 20405792 | 2 | |
| 31 | Hexagon screw | 20482732 | 1 | |
| 32 | Bracket | 20513665 | 1 |
| Item | Part Name | Part No. |
| 28 | Clamp 20450867 | 20450867 |
| Details | |
| Engine model | TAD520VE TAD560VE, TAD561VE TAD620VE TAD650VE, TAD660VE TAD720VE, TAD721VE, TAD722VE TAD750VE, TAD760VE TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE |
| Application | Air Compressor PTO A 150cm³ Air Compressor PTO A 225cm³ Air Compressor PTO A 300cm³ Air Compressor PTO A 300cm³ (1)&(2) Air Compressor PTO A 300cm³ (1)&(2) with Semi-rotary Pump Air Compressor PTO A 360cm³ Air Compressor PTO A 600cm³ (1)&(2) with Semi-rotary Pump Air Compressor PTO A 720cm³ |
