Nipple 6781778

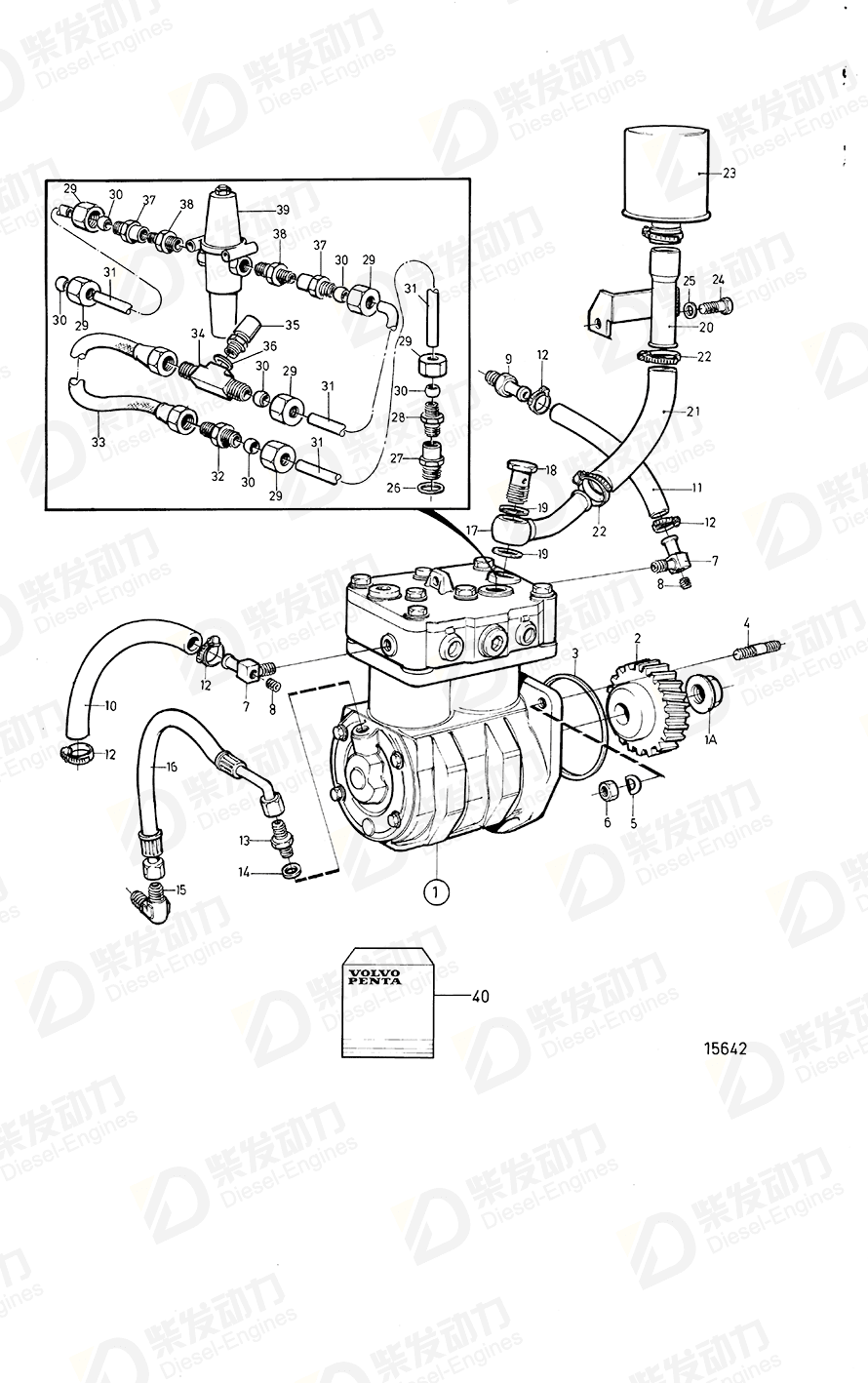

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 1626060 | 1 | |
| 1 | Compressor, exch | 3803405 | 1 | |
| 2 | Gear | 478777 | 1 | |
| 3 | O-ring | 975610 | 1 | For engines without air compressor. |
| 4 | Stud | 953346 | 3 | |
| 5 | Spring washer | 941911 | 3 | |
| 6 | Hexagon nut | 955828 | 3 | |
| 7 | T-nipple | 866161 | 2 | |
| 8 | Plug | 968060 | 2 | |
| 9 | Nipple, air compr. | 479978 | 1 | (961654) |
| 10 | Hose | 941522 | 1 | (13799) L=45mm |
| 11 | Hose | 941522 | 1 | (13799) L=45mm |
| 12 | Hose clamp | 943472 | 4 | |
| 13 | Nipple | 963947 | 1 | |
| 14 | Gasket | 957173 | 1 | |
| 15 | Elbow nipple | 942376 | 1 | |
| 16 | Hose assembly | 977651 | 1 | |
| 17 | Banjo nipple | 1598055 | 1 | |
| 18 | Hollow screw | 191620 | 1 | |
| 19 | Gasket | 957189 | 2 | |
| 1A | Nut | 1698672 | 1 | |
| 20 | Bracket | 1094583 | 1 | |
| 21 | Hose | 967553 | 1 | L=1000mm |
| 22 | Hose clamp | 943474 | 2 | |
| 23 | Air filter | 8152010 | 1 | |
| 24 | Hexagon screw | 955525 | 1 | |
| 25 | Washer | 955894 | 1 | |
| 26 | Gasket | 947628 | 1 | |
| 27 | Reduction nipple | 978381 | 1 | |
| 28 | Nipple | 6781778 | 1 | |
| 29 | Fitting nut | 354145 | 6 | |
| 30 | Sleeve | 967810 | 6 | |
| 32 | Nipple | 354141 | 1 | |
| 33 | Hose assembly | 967736 | 1 | |
| 34 | T-nipple | 948891 | 1 | |
| 35 | Safety valve | 1591738 | 1 | |
| 36 | Gasket | 11996 | 1 | |
| 37 | Nipple | 966419 | 2 | |
| 38 | Reduction nipple | 966459 | 2 | |
| 39 | Valve | 3953945 | 1 | (3126311) |
| 40 | Gasket kit, air compressor | 276183 | 1 |
| Item | Part Name | Part No. |
| 28 | Nipple 6781778 | 6781778 |
| Details | |
| Engine model | TD730ME, TWD730ME, TWD731ME TWD1230ME TWD710P, TAD730P |
| Application | Air Compressor &Wabco &704 Air Compressor Wabco 704 |
