Differential carrier 1523679

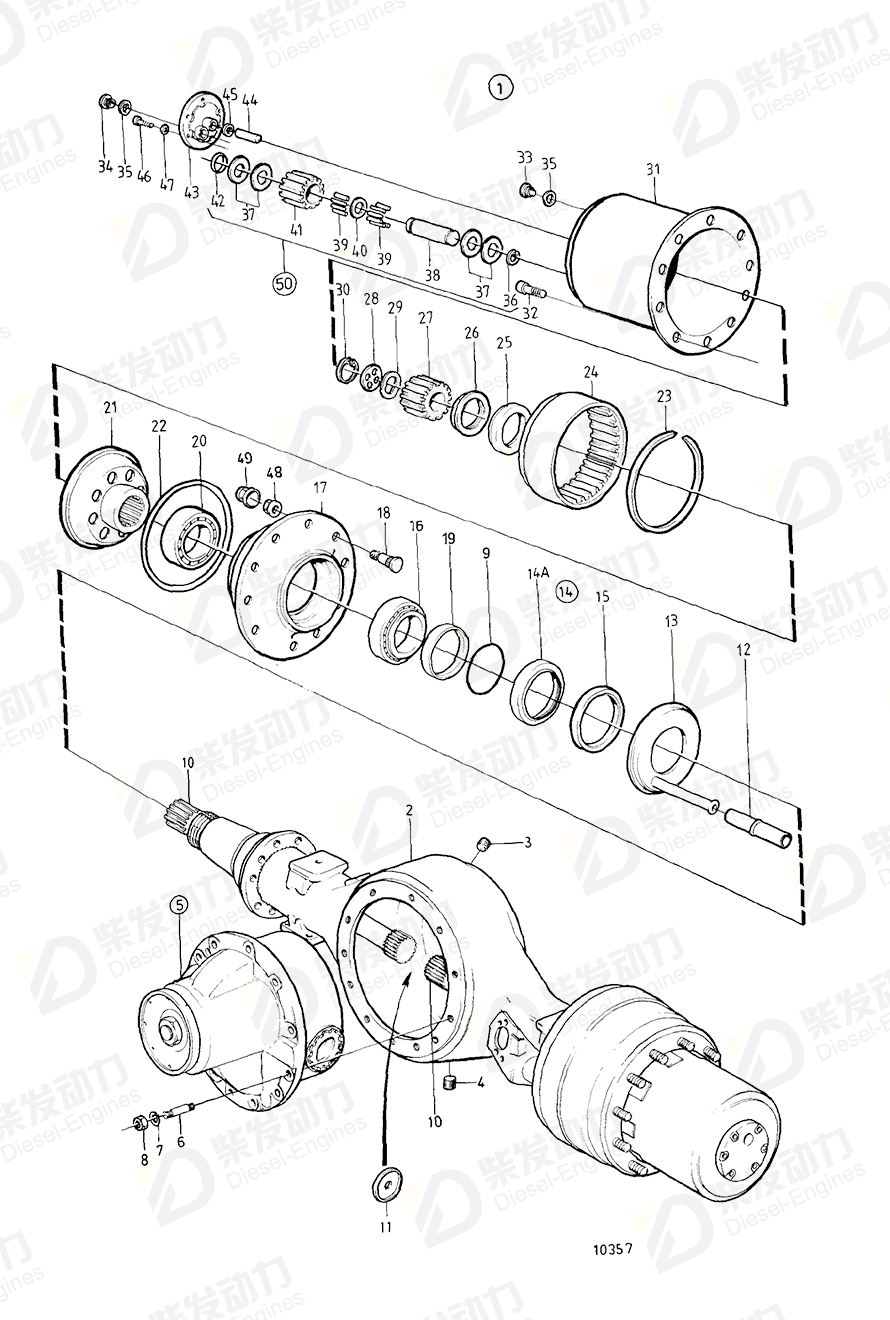

| No. | Part Name | Part Number | Qty | Description |
| 2 | Axle casing | 853860 | 1 | Cylindrical steering. |
| 3 | Magnetic plug | 1524292 | 1 | |
| 4 | Magnetic plug | 1524292 | 1 | |
| 5 | Differential carrier | 1523679 | 1 | Cylindrical steering., Ratio 4,87:1 |
| 6 | Stud | 191636 | 8 | L=82mm |
| 6 | Stud | 1522889 | 2 | L=60mm |
| 6 | Stud | 1522890 | 2 | L=70mm |
| 7 | Spring washer | 941912 | 12 | |
| 8 | Hexagon nut | 961126 | 12 | |
| 9 | O-ring | 852887 | 2 | |
| 10 | Axle shaft | 852890 | 2 | |
| 10 | Wear ring | 854358 | 2 | |
| 12 | Hose | 969015 | 1 | |
| 13 | Oil collector | 852889 | 2 | |
| 14 | Sealing ring kit | 3094251 | 2 | (273394) |
| 16 | Bearing | 184628 | 2 | |
| 17 | Hub | 852884 | 2 | |
| 18 | Wheel stud | 1589009 | 20 | L=111mm,D=27,4mm std d |
| 18 | Wheel stud | 1589010 | 20 | L=111mm,D=27,8mm öd |
| 19 | Wear ring | 852886 | 2 | |
| 20 | Bearing | 184630 | 2 | |
| 21 | Ring gear carrier | 852954 | 2 | |
| 22 | O-ring | 948767 | 2 | |
| 23 | Retaining ring | 1522392 | 2 | |
| 24 | Ring gear | 1522380 | 2 | |
| 25 | Nut | 853080 | 2 | |
| 26 | Nut | 1522384 | 2 | |
| 27 | Sun gear | 1522382 | 2 | |
| 28 | Thrust washer | 1522393 | 2 | |
| 29 | Spring washer | 1522338 | 2 | |
| 30 | Snap ring | 914532 | 2 | |
| 31 | Hub casing | 1522376 | 2 | |
| 32 | Hex. socket screw | 959238 | 4 | |
| 33 | Magnetic plug | 949175 | 2 | |
| 34 | Plug | 946086 | 2 | |
| 35 | Gasket | 957187 | 4 | |
| 36 | Snap ring | 914463 | 8 | Included in gear kit (planet gear kit) 273934 |
| 42 | O-ring | 949721 | 8 | (925062) |
| 43 | Cover | 1523742 | 2 | |
| 44 | Grooved pin | 1523115 | 2 | L=55mm |
| 44 | Grooved pin | 1523116 | 2 | L=60mm |
| 45 | Washer | 955891 | 1 | Replaced by 1pc 843401, 1pc 845851, 1pc 961248. |
| 46 | Hexagon screw | 955294 | 12 | |
| 47 | Spring washer | 941907 | 12 | |
| 48 | Wheel nut | 943491 | 20 | |
| 49 | Cap plug | 1586987 | 20 | |
| 50 | Gear set, planet gear kit | 273934 | 8 | |
| 50 | Brake, left | 854613 | 1 | |
| 50 | Brake, right | 854614 | 1 | |
| 50 | Wheel brake, left | 1081104 | 1 | |
| 50 | Wheel brake, right | 1081105 | 1 | |
| 14A | Sealing | 1522896 | 2 |
| Item | Part Name | Part No. |
| 5 | Differential carrier 1523679 | 1523679 |
| Details | |
| Application | Axle Rear Axle Direction: 853931 Differential Carrier&EV80B. Cylind-rical Fitting. |
| Specification | |
| Descriptions | Cylindrical steering., Ratio 4,87:1 Ratio 4,87:1 |
