Wheel stud 192121

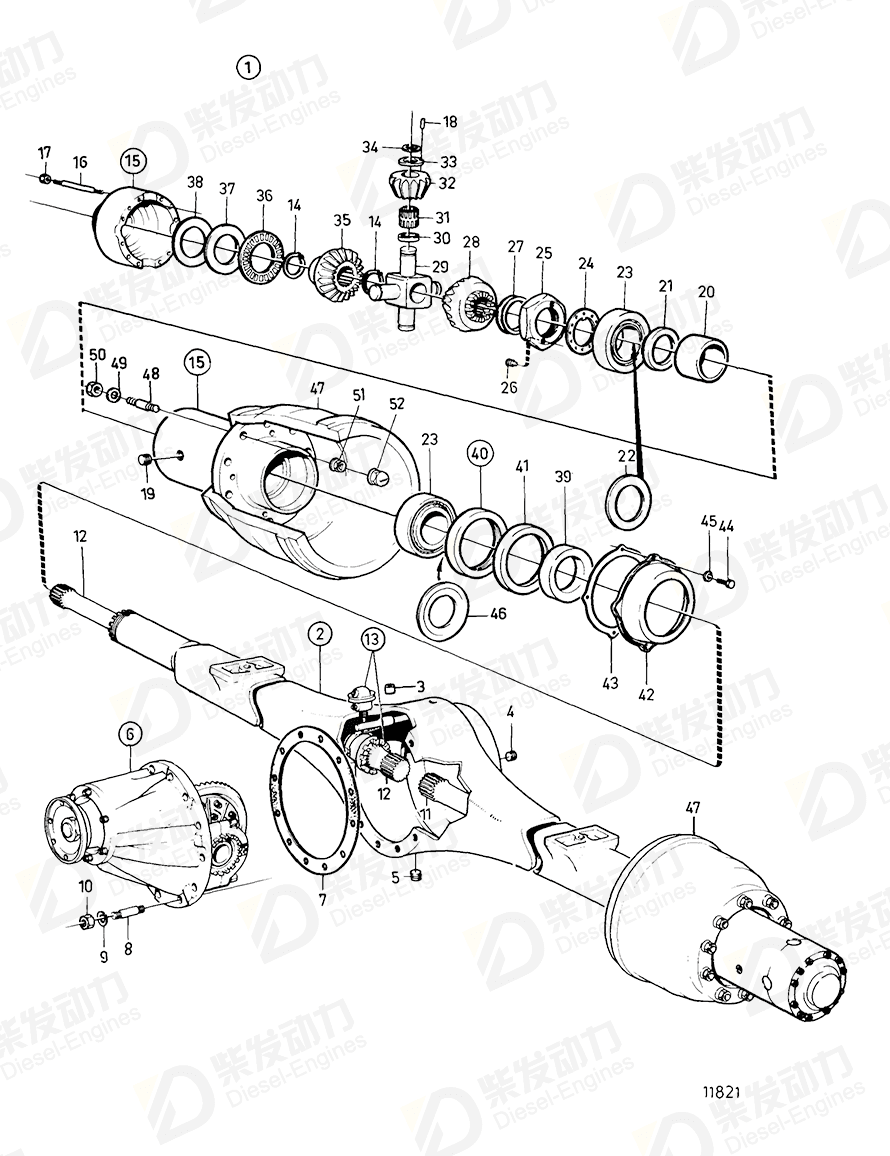

| No. |
Part Name |
Part Number |
Qty |
Description |
| 2 |
Rear axle casing |
1522021 |
1 |
Four point steering., Late type |
| 3 |
Nipple |
384627 |
1 |
|
| 4 |
Magnetic plug |
1524292 |
1 |
|
| 5 |
Magnetic plug |
1524292 |
1 |
|
| 6 |
Differential carrier |
1522435 |
1 |
Ratio 3,07:1 |
| 7 |
Gasket |
309663 |
1 |
|
| 7 |
Gasket |
383958 |
1 |
Late type |
| 8 |
Stud |
191636 |
7 |
L=82mm |
| 8 |
Stud |
953370 |
4 |
L=60mm |
| 8 |
Stud |
953373 |
6 |
|
| 8 |
Stud |
953375 |
2 |
L=80mm early type |
| 8 |
Stud |
1522889 |
2 |
L=60mm |
| 8 |
Stud |
1522890 |
3 |
L=70mm |
| 9 |
Spring washer |
941912 |
12 |
|
| 10 |
Hexagon nut |
961126 |
12 |
|
| 11 |
Axle shaft |
384697 |
1 |
Left spv 1840 |
| 12 |
Axle shaft |
384752 |
1 |
Right SPV 1840 |
| 14 |
Snap ring |
44381 |
4 |
|
| 15 |
Hub kit |
273198 |
2 |
|
| 16 |
Stud |
334376 |
12 |
|
| 17 |
Lock nut |
950354 |
12 |
Fenwal,circuit closes again at 96°C.spec.9969 alt. |
| 18 |
Pin |
942457 |
4 |
|
| 19 |
Magnetic plug |
1524292 |
1 |
|
| 20 |
Spacer sleeve |
334394 |
2 |
|
| 21 |
Spacer ring |
942096 |
2 |
|
| 22 |
Shim |
120612 |
1 |
TJ=0,10mm |
| 22 |
Shim |
120613 |
1 |
TJ=0,35mm |
| 22 |
Shim |
190835 |
1 |
TJ=0,15mm |
| 23 |
Roller bearing |
181086 |
4 |
|
| 24 |
Lock washer |
1523283 |
2 |
|
| 25 |
Nut |
334374 |
2 |
|
| 26 |
Set screw |
951354 |
2 |
|
| 27 |
Shim |
192463 |
1 |
TH=1.00mm |
| 27 |
Shim |
192464 |
1 |
TH=0.35mm |
| 27 |
Shim |
192465 |
1 |
TH=0,10mm |
| 28 |
Gear |
342080 |
2 |
|
| 29 |
Spider |
334368 |
2 |
|
| 30 |
Spacer ring |
334377 |
8 |
|
| 31 |
Needle bearing |
334503 |
8 |
|
| 32 |
Drive gear set |
273170 |
2 |
|
| 33 |
Thrust washer |
1522984 |
8 |
|
| 34 |
O-ring |
948254 |
8 |
|
| 35 |
Gear |
340992 |
2 |
|
| 36 |
Needle bearing |
340999 |
2 |
|
| 37 |
Thrust washer |
340998 |
2 |
|
| 38 |
Adjusting washer |
341000 |
1 |
TH=0,10mm |
| 38 |
Adjusting washer |
341001 |
1 |
TH=0.15mm |
| 39 |
Wear ring |
384190 |
2 |
|
| 40 |
Sealing |
1522896 |
2 |
|
| 40 |
Sealing ring kit |
3094251 |
2 |
(273394) |
| 42 |
Sealing plate |
324447 |
2 |
|
| 43 |
Gasket |
324513 |
2 |
|
| 44 |
Hexagon screw |
955512 |
10 |
|
| 45 |
Washer |
960140 |
10 |
3-6mm², yellow |
| 46 |
Protecting plate |
1522010 |
2 |
|
| 48 |
Wheel stud |
192121 |
20 |
|
| 49 |
Washer |
192123 |
20 |
|
| 50 |
Hexagon nut |
192413 |
20 |
|
| 51 |
Wheel nut |
943491 |
20 |
|
| 52 |
Cap plug |
1586987 |
20 |
|
| Item |
Part Name |
Part No. |
| 48 |
Wheel stud 192121 |
192121 |
| Details |
| Application |
Axle Rear Axle Direction |
