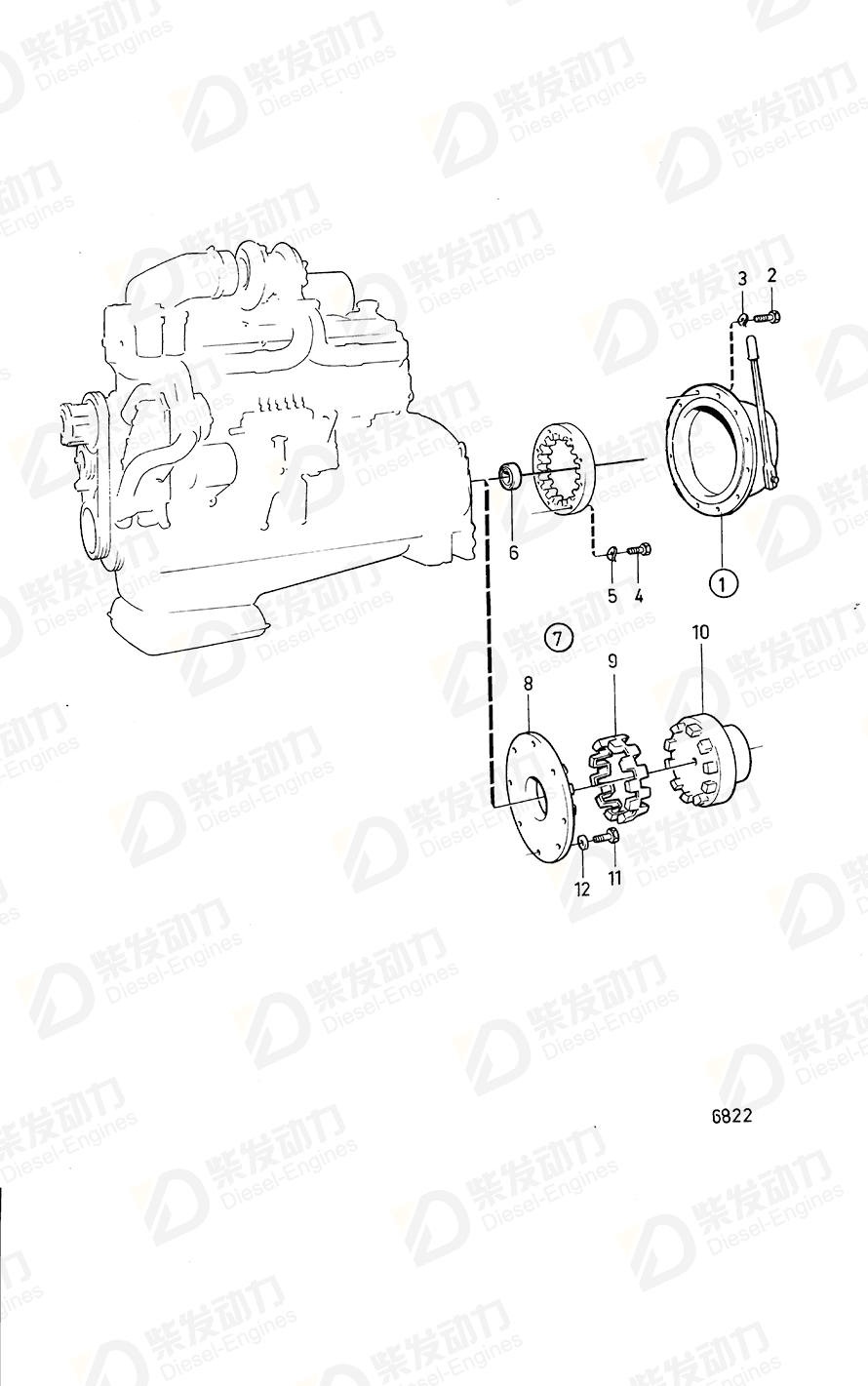

Friction clutch 849582
| No. | Part Name | Part Number | Qty | Description |
| 1 | Clutch | 842520 | 1 | Late production-rubber element bushing without int. thread., D42A PP spec.16053, 867638., Alt |
| 1 | Clutch | 846730 | 1 | Repl by 862734 |
| 1 | Friction clutch | 849582 | 1 | Repl by 862733 |
| 1 | Power take-off | 862733 | 1 | AP214 |
| 1 | Power take-off | 3841933 | 1 | Replaced by PT143 no 3841933., AP314, ratio 1:1 |
| 2 | Hexagon screw | 940160 | 12 | SAE1-2 |
| 3 | Spring washer | 941909 | 12 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 4 | Hexagon screw | 955561 | 8 | |
| 4 | Hexagon screw | 955562 | 8 | L=38mm |
| 5 | Spring washer | 940280 | 8 | |
| 6 | Ball bearing | 849219 | 1 | (847324) |
| 8 | Clutch flange | 845622 | 1 | |
| 9 | Rubber element | 845621 | 1 | |
| 10 | Clutch half | 845620 | 1 | |
| 11 | Hexagon screw | 960692 | 8 | |
| 12 | Spacer washer | 949869 | 8 |
| Item | Part Name | Part No. |
| 1 | Friction clutch 849582 | 849582 |
| Details | |
| Engine model | TD121G TD121G-87 TD121GP-87 TID121FG TID121K TID121K-87 TID121KGP TID121KP TID121KP-87 TID121KPB-87 TID121LP TID121LP-87 TID121LPB-87 |
| Application | CLUTCH AND INSTALLATION COMPONENTS Clutch and Installation Components: A Clutch and Installation Components: B Clutch and Installation Components: C Clutch and Installation Components: TD120HP86 Clutch and Installation Components: TD121GPB-87 |
| Specification | |
| Descriptions | Repl by 862733 |
