Actuator 848990

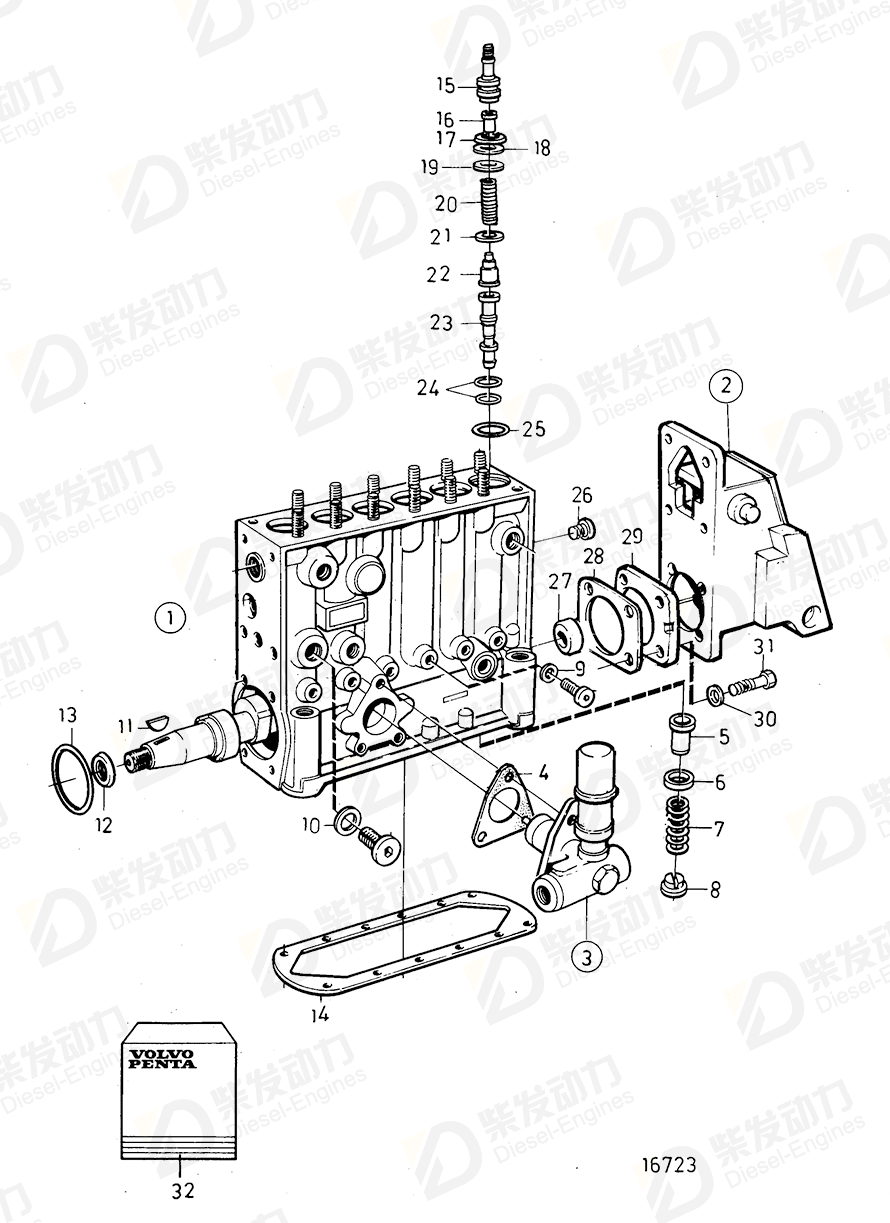

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 864636 | 1 | |
| 2 | Actuator | 848990 | 1 | Replaced by actuator 3825454., AGB 250 |
| 2 | Actuator | 866167 | 1 | GAC. ACB275D |
| 2 | Actuator | 3825454 | 1 | (866167) |
| 3 | Feed pump | 244391 | 1 | Repl by 1699140 |
| 3 | Feed pump | 1699140 | 1 | |
| 4 | Gasket | 863370 | 1 | |
| 5 | Control sleeve | 240782 | 6 | |
| 6 | Spring disc | 239984 | 6 | |
| 7 | Compression spring | 244731 | 6 | (847277) |
| 8 | Spring disc | 244685 | 6 | (6211952) |
| 9 | Gasket | 18836 | 6 | |
| 10 | Gasket | 240017 | 1 | Spec.867473 alt |
| 11 | Key | 35168 | 1 | |
| 12 | Camshaft seal | 864299 | 1 | |
| 13 | O-ring | 243299 | 1 | |
| 14 | Gasket | 1699581 | 1 | |
| 15 | Retainer | 244636 | 6 | |
| 16 | Peg | 240971 | 6 | |
| 17 | Washer | 240972 | 1 | TH=0.2mm |
| 18 | Washer | 240973 | 1 | TH=0.5mm |
| 19 | O-ring | 240001 | 6 | |
| 20 | Compression spring | 240969 | 6 | |
| 21 | Sealing washer | 239993 | 6 | |
| 22 | Delivery valve | 846188 | 6 | (240423) |
| 23 | Pump element | 846576 | 6 | |
| 24 | O-ring | 240422 | 12 | |
| 27 | Sealing ring | 240811 | 1 | |
| 28 | Gasket | 1698168 | 1 | (240037) |
| 30 | Spring washer | 941906 | 4 | |
| 32 | Repair kit | 845240 | 1 | See group 10A |
| Item | Part Name | Part No. |
| 2 | Actuator 848990 | 848990 |
| Details | |
| Engine model | TAD1230G, TD1210G, TAD1231GE, TAD1232GE TD710G, TWD710G, TAD730G TD71AG, TID71AG |
| Application | Electronic Speed Control Electronic Speed Control: A Electronic Speed Control: AMBAC Fuel Injection Pump Fuel Injection Pump, Components: 864636,864680 Fuel Injection Pump, Components: 864850 Fuel Injection Pump: 849594 Fuel Injection Pump: 849595 |
| Specification | |
| Descriptions | *replaced by governor 866167 + mounting kit 866169., SN-2071058842 AGB250A-6 Replaced by actuator 3825454., AGB 250 Replaced by actuator 3825454., AGB 250A-6 Replaced by governor 866167 + mounting kit 866169., AGB250A-6 Replaced by governor 866167 + mounting kit 866169., Mounting kit 848989 should be used for mounting of actuator 848990., SN-2071058842 See group 2D |
