Actuator solenoid 241897

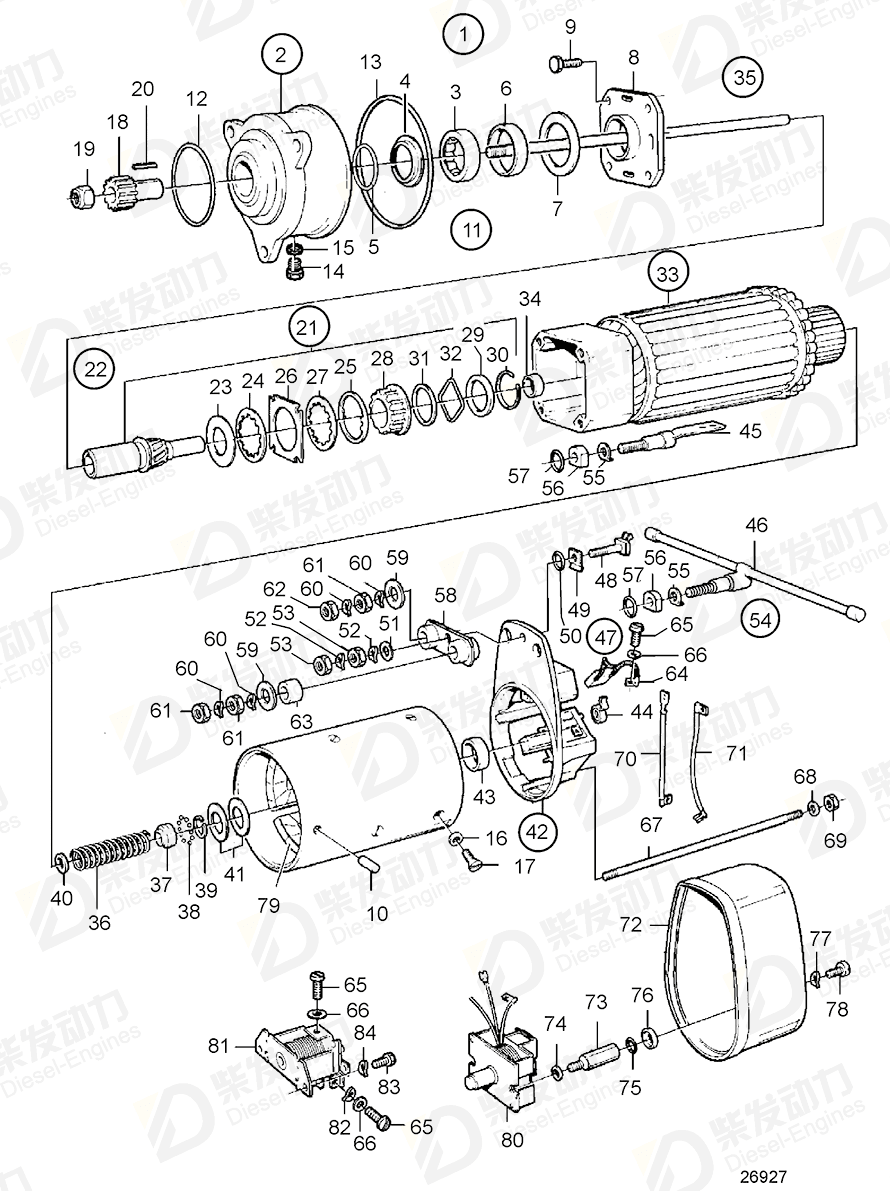

| No. | Part Name | Part Number | Qty | Description |
| 1 | Starter motor | 847307 | 1 | 24V |
| 2 | Bearing shield | 240449 | 1 | |
| 3 | Needle bearing | 240453 | 1 | |
| 4 | Sealing ring | 240450 | 1 | |
| 5 | Spring | 240451 | 1 | |
| 6 | Bearing bushing | 240455 | 1 | |
| 7 | Spacer washer | 240457 | 1 | |
| 8 | Bearing shield | 240456 | 1 | |
| 9 | Screw | 848095 | 4 | |
| 11 | Small parts kit | 273517 | 1 | |
| 17 | Screw | 847984 | 8 | |
| 18 | Starter pinion | 11994396 | 1 | (6643675) |
| 19 | Nut | 1696396 | 1 | |
| 20 | Key | 240473 | 1 | |
| 21 | Disc clutch | 244539 | 1 | |
| 22 | Small parts kit | 6644414 | 1 | |
| 33 | Anchor | 6212614 | 1 | (6212706) |
| 34 | Needle bearing | 243091 | 1 | |
| 35 | Rotor shaft | 6643680 | 1 | |
| 36 | Compression spring | 6212617 | 1 | |
| 37 | Stop ring | 6212622 | 1 | |
| 38 | Ball | 184453 | 11 | (844412) |
| 39 | Lock ring | 240471 | 1 | |
| 40 | Washer | 844410 | 1 | |
| 41 | Shim | 240486 | 1 | TH=0.3mm |
| 41 | Shim | 240487 | 1 | TH=0.5mm |
| 41 | Shim | 241904 | 1 | TH=0.2mm |
| 42 | Armature bearing | 844408 | 1 | |
| 43 | Bearing bushing | 240481 | 1 | |
| 44 | Brush spring | 240478 | 4 | |
| 45 | Terminal screw | 240479 | 1 | |
| 46 | Electric cable | 240480 | 1 | |
| 47 | Small parts kit | 6643672 | 1 | |
| 54 | Small parts kit | 3094494 | 2 | |
| 64 | Brush set | 3094854 | 1 | |
| 65 | Screw | 244218 | 4 | |
| 65 | Screw | 6643679 | 4 | |
| 66 | Spring washer | 941905 | 8 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 67 | Bolt | 6643677 | 1 | |
| 67 | Bolt | 6643678 | 3 | |
| 68 | Washer | 955892 | 4 | |
| 69 | Hexagon nut | 955781 | 4 | |
| 70 | Cable | 847987 | 1 | |
| 71 | Cable | 847988 | 1 | |
| 72 | Protecting casing | 240496 | 1 | |
| 73 | Bolt | 243713 | 2 | |
| 74 | Washer | 6212619 | 2 | (240498) |
| 75 | Gasket | 72202 | 2 | |
| 76 | Washer | 72201 | 2 | |
| 77 | Spring washer | 941906 | 2 | |
| 78 | Cross recessed screw | 956094 | 2 | |
| 79 | Field winding | 6212612 | 1 | (6212705) |
| 80 | Starter solenoid | 241898 | 1 | |
| 81 | Actuator solenoid | 241897 | 1 | |
| 82 | Washer | 940090 | 3 | |
| 83 | Hexagon screw | 955294 | 2 | |
| 84 | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 81 | Actuator solenoid 241897 | 241897 |
| Details | |
| Engine model | TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD610V, TWD610V, TD630VE, TWD630VE |
| Application | STARTER Starter Motor, Components STARTER MOTOR: 843510 Starter: 240347 Starter: 843510 Starter: 870870 |
Tags: Actuator solenoid, Volvo Penta, 241897
