Adjusting washer 120656

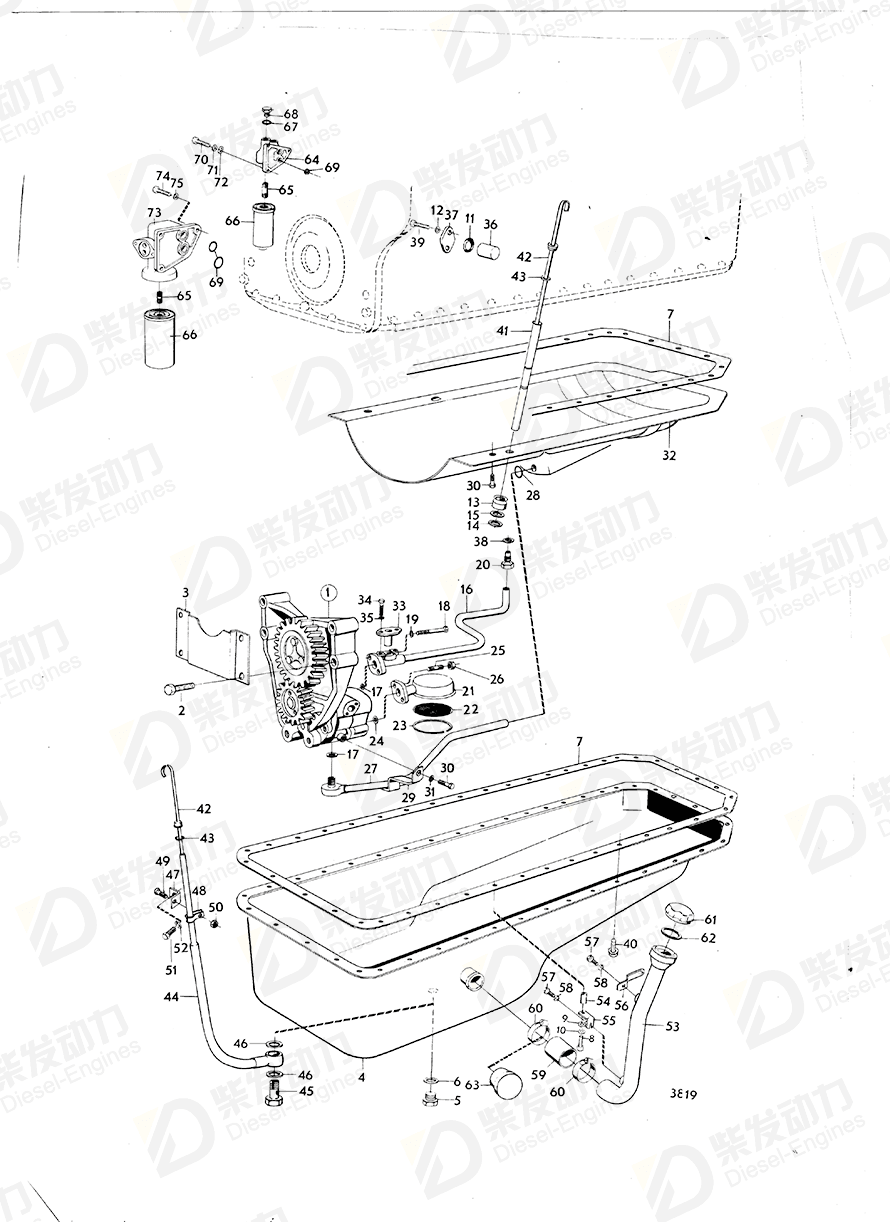

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 821119 | 1 | |
| 2 | Hexagon screw | 955538 | 4 | |
| 3 | Baffle | 421404 | 1 | |
| 4 | Sump | 821341 | 1 | D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt., Earlier production without side-mounted oil filler pipe |
| 4 | Oil pan | 823613 | 1 | Spec. 867279, 867058 MOXXXXX/15607- |
| 5 | Magnetic plug | 192538 | 1 | |
| 6 | Gasket | 957185 | 1 | |
| 7 | Gasket | 421025 | 2 | |
| 8 | Hexagon screw | 955525 | 1 | |
| 9 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 10 | Spring washer | 941907 | 1 | |
| 11 | O-ring | 949721 | 1 | (925062) |
| 12 | Spring washer | 941906 | 2 | |
| 13 | V-ring | 821988 | 1 | |
| 14 | Washer | 943056 | 1 | |
| 15 | Adjusting washer | 120656 | 1 | |
| 16 | Delivery pipe | 821488 | 1 | D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt |
| 17 | O-ring | 947061 | 2 | |
| 18 | Hexagon screw | 192548 | 2 | |
| 19 | Spring washer | 941907 | 2 | |
| 20 | Fitting | 822056 | 1 | D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt |
| 21 | Oil strainer | 844392 | 1 | |
| 22 | Wire gauze | 414621 | 1 | |
| 23 | Retaining ring | 118125 | 1 | |
| 24 | O-ring | 948229 | 1 | Early type |
| 25 | Stud | 942596 | 2 | |
| 26 | Lock nut | 950353 | 2 | |
| 27 | Oil bilge pipe | 824307 | 1 | D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt |
| 28 | O-ring | 947060 | 1 | |
| 29 | Bracket | 821282 | 1 | |
| 30 | Hexagon screw | 955523 | 3 | |
| 31 | Spring washer | 941907 | 3 | |
| 32 | Baffle plate | 822144 | 1 | D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt |
| 33 | Reduction valve | 875506 | 1 | |
| 34 | Hexagon screw | 940158 | 2 | |
| 35 | Spring washer | 941906 | 2 | |
| 36 | Sealing plug | 821919 | 1 | |
| 37 | Cap | 821655 | 1 | |
| 38 | Sealing ring | 822851 | 1 | |
| 39 | Hexagon screw | 940100 | 2 | |
| 40 | Flange screw | 944012 | 36 | |
| 41 | Tube | 836179 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 42 | Oil dipstick | 843331 | 1 | Spec. 867279, 867058 MOXXXXX/15607-, (823017) |
| 43 | O-ring | 955982 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 53 | Oil filler pipe | 822885 | 1 | Used on crankshaft 829999., Alt |
| 54 | Spacer sleeve | 807183 | 1 | Used on crankshaft 829999. |
| 55 | Anchorage | 822887 | 1 | Used on crankshaft 829999 |
| 56 | Anchorage | 822889 | 1 | MO41075/XXXXX- |
| 57 | Hexagon screw | 955524 | 2 | Used on crankshaft 829999. |
| 58 | Spring washer | 941907 | 2 | |
| 59 | Hose | 942711 | 1 | Used on crankshaft 829999., L=55mm |
| 60 | Hose clamp | 943478 | 2 | 62 (951794) |
| 61 | Oil filler cap | 420292 | 1 | |
| 62 | Gasket | 940096 | 1 | |
| 63 | Rubber cap | 837651 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053., Alt |
| 64 | Housing | 421216 | 1 | |
| 65 | Nipple | 423067 | 1 | |
| 66 | Oil filter | 4785974 | 1 | |
| 67 | Gasket | 957185 | 2 | |
| 68 | Plug | 192114 | 2 | |
| 69 | O-ring | 947061 | 2 | |
| 70 | Hexagon screw | 955535 | 3 | |
| 71 | Spring washer | 942336 | 3 | |
| 72 | Washer | 940097 | 3 |
| Item | Part Name | Part No. |
| 15 | Adjusting washer 120656 | 120656 |
| Details | |
| Engine model | D100A, D100B D70B TD70B |
| Application | Lubricating System, Spec.9755, 9762, 9803, 9946, 867017, 867024,867045 Lubricating System: A Lubricating System: B |
| Specification | |
| Descriptions | D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt |
