Adjusting washer 422620

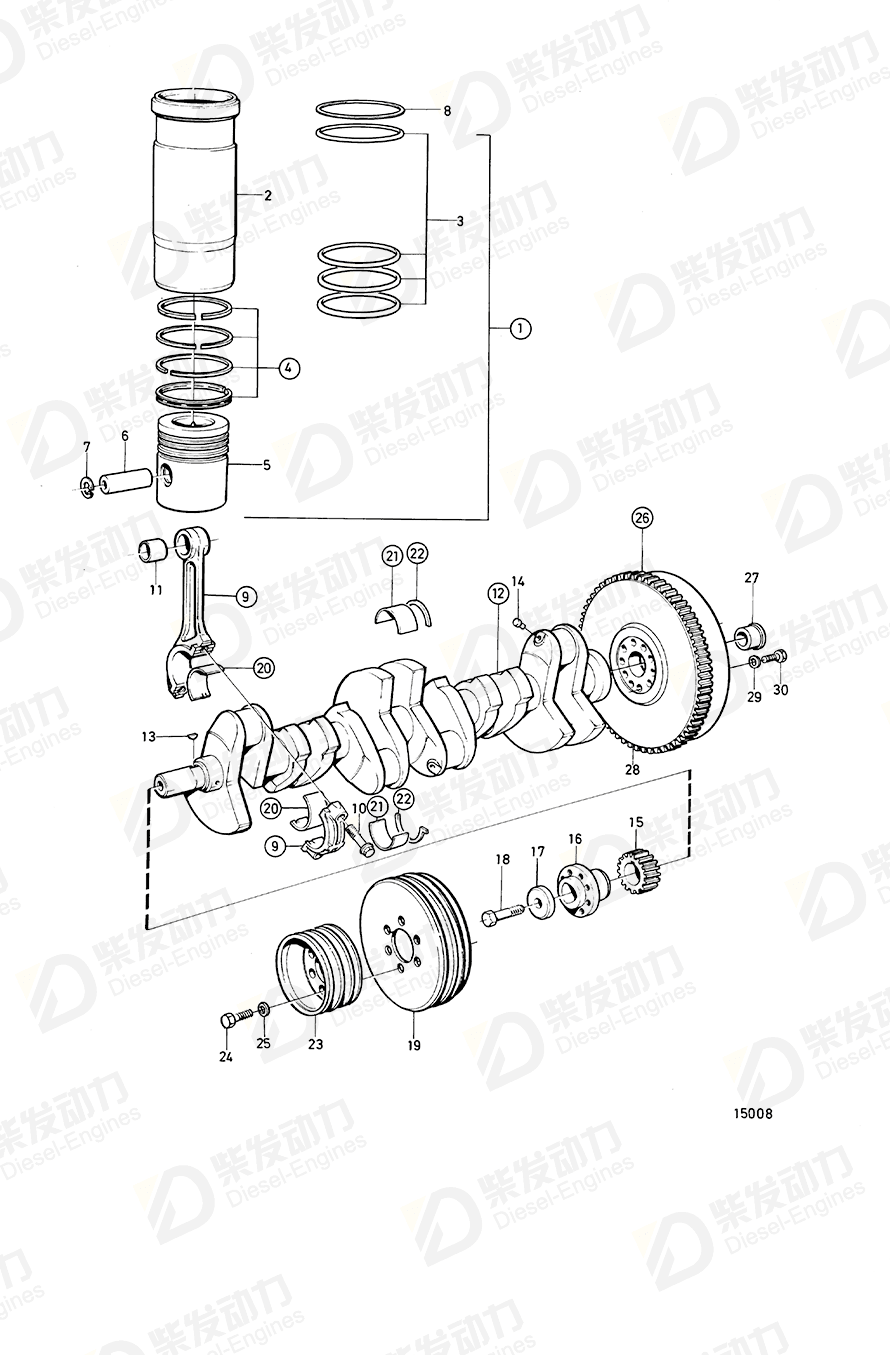

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 275647 | 6 | |
| 3 | Sealing ring kit | 271157 | 6 | |
| 4 | Piston ring kit | 276197 | 6 | |
| 6 | Gudgeon pin | 479874 | 6 | |
| 6 | Gudgeon pin | 8194586 | 6 | |
| 7 | Snap ring | 914529 | 12 | |
| 8 | Adjusting washer | 422619 | 1 | TH=0.20mm |
| 8 | Adjusting washer | 422620 | 1 | TH=0.30mm |
| 8 | Adjusting washer | 422621 | 1 | TH=0.50mm |
| 9 | Connecting rod | 422706 | 6 | |
| 10 | Flange screw | 1545479 | 12 | (417464) |
| 11 | Bushing | 422708 | 6 | |
| 12 | Crankshaft | 848767 | 1 | SN-2100280596 |
| 12 | Crankshaft, 14 hole for flywheel | 3825697 | 1 | Classified |
| 12 | Crankshaft | 3826009 | 1 | (3825697) classified |
| 13 | Woodruff key | 422253 | 1 | |
| 14 | Plug | 978130 | 6 | |
| 15 | Gear | 423080 | 1 | |
| 16 | Hub | 424958 | 1 | |
| 17 | Washer | 422124 | 1 | |
| 18 | Hexagon screw | 941494 | 1 | |
| 19 | Vibration damper | 866135 | 1 | |
| 20 | Big-end bearing kit | 270124 | 6 | Std D |
| 20 | Big-end bearing kit | 270125 | 6 | 0,25mm u.s |
| 20 | Big-end bearing kit | 270126 | 6 | 0,50mm u.s |
| 20 | Big-end bearing kit | 270127 | 6 | U.S=0,75mm |
| 20 | Big-end bearing kit | 270128 | 6 | U.S=1,00mm |
| 20 | Big-end bearing kit | 270129 | 6 | U.S=1,25mm |
| 21 | Main bearing kit | 270438 | 7 | |
| 21 | Main bearing kit | 270439 | 7 | 0.25mm u.s |
| 21 | Main bearing kit | 270440 | 7 | 0.50mm u.s |
| 21 | Main bearing kit | 270441 | 7 | 0.75mm u.s |
| 21 | Main bearing kit | 270442 | 7 | 1.00mm u.s |
| 21 | Main bearing kit | 270443 | 7 | 1.25mm u.s |
| 22 | Thrust washer kit | 276758 | 1 | Std D |
| 22 | Thrust washer kit | 276759 | 1 | 0,10mm o.s |
| 22 | Thrust washer kit | 276760 | 1 | 0,20mm o.s |
| 22 | Thrust washer kit | 276761 | 1 | 0,30mm o.s |
| 23 | V-belt pulley | 468187 | 1 | HC50x3 grooves |
| 23 | Pulley | 844591 | 1 | Late type |
| 23 | Pulley | 844615 | 1 | For BB115 with Volvo Penta reduction reverse gear. |
| 24 | Hexagon screw | 955549 | 6 | AQ170B MOXXXX/87713-., L=45mm |
| 24 | Hexagon screw | 955552 | 12 | L=64mm |
| 25 | Spring washer | 941909 | 6 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 26 | Flywheel | 846700 | 1 | TD CO gear |
| 26 | Flywheel | 849328 | 1 | Clark |
| 26 | Flywheel, 10 hole | 864402 | 1 | |
| 26 | Flywheel | 864555 | 1 | ZF HN500 Conv |
| 26 | Flywheel, 14 hole | 864997 | 1 | |
| 26 | Flywheel, 14 hole | 866776 | 1 | Clark 34000, C5000, C8000 |
| 26 | Flywheel, 14 hole | 3825104 | 1 | Clark36000, SN2100279498- |
| 26 | Flywheel, 10 hole | 3825718 | 1 | For Clark 34000, 36000 with 16'' flexplate. |
| 26 | Flywheel, 14 hole | 3825924 | 1 | ZFWG180, 200HN500 |
| 26 | Flywheel, 14 hole | 3825926 | 1 | Twin Disc 6 F-1509-1 |
| 27 | Bushing | 849326 | 1 | Clark |
| 27 | Bushing | 864557 | 1 | ZF HN500 Conv |
| 28 | Ring gear | 420794 | 1 | For gear box Voith. |
| 29 | Washer | 467773 | 10 | |
| 30 | Hexagon screw | 478717 | 10 | For gear box Voith. |
| 30 | Hexagon screw | 941570 | 14 |
| Item | Part Name | Part No. |
| 8 | Adjusting washer 422620 | 422620 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC DH10A TAD1030G TAD1030GE TAD1030P TAD1030V TAD1031GE TAD1032GE TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD100GP TD100GP-85 TD100HPB-87 TD1010G, TWD1010G TD1030ME TD1030VE THD102KB THD102KD TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KPB-87 TWD1030ME TWD1031VE |
| Application | Crank Mechanism Crank Mechanism: A Crank Mechanism: B Crank Mechanism: C Crankshaft and Related Parts: A Crankshaft and Related Parts: B Crankshaft and Related Parts: C CRANKSHAFT AND RELATED PARTS: D Crankshaft and Related Parts: TD100GGP-87 Crankshaft and Related Parts: TD100HP87 Crankshaft and Related Parts: TID100KP87 |
| Specification | |
| Descriptions | TH = 0,30mm TH=0,30mm TH=0.30mm |
