Adjusting washer 465395

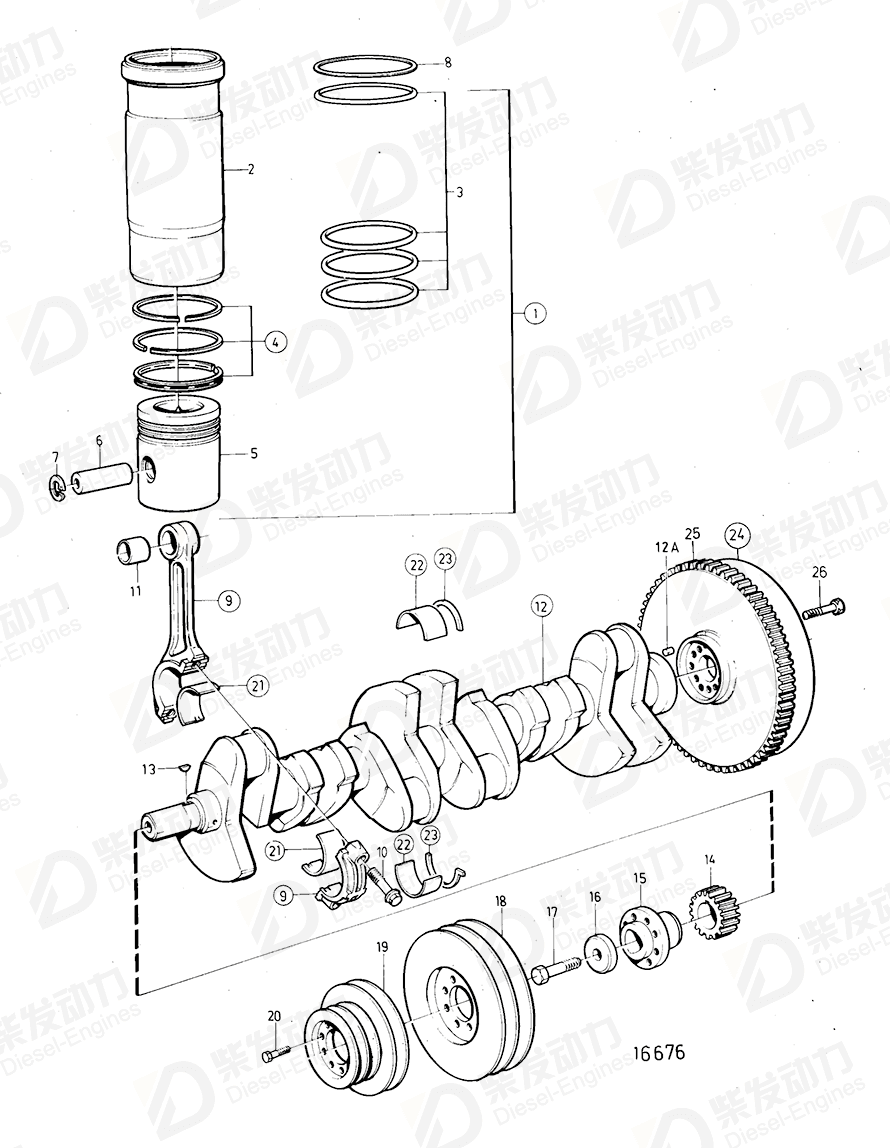

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 876199 | 6 | |
| 3 | Sealing ring kit | 271161 | 6 | |
| 4 | Piston ring kit | 270713 | 6 | |
| 6 | Gudgeon pin | 420988 | 6 | |
| 7 | Retaining ring | 914523 | 12 | |
| 8 | Adjusting washer | 465394 | 1 | TH=0.20mm |
| 8 | Adjusting washer | 465395 | 1 | TH=0.30mm |
| 8 | Adjusting washer | 465396 | 1 | TH=0.40mm |
| 9 | Connecting rod | 465812 | 6 | |
| 10 | Flange screw | 465815 | 12 | |
| 11 | Bearing | 465816 | 6 | (420257) |
| 12 | Crankshaft | 420662 | 1 | |
| 12 | Crankshaft | 8192122 | 1 | |
| 13 | Woodruff key | 422253 | 1 | |
| 14 | Gear, crankshaft | 471528 | 1 | |
| 15 | Hub | 465779 | 1 | |
| 16 | Washer | 420124 | 1 | |
| 17 | Flange screw | 470366 | 1 | |
| 18 | Oscillation damper | 3825339 | 1 | (421515) |
| 19 | Pulley | 4772117 | 1 | 3-groove |
| 20 | Flange screw | 471529 | 8 | |
| 21 | Big-end bearing kit | 270139 | 6 | Std D |
| 21 | Big-end bearing kit | 270140 | 6 | U.S=0,25mm |
| 21 | Big-end bearing kit | 270141 | 6 | U.S=0,51mm |
| 21 | Big-end bearing kit | 270142 | 6 | U.S=0,76mm |
| 21 | Big-end bearing kit | 270143 | 6 | U.S=1,01mm |
| 22 | Main bearing kit | 271230 | 7 | Std D (270426) |
| 22 | Main bearing kit | 271231 | 7 | 0.25mm u.s (270427) |
| 22 | Main bearing kit | 271232 | 7 | 0.50mm u.s (270428) |
| 22 | Main bearing kit | 271233 | 7 | 0.75mm u.s (270429) |
| 22 | Main bearing kit | 271234 | 7 | 1.00mm u.s (270430) |
| 22 | Main bearing kit | 271235 | 7 | 1.25mm u.s (270431) |
| 23 | Thrust washer kit | 276751 | 1 | Std D |
| 23 | Thrust washer kit | 276752 | 1 | 0.1mm o.s |
| 23 | Thrust washer kit | 276753 | 1 | 0.2mm o.s |
| 24 | Flywheel | 864260 | 1 | |
| 24 | Flywheel | 3825732 | 1 | |
| 25 | Ring gear | 420314 | 1 | |
| 26 | Flange screw | 465825 | 6 | |
| 12A | Pin | 950677 | 1 |
| Item | Part Name | Part No. |
| 8 | Adjusting washer 465395 | 465395 |
| Details | |
| Engine model | TD60A TD60B TD60D TD60D-83 TD610G, TWD610G TD610M TD610V, TWD610V TD61A, TD61AW TD630ME, TWD630ME TD630VE, TWD630VE TD640VE TID60D TID60DG TWD610P |
| Application | Crank Mechanism Crank Mechanism, SN-2061106089 Crank Mechanism, SN-2061106089: A Crank Mechanism, SN-2061106089: B Crank Mechanism, SN2061106090- Crank Mechanism, SN2061106090-: A Crank Mechanism, SN2061106090-: B Crank Mechanism: A Crank Mechanism: B Crank Mechanism: C Crankshaft and Related Parts Crankshaft and Related Parts: A Crankshaft and Related Parts: B |
| Specification | |
| Descriptions | TH = 0,30mm TH = 0.30mm TH=0,30mm TH=0.30mm Use only when repairing., TH=0,30mm |
