Adjusting washer 466878

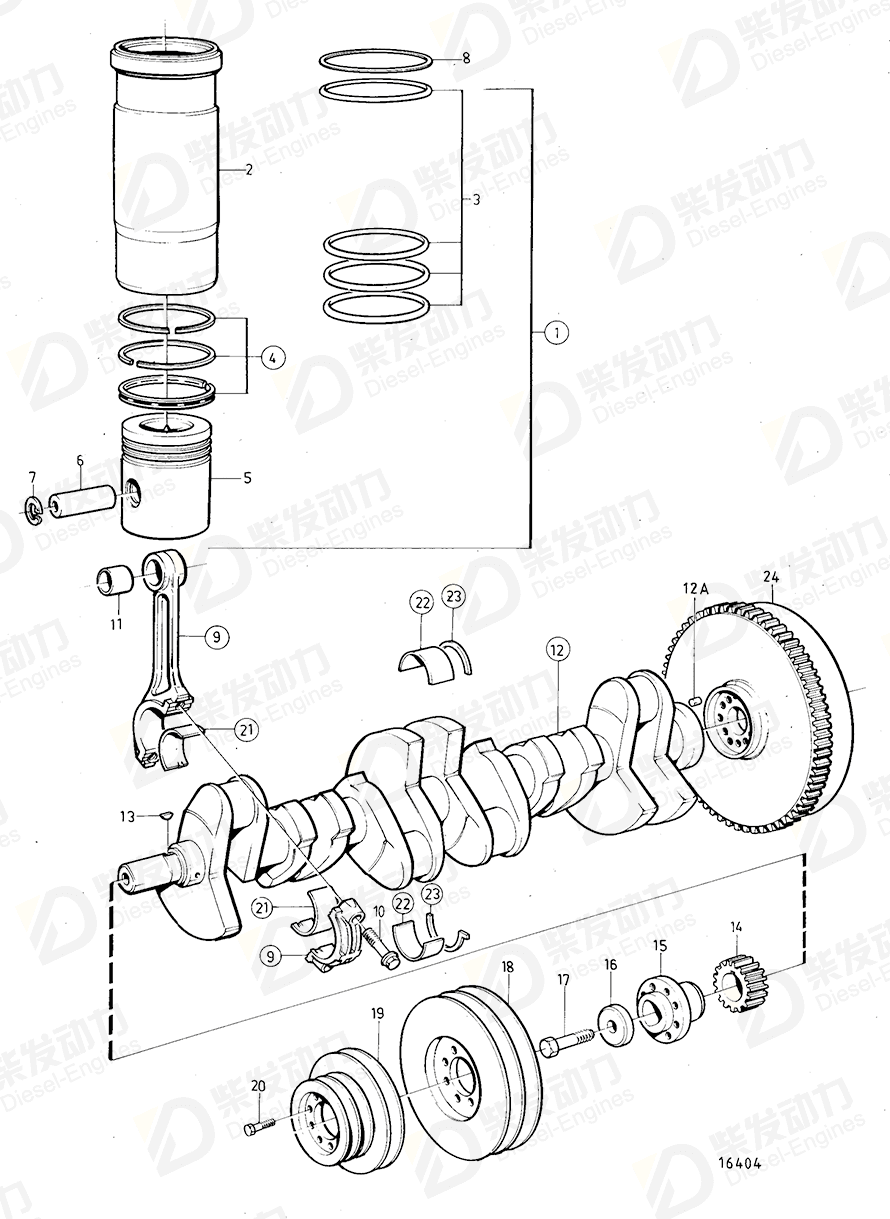

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 876548 | 6 | SN-2071097292 |
| 3 | Sealing ring kit | 271159 | 6 | |
| 4 | Piston ring kit | 876542 | 6 | |
| 6 | Gudgeon pin | 3978588 | 6 | Std D |
| 7 | Snap ring | 914525 | 12 | |
| 8 | Adjusting washer | 466114 | 1 | TH=0.20mm |
| 8 | Adjusting washer | 466183 | 1 | TH=0.30mm |
| 8 | Adjusting washer | 466184 | 1 | TH=0.50mm |
| 8 | Adjusting washer | 466878 | 1 | Use only when repairing., SN-2071097292, TH=0,12mm |
| 9 | Connecting rod | 864936 | 6 | (471523) |
| 10 | Flange screw | 465815 | 12 | |
| 11 | Bushing | 471364 | 6 | (466454) |
| 12 | Crankshaft | 477870 | 1 | Inlcuded woodruff key 422253., SN2071078954-SN2071097292 |
| 13 | Woodruff key | 422253 | 1 | |
| 14 | Gear, crankshaft | 471528 | 1 | |
| 15 | Hub | 465779 | 1 | |
| 16 | Washer | 420124 | 1 | |
| 17 | Flange screw | 470366 | 1 | |
| 18 | Vibration damper | 888019 | 1 | For twin alternators. |
| 18 | Oscillation damper | 3825339 | 1 | (421515) |
| 19 | Pulley | 4772117 | 1 | 3-groove |
| 20 | Flange screw | 471529 | 8 | |
| 21 | Big-end bearing kit | 270115 | 6 | Std D |
| 21 | Big-end bearing kit | 270116 | 6 | 0,25mm u.s |
| 21 | Big-end bearing kit | 270117 | 6 | 0,50mm u.s |
| 21 | Big-end bearing kit | 270118 | 6 | 0,75mm u.s |
| 21 | Big-end bearing kit | 270119 | 6 | 1,00mm u.s |
| 21 | Big-end bearing kit | 270120 | 6 | 1,25mm u.s |
| 22 | Main bearing kit | 270432 | 7 | STD D |
| 22 | Main bearing kit | 270433 | 7 | 0.25 MM U.S |
| 22 | Main bearing kit | 270434 | 7 | 0.50 MM U.S |
| 22 | Main bearing kit | 270435 | 7 | 0.75 MM U.S |
| 22 | Main bearing kit | 270436 | 7 | 1.00 MM U.S |
| 22 | Main bearing kit | 270437 | 7 | 1.25 MM U.S |
| 23 | Thrust washer kit | 276754 | 1 | STD D |
| 23 | Thrust washer kit | 276755 | 1 | 0.1 MM O.S |
| 23 | Thrust washer kit | 276756 | 1 | 0.2 MM O.S |
| 23 | Thrust washer kit | 276757 | 1 | 0.3 MM O.S |
| 12A | Pin | 950677 | 1 |
| Item | Part Name | Part No. |
| 8 | Adjusting washer 466878 | 466878 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TD70G TD70G-83 TD710G TD71A, TD71AW, TID71A TD71A, TID71A, TWD710V TD71AG, TID71AG TD730ME, TWD730ME, TWD731ME TD730VE, TWD731VE TID70G TWD710G TWD710P TWD730ME |
| Application | Crank Mechanism Crank Mechanism SN-2071097292: A Crank Mechanism SN-2071097292: B Crank Mechanism SN-2071097292: C Crank Mechanism, SN-2071078953 Crank Mechanism, SN2071078954- Crank Mechanism: A Crank Mechanism: B Crank Mechanism: C Crankshaft and Related Parts Crankshaft and Related Parts: A Crankshaft and Related Parts: B |
| Specification | |
| Descriptions | TH=0,12mm TH=0.12mm Use only when repairing., SN-2071097292, TH=0,12mm Use only when repairing., TH=0,12mm |
Related Products
Tags: Adjusting washer, Volvo Penta, 466878
