Adjusting washer 468272

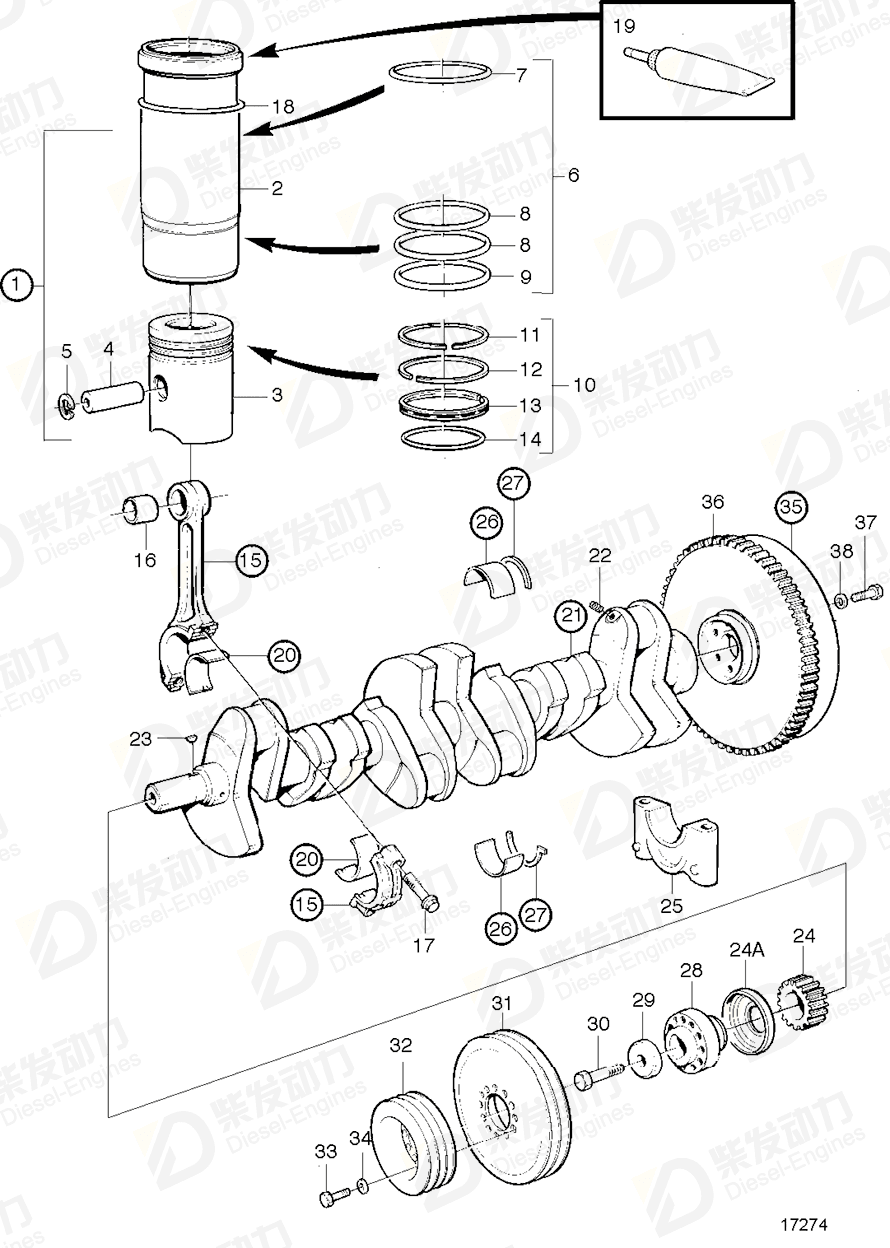

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 275635 | 6 | |
| 4 | Gudgeon pin | 8193837 | 6 | (479875) |
| 5 | Snap ring | 423124 | 12 | |
| 6 | Gasket kit | 270950 | 6 | |
| 6 | Sealing ring kit | 271155 | 6 | SN-120136970 |
| 10 | Piston ring kit | 270603 | 6 | |
| 15 | Connecting rod | 846864 | 6 | |
| 16 | Bushing | 470434 | 6 | |
| 17 | Flange screw | 1545479 | 12 | (417464) |
| 18 | Adjusting washer | 468271 | 1 | TH=0.20mm |
| 18 | Adjusting washer | 468272 | 1 | TH=0.30mm |
| 18 | Adjusting washer | 468273 | 1 | TH=0.50mm |
| 19 | Sealant | 1161277 | 1 | 20g |
| 20 | Big-end bearing kit | 270130 | 6 | Std D |
| 20 | Big-end bearing kit | 270131 | 6 | 0,25mm u.s |
| 20 | Big-end bearing kit | 270132 | 6 | 0,50mm u.s |
| 20 | Big-end bearing kit | 270133 | 6 | U.S=0,75mm |
| 20 | Big-end bearing kit | 270134 | 6 | U.S=1,00mm |
| 20 | Big-end bearing kit | 270135 | 6 | U.S=1,25mm |
| 21 | Crankshaft | 848769 | 1 | SN-120190308 |
| 21 | Crankshaft | 865032 | 1 | Without gear. |
| 21 | Crankshaft, 14 hole for flywheel | 3137528 | 1 | Without gear., SNXXXXXXXXXX/190309- |
| 22 | Plug | 978130 | 6 | |
| 23 | Woodruff key | 422253 | 1 | |
| 24 | Gear | 423080 | 1 | |
| 26 | Main bearing kit | 270449 | 7 | Std |
| 26 | Main bearing kit | 270450 | 7 | 0.25mm u.s |
| 26 | Main bearing kit | 270451 | 7 | 0.50mm u.s |
| 26 | Main bearing kit | 270452 | 7 | 0.75mm u.s |
| 27 | Thrust washer kit | 276791 | 1 | Std D |
| 27 | Thrust washer kit | 276792 | 1 | 0,1mm o.s |
| 27 | Thrust washer kit | 276793 | 1 | 0,2mm o.s |
| 28 | Hub | 424958 | 1 | |
| 29 | Washer | 422124 | 1 | |
| 30 | Hexagon screw | 941494 | 1 | |
| 31 | Vibration damper | 866135 | 1 | |
| 32 | V-belt pulley | 468187 | 1 | HC50x3 grooves |
| 32 | Pulley | 847367 | 1 | HC50x6 grooves |
| 33 | Hexagon screw | 955549 | 6 | AQ170B MOXXXX/87713-., L=45mm |
| 33 | Hexagon screw | 955551 | 12 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 34 | Spring washer | 941909 | 6 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 35 | Flywheel, 10 hole | 864402 | 1 | |
| 35 | Flywheel, 14 hole | 864997 | 1 | |
| 36 | Ring gear | 420794 | 1 | For gear box Voith. |
| 37 | Hexagon screw | 478717 | 10 | For gear box Voith. |
| 38 | Washer | 467773 | 10 | |
| 24A | Oil deflector | 423177 | 1 |
| Item | Part Name | Part No. |
| 18 | Adjusting washer 468272 | 468272 |
| Details | |
| Engine model | D120A TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G, TD120GG TD120HP-86 TD120HPP TD1210G, TWD1210G TD121CHC TD121CRC TD121G TD121G-87 TD121GG TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TID120FG TID120HPP TID121FG TID121K TID121K-87 TID121KG TID121KG-87 TID121KGP TID121KP TID121KP-87 TID121KPB-87 TID121L-87 TID121LG TID121LG UT-87 TID121LG-87 TID121LGP-87 TID121LP TID121LP-87 TID121LPB-87 TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE, TWD1231VE |
| Application | Crank Mechanism Crank Mechanism: A Crank Mechanism: B Crank Mechanism: C Crankshaft and Related Parts Crankshaft and Related Parts: A Crankshaft and Related Parts: B Crankshaft and Related Parts: C Crankshaft and Related Parts: D CRANKSHAFT AND RELATED PARTS: TID121FP |
| Specification | |
| Descriptions | TH = 0,30mm TH = 0.30mm TH=0,30mm TH=0.30mm |
