Adjusting washer 845430

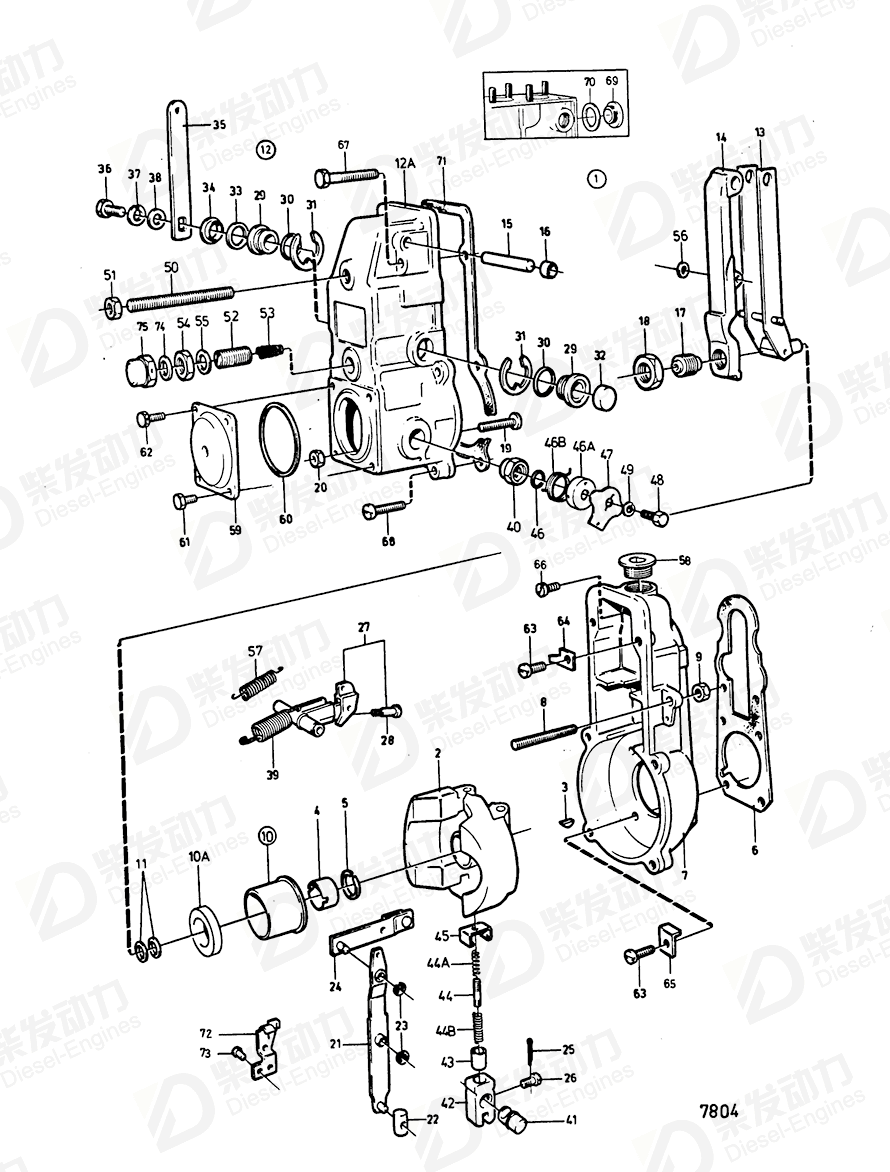

| No. | Part Name | Part Number | Qty | Description |
| 1 | Governor | 849483 | 1 | |
| 2 | Regulator weight | 848220 | 1 | |
| 3 | Key | 25464 | 1 | |
| 4 | Round nut | 238994 | 1 | |
| 5 | Spring washer | 238995 | 1 | |
| 6 | Gasket | 6211236 | 1 | |
| 7 | Regulator housing | 845423 | 1 | |
| 8 | Pin | 243855 | 1 | |
| 9 | Hexagon nut | 940197 | 1 | |
| 10 | Control sleeve | 845025 | 1 | |
| 11 | Spacer | 239007 | 1 | TH=0.2mm |
| 11 | Washer | 239008 | 1 | TH=0.4mm |
| 11 | Washer | 239009 | 1 | TH=1.0mm |
| 11 | Adjusting washer | 870877 | 1 | TH=0.3mm |
| 13 | Lever | 845023 | 1 | |
| 14 | Tensioning arm | 241008 | 1 | |
| 15 | Shaft | 239017 | 1 | |
| 16 | Plug | 240374 | 2 | |
| 17 | Cover | 239019 | 1 | |
| 18 | Nut | 239020 | 1 | |
| 19 | Screw | 239021 | 1 | |
| 20 | Hexagon nut | 940197 | 1 | |
| 21 | Lever | 240375 | 1 | |
| 22 | Cube | 240376 | 1 | |
| 23 | Lock washer | 848218 | 2 | |
| 24 | Link | 240377 | 1 | |
| 25 | Pin | 845007 | 1 | |
| 26 | Pin | 240390 | 1 | |
| 27 | Swivel arm | 870887 | 1 | |
| 28 | Screw | 239031 | 1 | |
| 29 | Bearing bushing | 240382 | 2 | |
| 30 | O-ring | 864475 | 2 | |
| 31 | E-circlip | 942796 | 2 | |
| 32 | Cover | 239037 | 1 | |
| 33 | O-ring | 864476 | 1 | |
| 34 | Adjusting washer | 233994 | 1 | TH=0.5mm |
| 34 | Washer | 238132 | 1 | |
| 35 | Arm | 239039 | 1 | |
| 36 | Hexagon screw | 955271 | 1 | |
| 37 | Spring washer | 941906 | 1 | |
| 38 | Washer | 955892 | 1 | |
| 39 | Spring | 239040 | 1 | |
| 40 | Bearing bushing | 239048 | 1 | |
| 41 | Shaft | 239049 | 1 | |
| 42 | Link | 870917 | 1 | |
| 43 | Sleeve | 239051 | 1 | |
| 44 | Spring | 240387 | 1 | |
| 45 | Brace | 870916 | 1 | |
| 46 | O-ring | 862814 | 1 | |
| 48 | Hexagon screw | 955271 | 1 | |
| 49 | Spring washer | 941906 | 1 | |
| 50 | Stud | 848217 | 1 | |
| 51 | Nut | 845426 | 1 | |
| 52 | Screw | 239044 | 1 | |
| 53 | Spring | 239045 | 1 | |
| 54 | Spring | 239040 | 1 | |
| 55 | Gasket | 18839 | 1 | |
| 56 | Adjusting washer | 845429 | 1 | TH=0,10mm |
| 56 | Adjusting washer | 845430 | 1 | TH=0.25mm |
| 56 | Adjusting washer | 845431 | 1 | TH=0.40mm |
| 57 | Spring | 845432 | 1 | |
| 58 | Plug | 240919 | 1 | |
| 59 | Cover | 846187 | 1 | |
| 60 | Gasket | 240394 | 1 | |
| 61 | Screw | 870935 | 2 | |
| 62 | Hexagon screw | 955269 | 2 | For 1570594 |
| 63 | Screw | 848219 | 6 | |
| 64 | Retainer | 845424 | 1 | |
| 65 | Retainer | 244552 | 4 | |
| 66 | Screw | 848221 | 2 | |
| 67 | Screw | 6637616 | 2 | |
| 68 | Screw | 241990 | 4 | |
| 69 | Nut | 870637 | 1 | |
| 70 | Gasket | 18839 | 1 | |
| 71 | Gasket | 11992560 | 1 | |
| 72 | Attaching plate | 845427 | 1 | |
| 73 | Rivet | 845428 | 2 | |
| 74 | Screw | 244555 | 1 | |
| 75 | Washer | 238959 | 1 | |
| 10A | Roller bearing | 239006 | 1 | |
| 12A | Regulator cover | 846659 | 1 | |
| 44A | Spring | 240386 | 1 | |
| 44B | Spring | 240388 | 1 | |
| 46A | Cover | 239059 | 1 | Replaced by 837364 |
| 46B | Spring | 239056 | 1 | Replaced by 837364. |
| Item | Part Name | Part No. |
| 56 | Adjusting washer 845430 | 845430 |
| Details | |
| Application | Centrifugal Governor CENTRIFUGAL GOVERNOR: 845390 CENTRIFUGAL GOVERNOR: 846602 CENTRIFUGAL GOVERNOR: 847422 CENTRIFUGAL GOVERNOR: 848210 GOVERNOR Governor: 849472 Governor: 849479 Governor: 849481 Governor: 849485 |
| Specification | |
| Descriptions | TH = 0.25mm TH=0.25mm TJ=0,25mm TJ=0.25mm |
