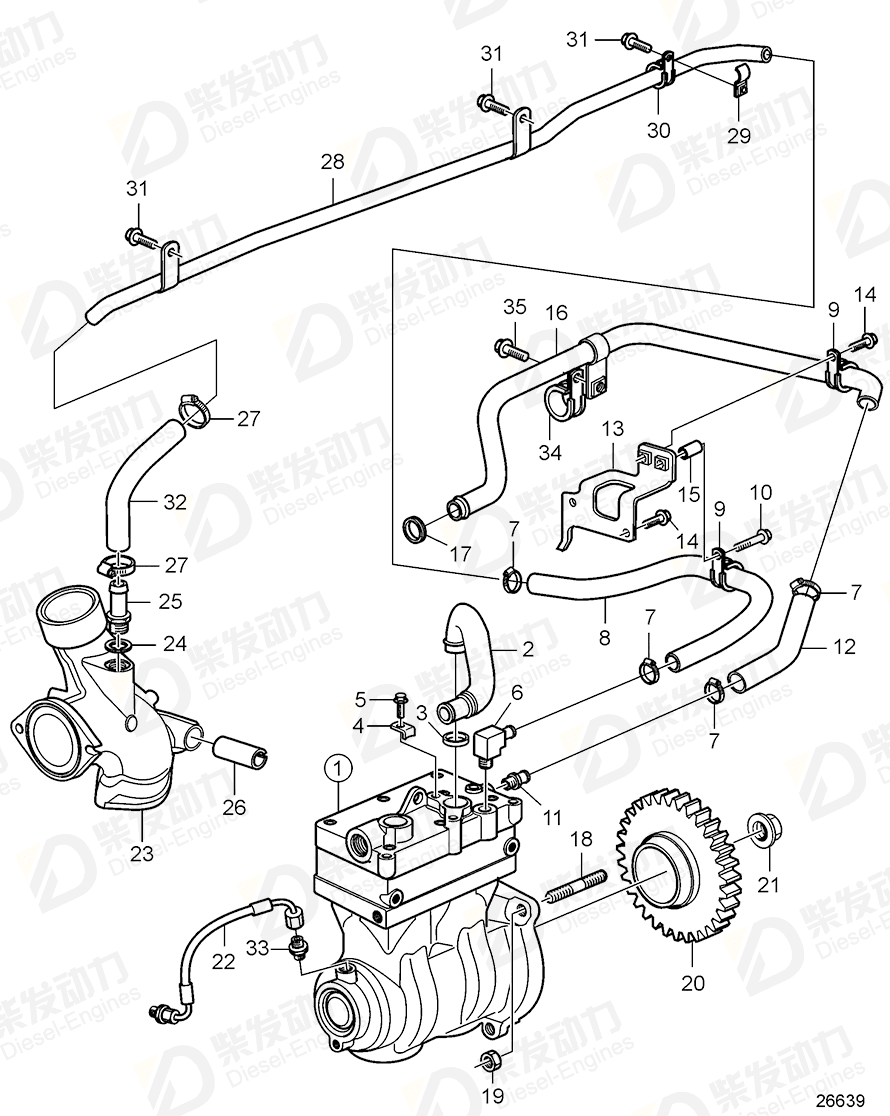

Air compressor 20846000
| No. | Part Name | Part Number | Qty | Description |
| 1 | Air compressor | 20846000 | 1 | |
| 2 | Inlet pipe | 20390470 | 1 | |
| 3 | Rubber moulding | 471708 | 1 | |
| 4 | Lock brace | 1546531 | 1 | |
| 5 | Flange screw | 984733 | 1 | |
| 6 | Hose nipple | 979270 | 1 | |
| 7 | Hose clamp | 943472 | 4 | |
| 8 | Rubber hose | 946652 | 1 | L=400mm |
| 9 | Clamp | 945081 | 2 | |
| 10 | Flange screw | 994385 | 1 | L=45mm |
| 11 | Hose nipple | 976923 | 1 | |
| 12 | Rubber hose | 946652 | 1 | L=400mm |
| 13 | Bracket | 21144352 | 1 | |
| 14 | Flange screw | 984733 | 4 | |
| 15 | Spacer sleeve | 977801 | 1 | |
| 16 | Coolant pipe | 21956734 | 1 | |
| 17 | Sealing ring | 1547252 | 1 | |
| 18 | Stud | 953102 | 3 | |
| 19 | Flange nut | 979230 | 3 | |
| 20 | Gear | 8131848 | 1 | |
| 22 | Hose assembly | 990424 | 1 | |
| 23 | Coolant pipe | 20539684 | 1 | |
| 24 | Gasket | 976932 | 1 | |
| 25 | Hose nipple | 948931 | 1 | |
| 27 | Hose clamp | 943473 | 2 | |
| 28 | Coolant pipe | 21350611 | 1 | |
| 30 | Clamp | 949747 | 1 | |
| 31 | Flange screw | 984733 | 3 | |
| 32 | Hose | 21256182 | 1 | |
| 33 | Nipple | 977639 | 1 | |
| 34 | Clamp | 942810 | 1 | |
| 35 | Flange screw | 984733 | 1 |
| Item | Part Name | Part No. |
| 1 | Air compressor 20846000 | 20846000 |
| Details | |
| Engine model | TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1350VE TAD1360VE TAD1361VE TAD1363VE |
| Application | Air Comressor Vabco 636CC. Two Cylinder |
