Air compressor 21931626

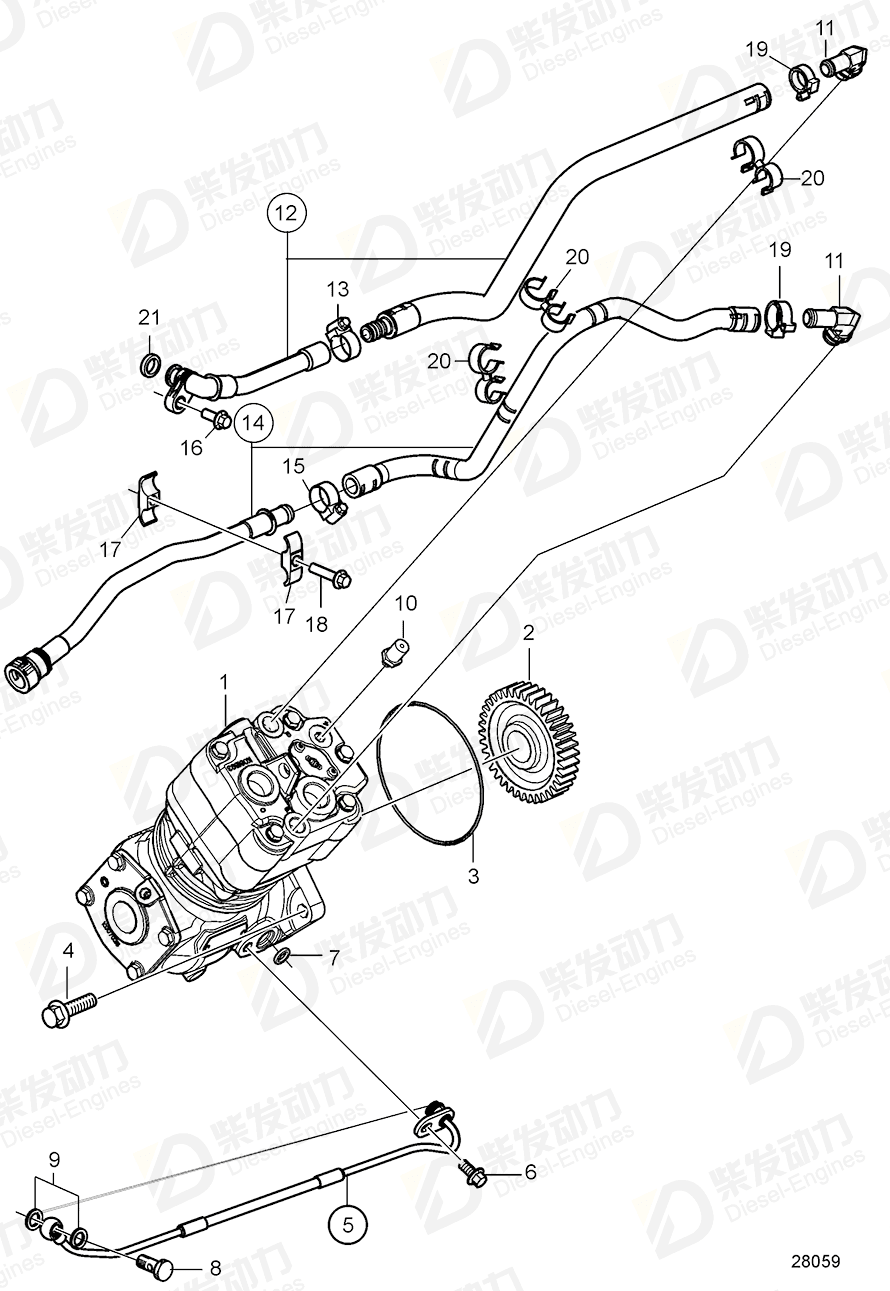

| No. | Part Name | Part Number | Qty | Description |
| 1 | Air compressor | 21931626 | 1 | 1 cylinder, 360cc |
| 2 | Gear | 21735437 | 1 | |
| 3 | O-ring | 948888 | 2 | |
| 4 | Flange screw | 996056 | 3 | For Servo Pump drive when no Air Compressor |
| 5 | Pressure hose | 21788992 | 1 | Replaced by 22701992 |
| 5 | Pressure hose | 22701992 | 1 | |
| 6 | Sealing ring | 1677370 | 1 | |
| 7 | Hollow screw | 973950 | 1 | |
| 8 | Gasket | 11994 | 2 | |
| 9 | Flange screw | 984733 | 1 | |
| 10 | Swivel | 992016 | 1 | |
| 11 | Connector | 21968079 | 2 | |
| 12 | Water pipe | 22248545 | 1 | |
| 13 | Hose clamp | 992082 | 1 | |
| 14 | Water pipe | 22248553 | 1 | |
| 15 | Hose clamp | 992082 | 1 | |
| 16 | Flange screw | 984734 | 1 | |
| 17 | Bracket | 22010758 | 2 | |
| 18 | Flange screw | 984737 | 1 | |
| 19 | Hose clamp | 992082 | 2 | |
| 20 | Retainer | 25311134 | 3 | |
| 21 | Sealing ring | 21532261 | 1 |
| Item | Part Name | Part No. |
| 1 | Air compressor 21931626 | 21931626 |
| Details | |
| Engine model | TAD540-42VE, TAD550-51VE, TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD570VE, TAD571VE, TAD572VE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE, TAD850-52VE, TAD840-43VE TAD870VE, TAD871VE, TAD872VE, TAD873VE |
| Application | Air Compressor 360CC KNORR 1cyl |
| Specification | |
| Descriptions | 1 cylinder, 360cc |
