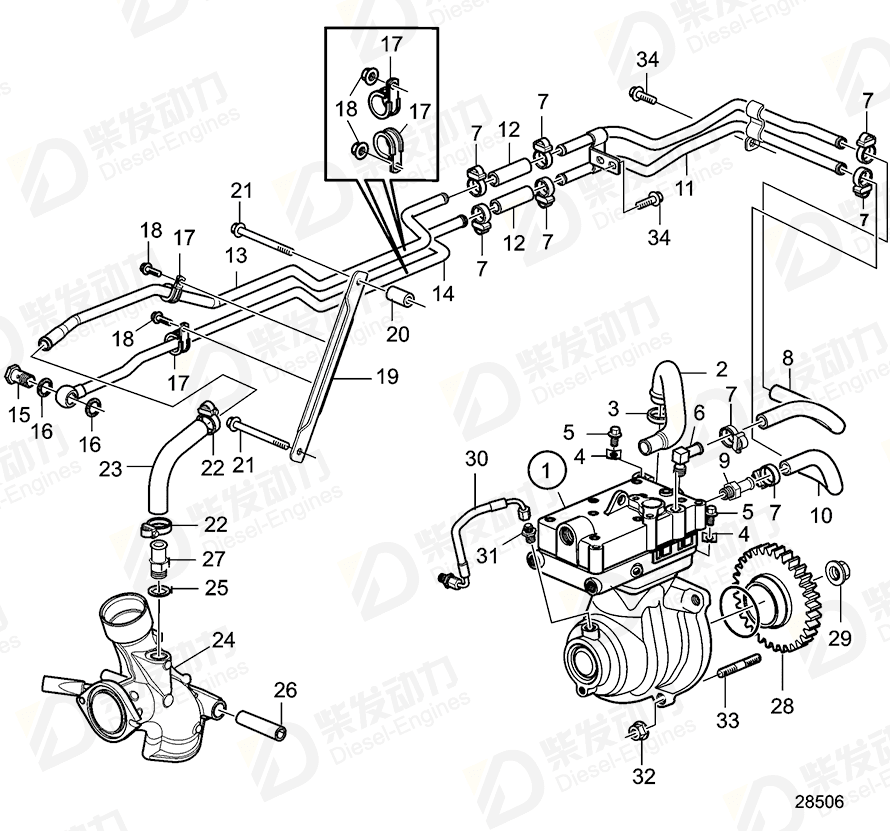

Air compressor 22040500
| No. | Part Name | Part Number | Qty | Description |
| 1 | Air compressor | 22040500 | 1 | Component parts not sold separately |
| 2 | Inlet pipe | 20390470 | 1 | |
| 3 | Rubber moulding | 471708 | 1 | |
| 4 | Lock brace | 1546531 | 2 | |
| 5 | Flange screw | 984733 | 5 | |
| 6 | Hose nipple | 979270 | 1 | |
| 7 | Hose clamp | 992082 | 8 | |
| 8 | Rubber hose | 946652 | 1 | L=400mm |
| 9 | Hose nipple | 976923 | 1 | |
| 10 | Rubber hose | 946652 | 1 | L=400mm |
| 11 | Water pipe | 22088710 | 1 | |
| 12 | Rubber hose | 946652 | 1 | L=400mm |
| 13 | Water pipe | 21888725 | 1 | |
| 14 | Water pipe | 21968947 | 1 | |
| 15 | Hollow screw | 190714 | 1 | |
| 16 | Sealing ring | 21024032 | 2 | |
| 17 | Clamp | 949747 | 2 | |
| 18 | Flange nut | 990940 | 2 | |
| 19 | Bracket | 22088907 | 1 | |
| 20 | Spacer sleeve | 973430 | 1 | |
| 21 | Flange screw | 984743 | 2 | |
| 22 | Hose clamp | 21078879 | 2 | |
| 23 | Hose | 21256182 | 1 | |
| 24 | Coolant pipe | 22531007 | 1 | |
| 25 | Gasket | 976932 | 1 | |
| 27 | Hose nipple | 948931 | 1 | |
| 28 | Gear | 8131848 | 1 | |
| 30 | Hose assembly | 990424 | 1 | |
| 31 | Nipple | 977639 | 1 | |
| 32 | Flange nut | 990946 | 3 | |
| 33 | Stud | 953102 | 3 | |
| 34 | Flange screw | 984734 | 3 |
| Item | Part Name | Part No. |
| 1 | Air compressor 22040500 | 22040500 |
| Details | |
| Engine model | TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1643VE-B |
| Application | Air Compressor Vabco 318. 1 Cylinder Air Compressor. One Cylinder |
| Specification | |
| Descriptions | Component parts not sold separately |
