Alternator 1578140

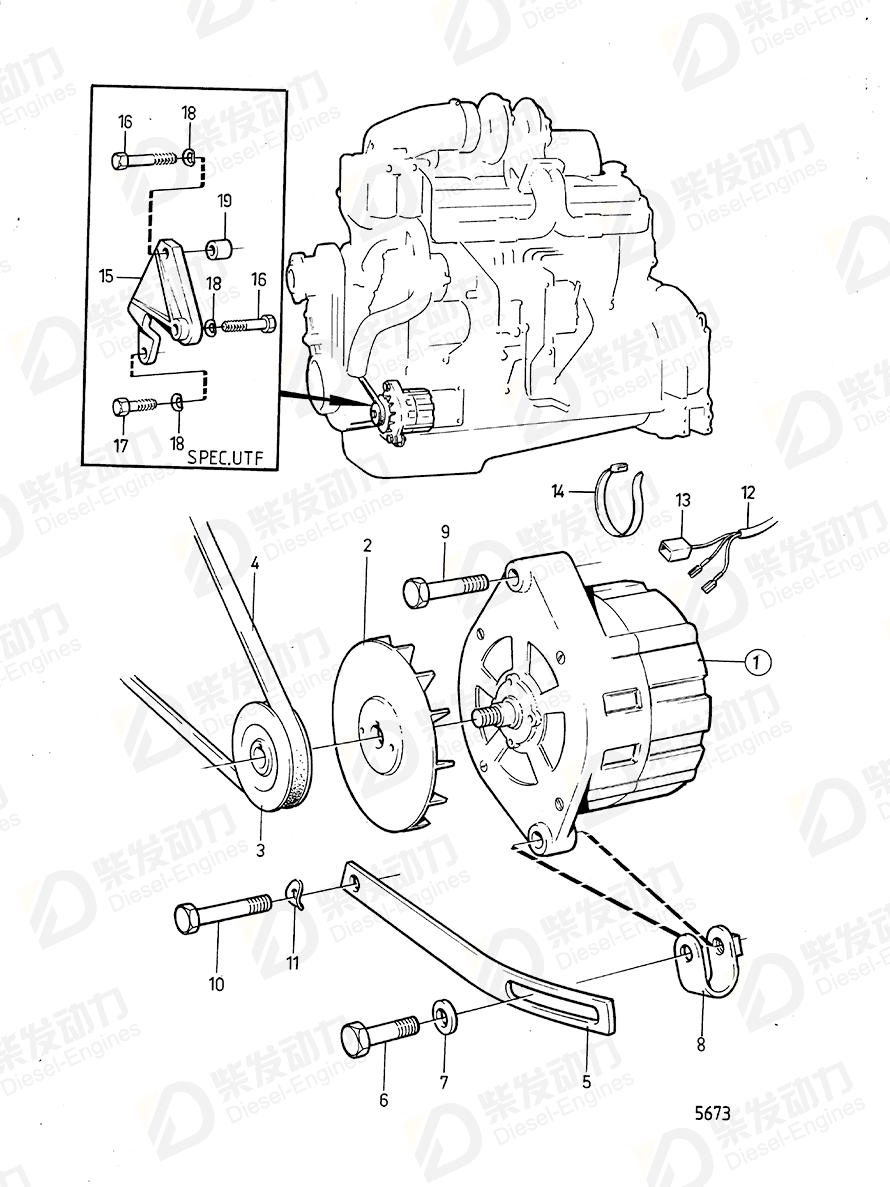

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1578140 | 1 | 28V 45A |
| 2 | Fan | 241363 | 1 | |
| 3 | Pulley | 843248 | 1 | |
| 4 | V-belt | 958317 | 1 | |
| 5 | Tensioner | 845021 | 1 | |
| 5 | Tensioner | 943672 | 1 | Spec.867490 |
| 6 | Hexagon screw | 955300 | 1 | (955299) |
| 7 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 8 | Tensioning loop | 466735 | 1 | |
| 9 | Hexagon screw | 955554 | 1 | |
| 10 | Hexagon screw | 955542 | 1 | |
| 11 | Spring washer | 942336 | 1 | |
| 14 | Cable tie | 948210 | 1 | (827353) |
| 15 | Alternator bracket | 844946 | 1 | Spec.version |
| 16 | Hexagon screw | 955541 | 2 | |
| 17 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 18 | Spring washer | 942336 | 3 | |
| 19 | Spacer sleeve | 843015 | 1 | Spec.version |
| Item | Part Name | Part No. |
| 1 | Alternator 1578140 | 1578140 |
| Details | |
| Engine model | D100B, TD100A TD100A TD100G, TD100G-85, TD100G-87, TID100K, TID100K-87 TD120C TD120G TD121G, TID121K TD121G-87, TID121K-87, TID121L-87 TD60A TD60B TD60D TD60D-83 TD610M TD610M, TD630ME, TD730ME TD61A, TD61AW, TD71A, TD71AW, TID71A TD61ACE TD70B TD70G TD70G-83 TD71ACE TID120FG TWD630ME |
| Application | Alternator Alternator 14V 90A / 28V 45A, Components: 1578140 Alternator 1578140 and Installation Components Alt Alternator 28V 45A, Components Alternator Alt Low Mounted Left Side Alternator Alt, Low Mounted, Left Side Alternator and Installation Alternator and Installation Components ALTERNATOR AND INSTALLATION COMPONENTS, LOW MOUNTED Alternator and Installation Components, Low Mounted: A Alternator and Installation Components, Low Mounted: B ALTERNATOR LOW MOUNTED LEFT SIDE Alternator Low Mounting Alternator Low Mounting: A Alternator Low Mounting: B Alternator, Low Mounting Right Side Alternator, Low-Left Mounted Alternator, Low-Right Mounted: A Alternator, Low-Right Mounted: C Alternator: 1578140 |
| Specification | |
| Descriptions | 24V 45A 28V 45A Also available as an exchange part., 28V 45A For 24 voltage electric system., 24V 45A,later prod For 24 voltage electric system., 28V 45A For 24 voltage electric system., Also available as an exchange part. For 24 voltage electric system., Also available as an exchange part., 28V 45A For 24V electric system., Replaced by alternator 1624089 and pin 1610144., 28V 45A E.U=3803064 Replaced by alternator 1624089 and pin 1610144., 28V 45A |
