Alternator 1624090

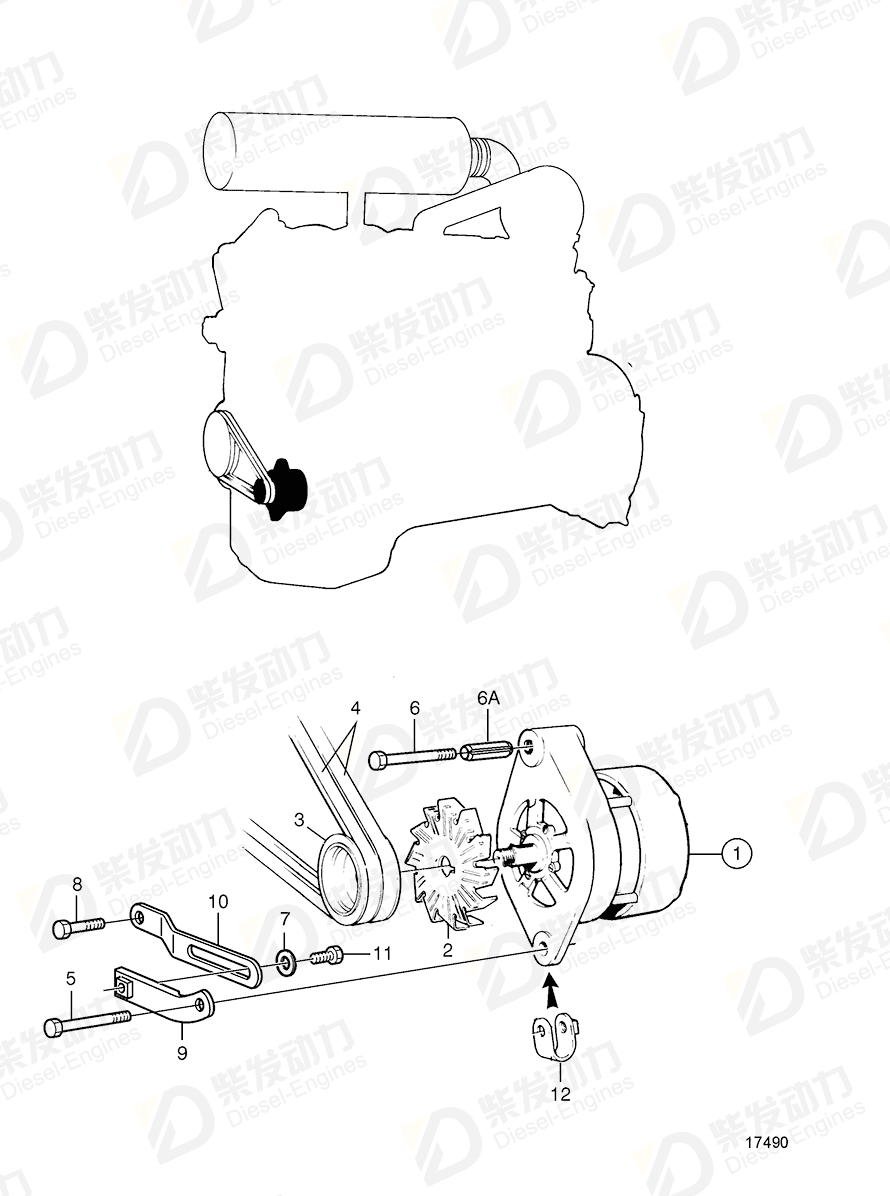

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1624090 | 1 | 28V 60A |
| 2 | Fan | 847707 | 1 | Included in alternator |
| 3 | Pulley | 822573 | 1 | |
| 4 | V-belt | 976487 | 1 | L=2x1150mm |
| 5 | Flange screw | 947760 | 1 | M8x40mm |
| 6 | Flange screw | 966365 | 1 | |
| 7 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 8 | Flange screw | 946173 | 1 | |
| 9 | Tensioner | 847956 | 1 | |
| 10 | Tensioner | 847957 | 1 | |
| 11 | Flange screw | 946173 | 1 | |
| 12 | Tensioning loop | 466734 | 1 | |
| 6A | Spring pin | 1610144 | 1 |
| Item | Part Name | Part No. |
| 1 | Alternator 1624090 | 1624090 |
| Details | |
| Engine model | TD610V, TWD610V, TD630VE, TWD630VE TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TD71A, TID71A, TWD710V, TWD731VE, TAD730V TD730VE |
| Application | Alternator 28V 60A, Components Alternator, Low-Left Mounted SN-2071115245 Alternator, Low-Left Mounted SN2061150164- Alternator, Low-Left Mounted SN2071115246- |
| Specification | |
| Descriptions | 28V 60A |
