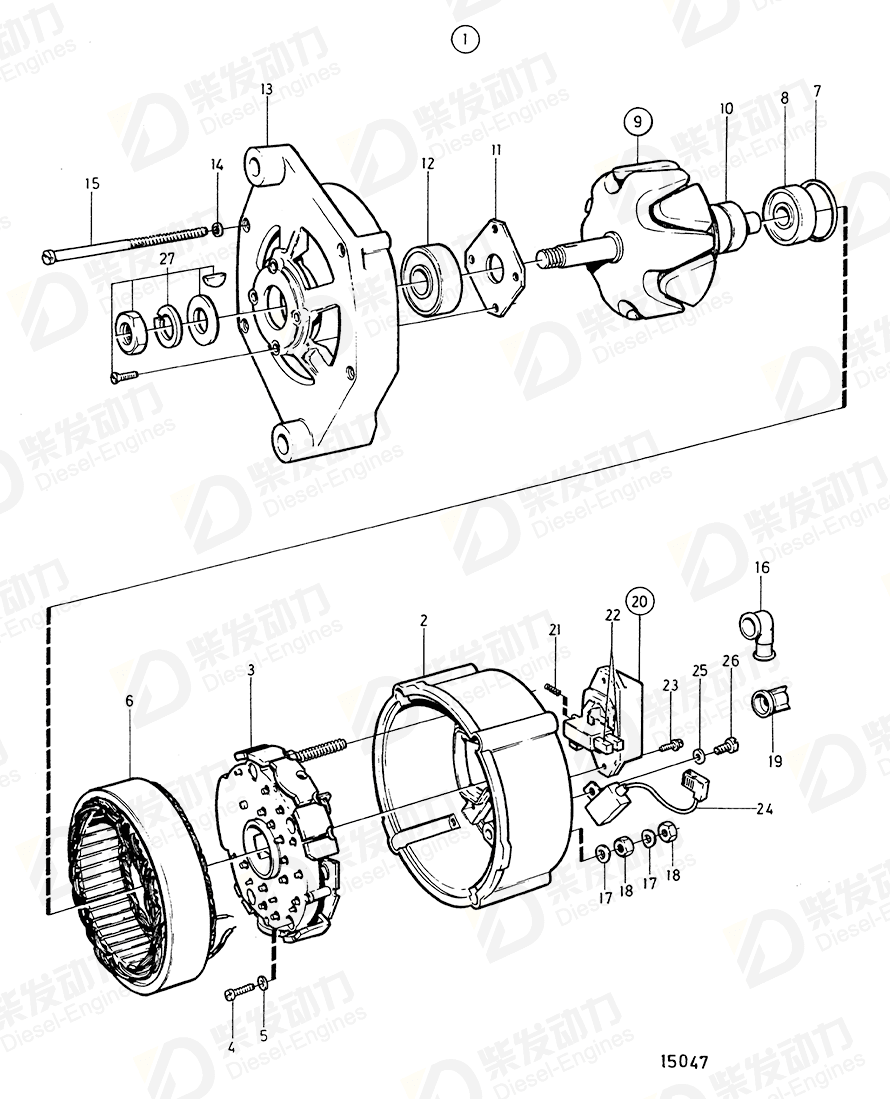

Alternator 3803393
| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1089861 | 1 | 28V 55A |
| 1 | Alternator | 3803393 | 1 | 28V 55A |
| 1 | Alternator | 6779261 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 3 | Rectifier | 3094731 | 1 | (244610) |
| 4 | Six point socket scr | 969518 | 2 | (956066) |
| 5 | Spring washer | 941904 | 2 | |
| 7 | O-ring | 244331 | 1 | |
| 8 | Ball bearing | 244328 | 1 | |
| 10 | Slip ring | 844839 | 1 | |
| 11 | Retainer | 1698179 | 1 | |
| 12 | Ball bearing | 183486 | 1 | |
| 15 | Screw | 1324962 | 4 | |
| 16 | Protective cap | 829200 | 2 | 0,5-1,0mm², red |
| 17 | Spring washer | 1697034 | 2 | |
| 18 | Hexagon nut | 940197 | 2 | |
| 20 | Charge regulator | 1625880 | 1 | (1606935) |
| 22 | Brush set | 244427 | 1 | |
| 23 | Screw | 1323069 | 2 | |
| 24 | Capacitor | 244347 | 1 | (244357) |
| 26 | Screw | 1697033 | 1 | |
| 27 | Repair kit | 273503 | 1 |
| Item | Part Name | Part No. |
| 1 | Alternator 3803393 | 3803393 |
| Details | |
| Engine model | DH10A, THD102KD, THD102KB TD100G-87 TD100G-87, TD1030ME, TWD1030ME TD100G-87, TD1030VE, TAD1030V, TWD1031VE TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD121G-87 TD121G-87, TWD1210V, TWD1211V TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121G-87, TWD1230VE, TWD1231VE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TD630VE, TWD630VE TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD640VE TD71A, TID71A, TD730VE, TWD731VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TWD1230VE TWD1231VE TWD740VE |
| Application | Alternator Alternator 28V 55A, Components Alternator, High Mounting Alternator, Low-Left Mounted Alternator, Low-Left Mounted: 55A Alternator, Low-Left Mounted: A Alternator, Low-Left Mounted: B Alternator, Low-Left Mounted: C Alternator, Low-Right Mounted Alternator, Low-Right Mounted: A Alternator, Low-Right Mounted: C Alternator, Low-Right Mounted: TAD 1230V Alternator, Twin Mounted Alternator, Twin Mounted: A Alternator, Twin Mounted: B |
| Specification | |
| Descriptions | 28V 55A 28V 55A, E.U=3803393 For 24V electric system., 28V 55A |
