Alternator 845940

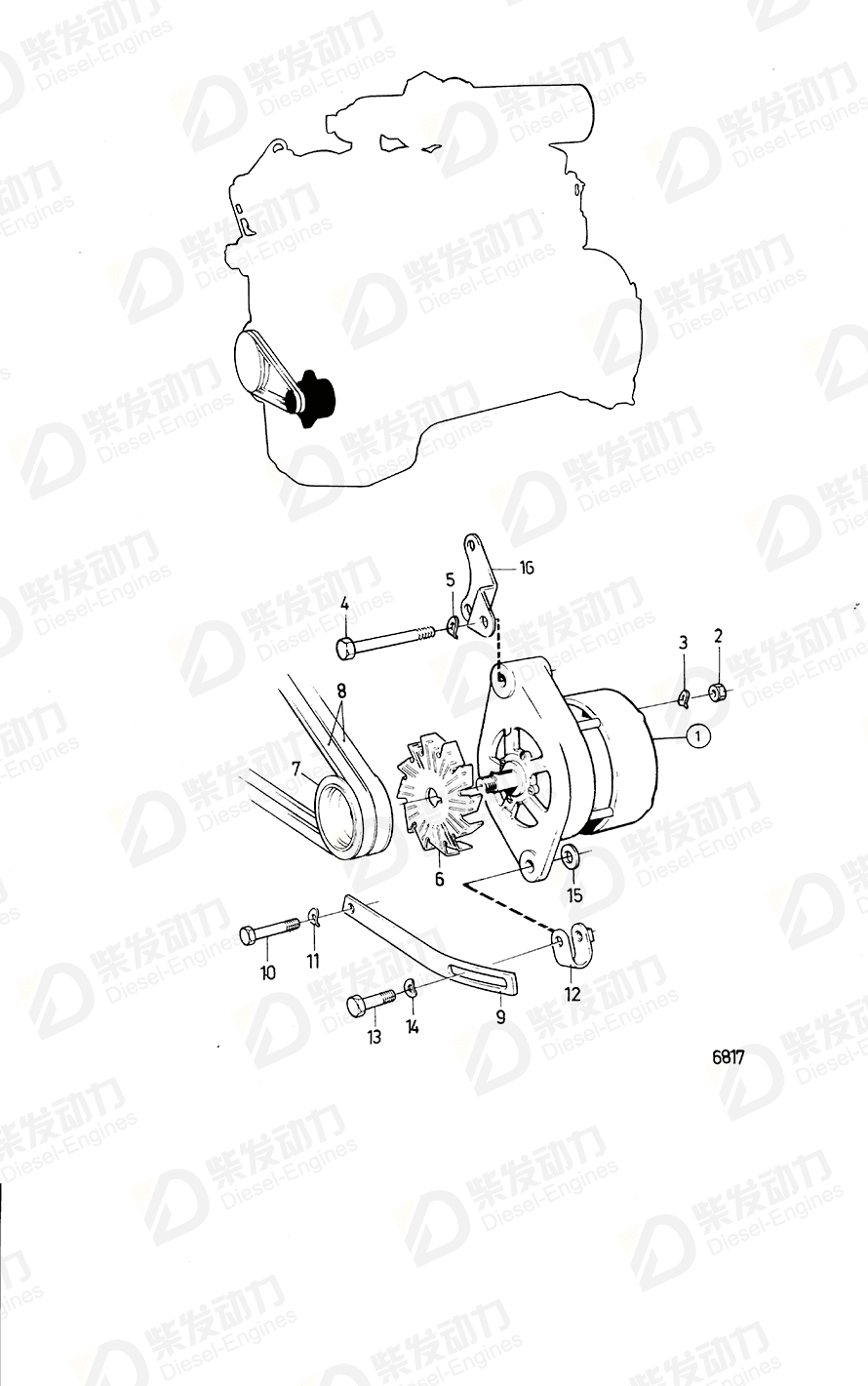

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 845940 | 1 | For 24 voltage electric system., 24V 55A |
| 1 | Alternator | 849563 | 1 | For 24V electric system., Replaced by 863955., SN-1101019500/XXXXXX |
| 1 | Alternator | 1607362 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 2 | Hexagon nut | 955780 | 1 | |
| 2 | Hexagon nut | 955781 | 1 | |
| 2 | Hexagon nut | 955782 | 1 | |
| 3 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 3 | Spring washer | 941906 | 1 | |
| 3 | Spring washer | 941907 | 1 | |
| 4 | Hexagon screw | 955555 | 1 | L=83mm |
| 5 | Spring washer | 941909 | 1 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 6 | Fan | 1578612 | 1 | |
| 7 | Pulley | 822573 | 1 | |
| 8 | V-belt | 966988 | 1 | |
| 9 | Tensioner | 847453 | 1 | |
| 10 | Hexagon screw | 955542 | 1 | |
| 11 | Spring washer | 942336 | 1 | |
| 12 | Tensioning loop | 466734 | 1 | |
| 13 | Hexagon screw | 955299 | 1 | |
| 14 | Spring washer | 941907 | 1 | |
| 15 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 16 | Bracket | 468299 | 1 |
| Item | Part Name | Part No. |
| 1 | Alternator 845940 | 845940 |
| Details | |
| Engine model | TD100G, TD100G-85 TD100G, TD100G-85, TD100GG, TD100GG-85, TID100K, TID100KG TD100G, TD100G-85, TD100GP, TD100GP-85, TID100K, TID100KP TD100G, TD100G-85, TID100K TD120HP-86, TD121G, TD121G-87, TD121GP-87, TID121K, TID121KP, TID121K-87 TD120HPP TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87 TD121G, TD121G-87, TID121K, TID121K-87 TD30A TD45B TD60D-83, TID60D TD60D-83, TID60D, TID60DG TD61A, TD61AW, TD71A, TD71AW, TID71A TD61AG, TID61AG TD61AP TD70G-83 TD70G-83, TID70G TD71AG, TID71AG TD71AP, TID71AP TID120HPP TID121FG TID121K, TID121KG, TID121KG-87, TID121LG, TID121LG-87 TID121KP-87, TID121KPB-87, TID121LP, TID121LP-87, TID121LPB-87 TID70G |
| Application | Alternator Alternator and Installation Comp.: B Alternator and Installation Components Alternator and Installation Components, Left Side ALTERNATOR LOW MOUNTED RIGHT SIDE Alternator Low Mounting Alternator Twin Mounted Alternator&24V: 845940 Alternator, Double Mounted Alternator, High Mounted Right Side Alternator, Low Mounted Left Side Alternator, Low Mounted Right Side Alternator, Low Mounted Right Side: A Alternator, Low Mounted Right Side: B ALTERNATOR, LOW MOUNTED RIGHT SIDE: TID121FP Alternator, Low Mounting Right Side Alternator: 845940 |
| Specification | |
| Descriptions | 24V 55A 28V 55A 28V 55A ERS.AV 849563 28V 55A REPL BY 849563 For 24 voltage electric system., 24V 55A For 24 voltage electric system., 24V 55A,early prod Replaced by alternator 849563., For 24 voltage electric system., 24V 55A |
