Alternator 849563

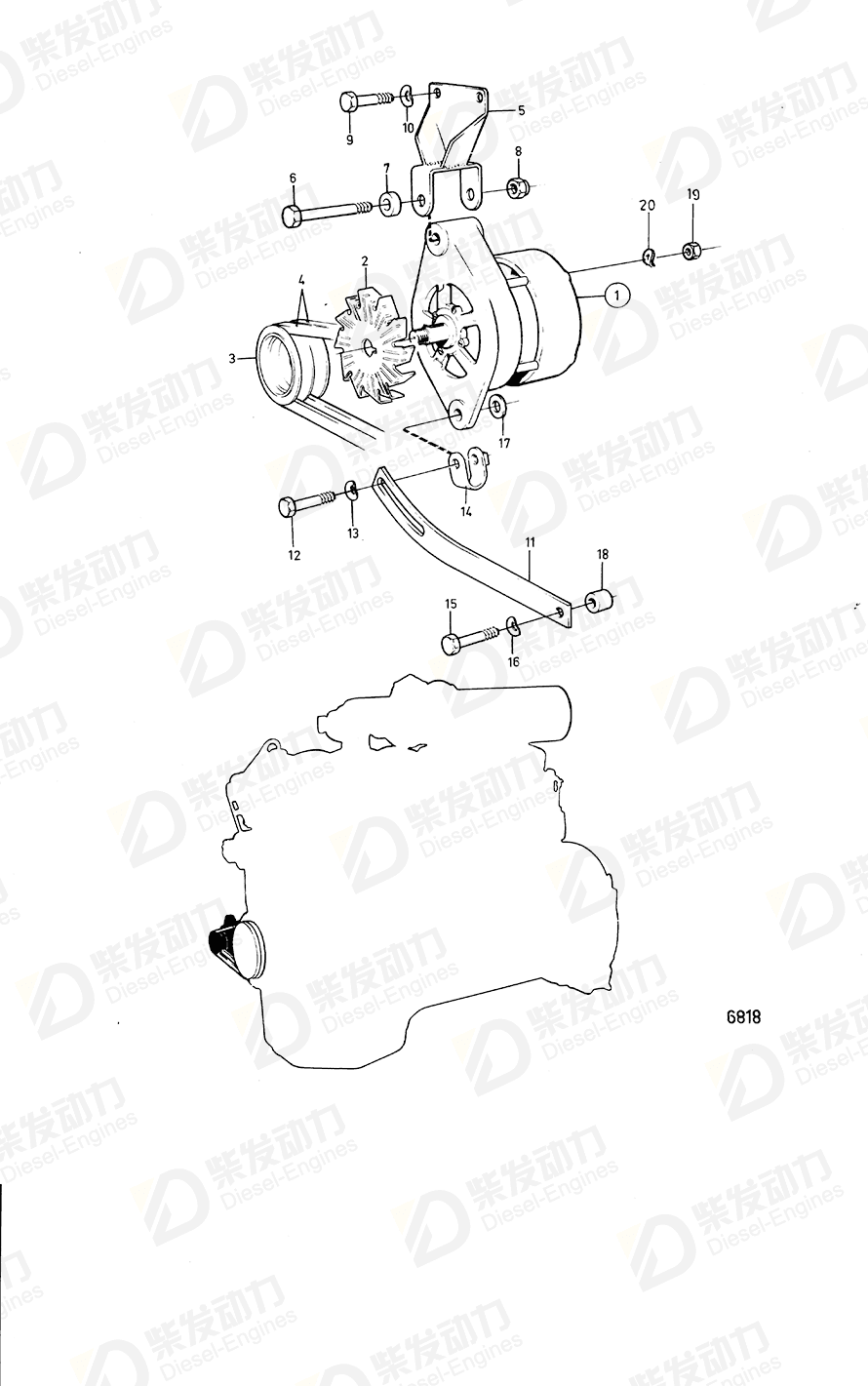

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 845940 | 1 | For 24 voltage electric system., 24V 55A |
| 1 | Alternator | 849563 | 1 | For 24V electric system., Replaced by 863955., SN-1101019500/XXXXXX |
| 1 | Alternator | 1607362 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 2 | Fan | 1578612 | 1 | |
| 3 | Pulley | 822573 | 1 | |
| 4 | V-belt | 966991 | 2 | For TD1010G, TWD1010G |
| 5 | Alternator bracket | 849510 | 1 | |
| 6 | Hexagon screw | 955555 | 1 | L=83mm |
| 7 | Spacer sleeve | 847400 | 1 | |
| 8 | Lock nut | 950355 | 1 | |
| 9 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 10 | Spring washer | 942336 | 2 | |
| 11 | Tensioner | 807186 | 1 | |
| 12 | Hexagon screw | 955299 | 1 | |
| 13 | Spring washer | 941907 | 1 | |
| 14 | Tensioning loop | 466734 | 1 | |
| 15 | Hexagon screw | 955542 | 1 | |
| 16 | Spring washer | 942336 | 1 | |
| 17 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 18 | Spacer sleeve | 846903 | 1 | |
| 19 | Hexagon nut | 955780 | 1 | |
| 19 | Hexagon nut | 955781 | 1 | |
| 19 | Hexagon nut | 955782 | 1 | |
| 20 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 20 | Spring washer | 941906 | 1 | |
| 20 | Spring washer | 941907 | 1 |
| Item | Part Name | Part No. |
| 1 | Alternator 849563 | 849563 |
| Details | |
| Engine model | TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE TAD1232GE TD100G, TD100G-85 TD100G, TD100G-85, TD100GG, TD100GG-85, TID100K, TID100KG TD100G, TD100G-85, TD100GP, TD100GP-85, TID100K, TID100KP TD100G, TD100G-85, TID100K TD100G-87 TD100G-87, TD100GG-87, TID100K-87, TID100KG-87 TD100G-87, TD100HP-87, TD100HPB-87, TID100K-87, TID100KP-87, TID100KPB-87 TD100G-87, TID100K-87 TD120HP-86, TD121G, TD121G-87, TD121GP-87, TID121K, TID121KP, TID121K-87 TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87 TD121G, TD121G-87, TID121K, TID121K-87 TD121GP-87 TD45B TD61A, TD61AW, TD71A, TD71AW, TID71A TD61AG, TID61AG TD61AP TD71AG, TID71AG TD71AP, TID71AP TID121FG TID121K, TID121KG, TID121KG-87, TID121LG, TID121LG-87 TID121KP-87, TID121KPB-87, TID121LP, TID121LP-87, TID121LPB-87 |
| Application | ALTERNATOR Alternator 24V Alternator 28V 55A, Components Alternator and Installation Comp.: B Alternator and Installation Components, Left Side Alternator Low Mounting Alternator Twin Mounted Alternator&24V: 849563 Alternator, Double Mounted Alternator, High Mounted Right Side Alternator, Low Mounted Left Side Alternator, Low Mounted Right Side ALTERNATOR, LOW MOUNTED RIGHT SIDE: B ALTERNATOR, LOW MOUNTED RIGHT SIDE: TID121FP Alternator, Low Mounting Right Side Alternator, Low-Left Mounted: A Alternator, Low-Left Mounted: SN -2120224464 Alternator, Low-Left, SN-XXXXXXXXXX/268616 Alternator, Low-Right Mounted Alternator, Low-Right Mounted: A Alternator, Low-Right Mounted: B Alternator, Low-Right Mounting, Earlier Prod Alternator, Twin Mounted Alternator, Twin, Low L-High H, SN-XXXXXXXXXX/268616 Alternator, Twin, Low L/R, SN-XXXXXXXXXX/268616 Alternator: 849563 |
| Specification | |
| Descriptions | 24V 55A 28V 55A 28V 55A, repl by 863955 For 24 voltage electric system. For 24 voltage electric system., 28V 55A For 24 voltage electric system., 28V 55V For 24 voltage electric system., Replaced by alternator 863955., 28V 55A For 24V electric system., Replaced by 863955., SN-1101019500/XXXXXX |
