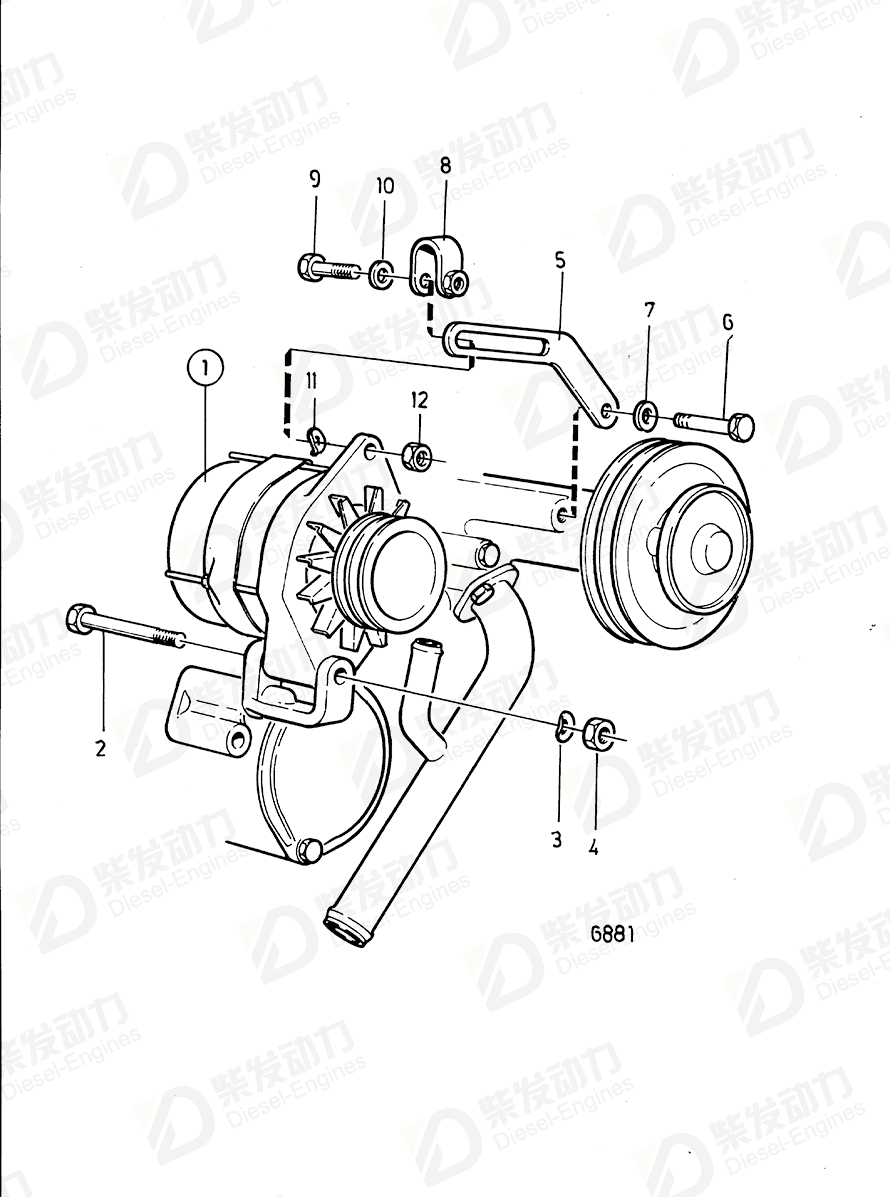

Alternator 863955
| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 845940 | 1 | For 24 voltage electric system., 24V 55A |
| 1 | Alternator | 849563 | 1 | For 24V electric system., Replaced by 863955., SN-1101019500/XXXXXX |
| 1 | Alternator | 863955 | 1 | 28V 60A. for 24V electric system., Replaced by 872021., SN-1101038358/XXXXXX |
| 2 | Hexagon screw | 955329 | 1 | |
| 3 | Spring washer | 941908 | 1 | |
| 4 | Lock nut | 971089 | 1 | Included in spring kit 876019. |
| 5 | Tensioner | 787028 | 1 | |
| 6 | Hexagon screw | 940114 | 1 | |
| 7 | Spring washer | 942336 | 1 | |
| 8 | Tensioning loop | 466735 | 1 | |
| 9 | Hexagon screw | 955298 | 1 | L=50mm |
| 10 | Washer | 960141 | 1 | |
| 11 | Spring washer | 941908 | 1 |
| Item | Part Name | Part No. |
| 1 | Alternator 863955 | 863955 |
| Details | |
| Engine model | TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE TAD1232GE TD100G, TD100G-85 TD100G, TD100G-85, TD100GG, TD100GG-85, TID100K, TID100KG TD100G, TD100G-85, TD100GP, TD100GP-85, TID100K, TID100KP TD100G, TD100G-85, TID100K TD100G-87 TD100G-87, TD100GG-87, TID100K-87, TID100KG-87 TD100G-87, TD100HP-87, TD100HPB-87, TID100K-87, TID100KP-87, TID100KPB-87 TD100G-87, TID100K-87 TD120HP-86, TD121G, TD121G-87, TD121GP-87, TID121K, TID121KP, TID121K-87 TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87 TD121G, TD121G-87, TID121K, TID121K-87 TD121GGP-87, TID121KGP, TID121LGP-87 TD121GP-87 TD45B TD61A, TD61AW, TD71A, TD71AW, TID71A TD61AG, TID61AG TD61AP TD71AG, TID71AG TD71AP, TID71AP TID100KGP-87 TID121K, TID121KG, TID121KG-87, TID121LG, TID121LG-87 TID121KP-87, TID121KPB-87, TID121LP, TID121LP-87, TID121LPB-87 |
| Application | Alternator Alternator 28V 60A, Components Alternator and Installation Comp.: B Alternator and Installation Components, Left Side Alternator Low Mounting Alternator Twin Mounted Alternator, Double Mounted Alternator, High Mounted Right Side Alternator, Low Mounted Left Side Alternator, Low Mounted Right Side Alternator, Low Mounting Right Side Alternator, Low-Left Mounted: A Alternator, Low-Left Mounted: SN -2120224464 Alternator, Low-Left, SN-XXXXXXXXXX/268616 Alternator, Low-Right Mounted Alternator, Low-Right Mounted: A Alternator, Low-Right Mounted: B Alternator, Low-Right Mounting, Earlier Prod Alternator, Twin Mounted Alternator, Twin, Low L-High H, SN-XXXXXXXXXX/268616 Alternator, Twin, Low L/R, SN-XXXXXXXXXX/268616 |
| Specification | |
| Descriptions | 28V 60A 28V 60A, repl by 872021 28V 60A. for 24V electric system., Replaced by 872021., SN-1101038358/XXXXXX For 24 voltage electric system., 28V 60A For 24 voltage electric system., Also available as an exchange part. For 24 voltage electric system., Also available as an exchange part., 28V 60A For 24 voltage electric system., Also available as an exchange part., 28V60A |
