Anchorage 465244

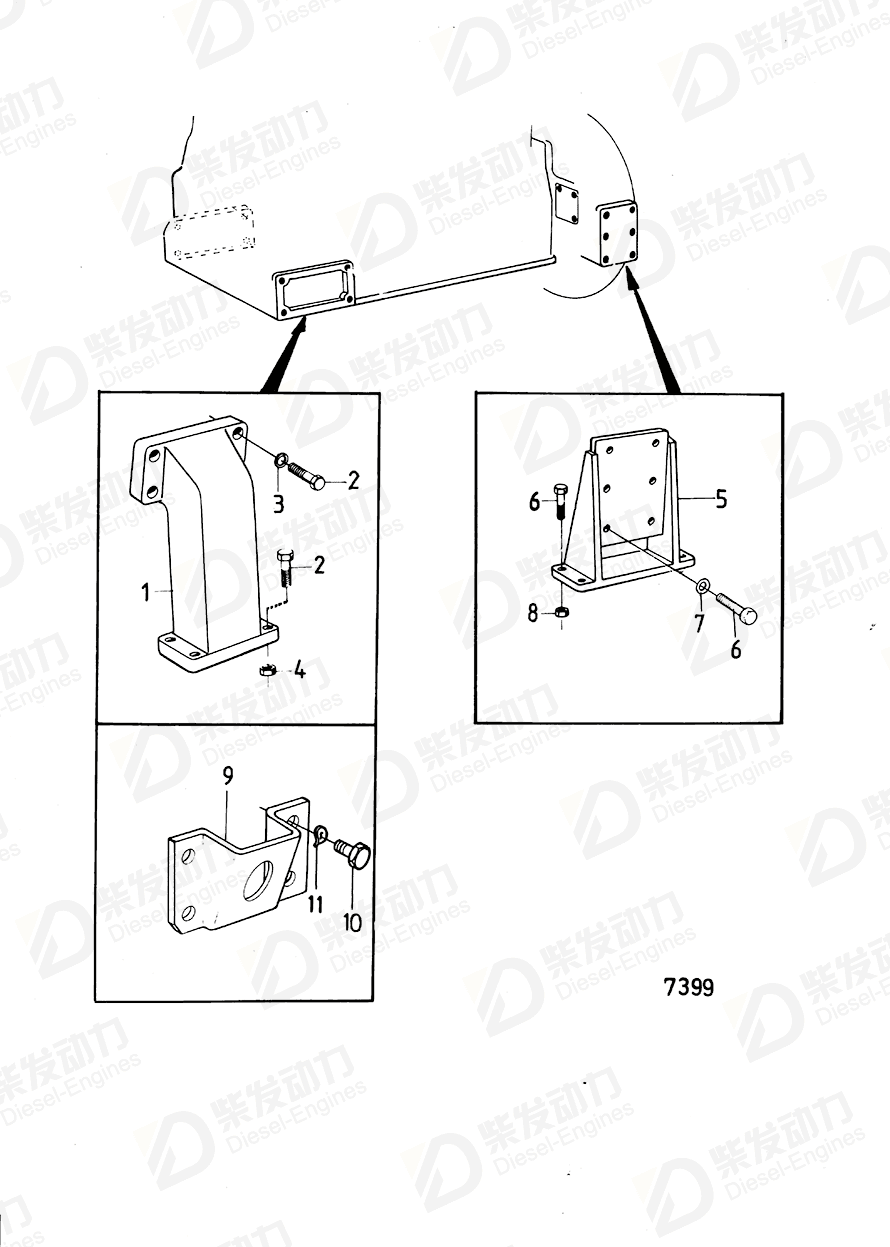

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 820510 | 2 | D70B spec.867055 alt spec.867277.D70BK, TD70B |
| 2 | Hexagon screw | 955564 | 4 | |
| 2 | Hexagon screw | 955565 | 8 | Temporary production., L=57mm |
| 2 | Hexagon screw | 955568 | 4 | For bracket 829839 with 8 holes., L=76mm |
| 3 | Spring washer | 940280 | 8 | |
| 4 | Lock nut | 950356 | 8 | Temporary production. |
| 5 | Engine bracket | 843068 | 2 | Power Pack |
| 6 | Hexagon screw | 955561 | 12 | |
| 6 | Hexagon screw | 955562 | 8 | L=38mm |
| 7 | Spring washer | 940280 | 12 | |
| 8 | Lock nut | 950356 | 8 | Temporary production. |
| 9 | Anchorage | 465244 | 2 | Åkerman spec. 867446 |
| 10 | Hexagon screw | 955560 | 4 | |
| 10 | Hexagon screw | 955565 | 4 | Temporary production., L=57mm |
| 11 | Spring washer | 940280 | 8 |
| Item | Part Name | Part No. |
| 9 | Anchorage 465244 | 465244 |
| Details | |
| Engine model | TD60A TD60B TD60D TD60D-83 TD70G TD71ACE TID60D TID60DG |
| Application | ENGINE SUSPENSION Engine Suspension: A Engine Suspension: B ENGINE SUSPENSION: C |
| Specification | |
| Descriptions | Åkerman spec. 467454 Åkerman spec. 867446 MO26751/XXXXX- STD |
