Anchorage 821076

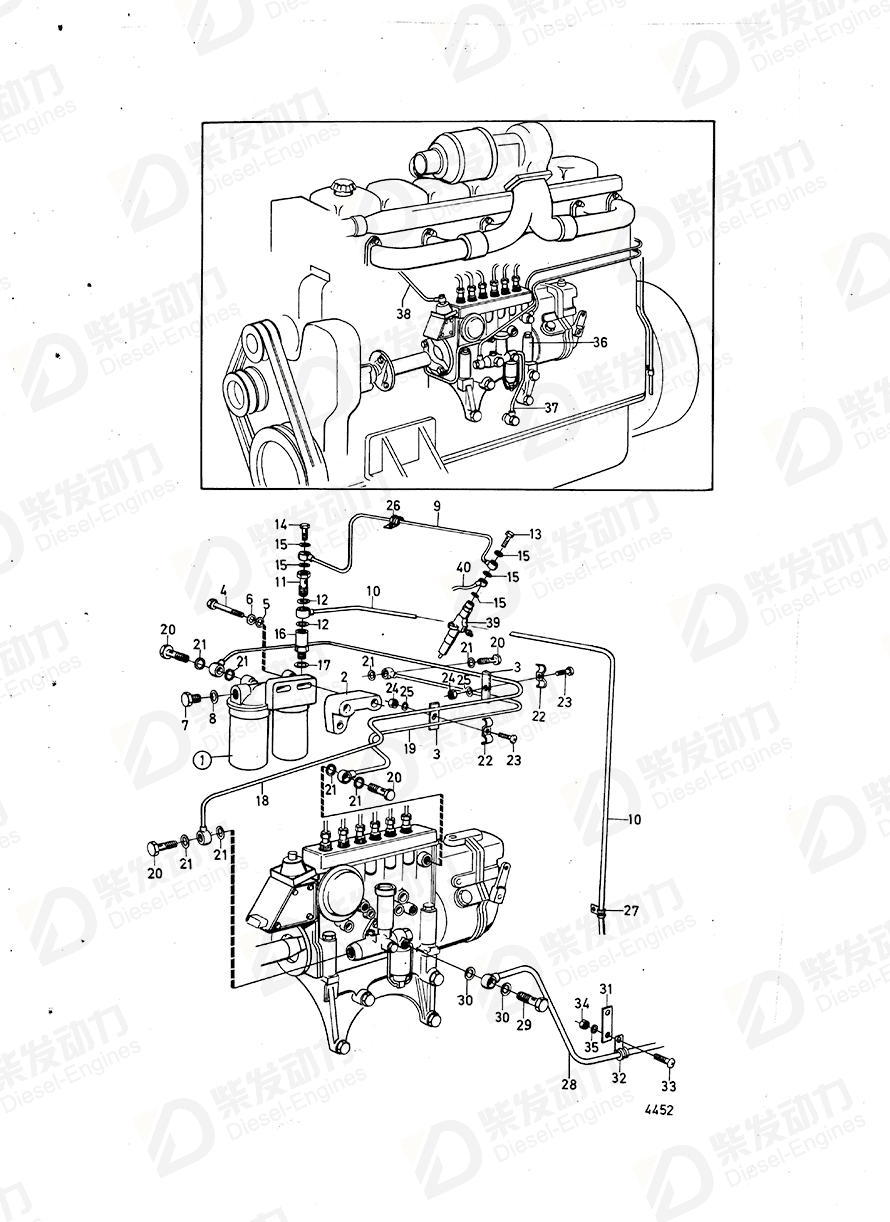

| No. | Part Name | Part Number | Qty | Description |
| 1 | Filter housing | 241672 | 1 | Replaced by 1 PC 843512,1 ST 191026., Classed engine,not included in fuel feed pump. |
| 2 | Bracket | 423450 | 1 | Spec.867255 |
| 3 | Anchorage | 821076 | 4 | |
| 4 | Hexagon screw | 955543 | 2 | |
| 5 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 6 | Spring washer | 942336 | 2 | |
| 7 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 8 | Gasket | 957178 | 1 | |
| 9 | Fuel pipe | 842737 | 1 | |
| 10 | Fuel pipe | 842731 | 1 | |
| 11 | Hollow screw | 16496 | 1 | |
| 12 | Gasket | 957178 | 2 | |
| 13 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 14 | Hollow screw | 74033 | 1 | |
| 15 | Gasket | 957171 | 5 | |
| 16 | Overflow valve | 35096 | 1 | |
| 17 | Gasket | 957178 | 1 | |
| 18 | Fuel pipe | 842732 | 1 | |
| 19 | Fuel pipe | 843633 | 1 | |
| 20 | Hollow screw | 25167 | 4 | |
| 21 | Gasket | 957178 | 8 | |
| 22 | Clamp | 941492 | 4 | |
| 23 | Cross recessed screw | 950047 | 4 | |
| 24 | Hexagon nut | 955825 | 4 | Late type |
| 25 | Spring washer | 941906 | 5 | |
| 26 | Clamp | 190601 | 1 | |
| 27 | Clamp | 942542 | 1 | |
| 28 | Fuel pipe | 842656 | 1 | |
| 29 | Hollow screw | 25167 | 1 | |
| 30 | Gasket | 957178 | 2 | |
| 31 | Anchorage | 821625 | 1 | |
| 32 | Clamp | 952625 | 1 | |
| 33 | Cross recessed screw | 950047 | 1 | |
| 34 | Hexagon nut | 955825 | 1 | Late type |
| 35 | Spring washer | 941906 | 1 |
| Item | Part Name | Part No. |
| 3 | Anchorage 821076 | 821076 |
| Details | |
| Engine model | D100A, D100B D100B D100BHC D100BRC D100BRC, TD100ARC D120A D120A, TD120A TAD120AHC TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD120A TD120AHC TD120ARC TD120BRC TD121CRC |
| Application | Classed Fuel System, Spec.867108, 867153: A Classed Fuel System, Spec.867108, 867153: B Classed Fuel System: A Classed Fuel System: B Fuel Filter and Installation Components, Spec.867293 FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D Oil Cooler Front End Mounted and Installation Components OIL COOLER FRONT END MOUNTED AND RELATED PARTS Oil Cooler, Front End Mounted and Related Parts Oil Cooler, Twin, Front End Mounted Spec 9803,9946,867024 |
