Anchorage 843818

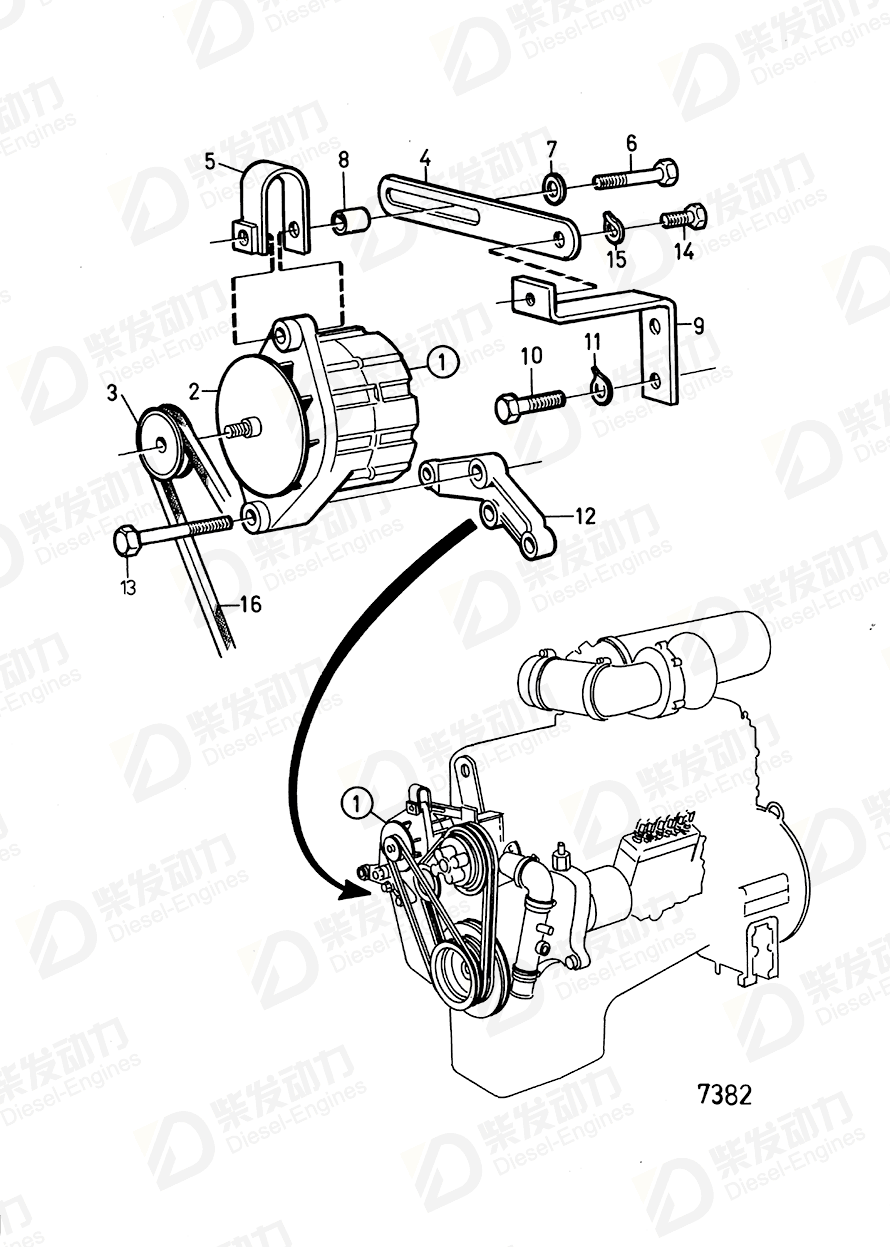

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1578140 | 1 | 28V 45A |
| 2 | Fan | 241363 | 1 | |
| 3 | Pulley | 823006 | 1 | |
| 4 | Tensioner | 843819 | 1 | |
| 5 | Tensioning loop | 466735 | 1 | |
| 6 | Hexagon screw | 955300 | 1 | (955299) |
| 7 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 8 | Spacer sleeve | 807183 | 1 | Used on crankshaft 829999. |
| 9 | Anchorage | 843818 | 1 | |
| 10 | Hexagon screw | 955562 | 2 | L=38mm |
| 11 | Spring washer | 940280 | 2 | |
| 12 | Bracket | 843745 | 1 | |
| 13 | Hexagon screw | 955699 | 1 | |
| 14 | Hexagon screw | 955523 | 1 | |
| 15 | Spring washer | 941907 | 1 | |
| 16 | V-belt | 958319 | 1 |
| Item | Part Name | Part No. |
| 9 | Anchorage 843818 | 843818 |
| Details | |
| Engine model | D70B, TD70B TD70B TD70G |
| Application | Alternator and Installation Alternator and Installation Components, MOXXXXX/33072- |
