Anchorage 845190

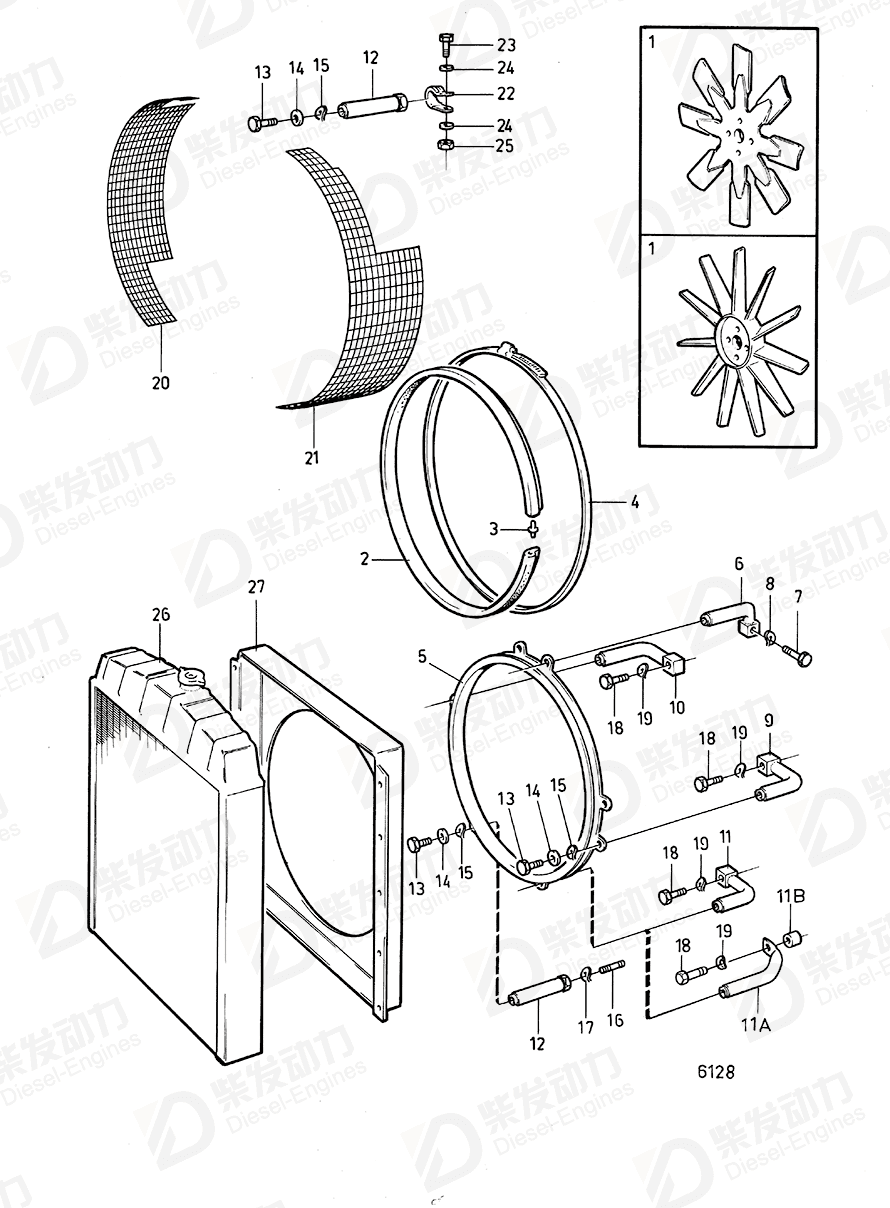

| No. | Part Name | Part Number | Qty | Description |
| 2 | Sealing strip | 837300 | 1 | |
| 3 | Connector | 475450 | 1 | |
| 4 | Hose clamp | 947467 | 1 | |
| 5 | Fan ring | 843694 | 1 | |
| 6 | Anchorage | 842735 | 1 | Classified engine |
| 6 | Anchorage | 845190 | 1 | (843402) |
| 7 | Hexagon screw | 955538 | 1 | |
| 7 | Hexagon screw | 955540 | 1 | MOXXXXX/105195- |
| 8 | Spring washer | 942336 | 1 | |
| 9 | Anchorage | 843404 | 1 | |
| 10 | Anchorage | 843404 | 1 | |
| 10 | Anchorage | 845531 | 1 | (843405) |
| 11 | Anchorage | 846464 | 1 | (843702) early type |
| 12 | Anchorage | 843406 | 2 | Alt |
| 13 | Hexagon screw | 940113 | 6 | |
| 14 | Washer | 960141 | 6 | |
| 15 | Spring washer | 941907 | 6 | |
| 16 | Stud | 953241 | 1 | |
| 17 | Spring washer | 941907 | 1 | |
| 18 | Hexagon screw | 955322 | 1 | |
| 18 | Hexagon screw | 955528 | 2 | |
| 18 | Hexagon screw | 955530 | 1 | |
| 18 | Hexagon screw | 955531 | 2 | Late type |
| 19 | Spring washer | 941907 | 3 | |
| 20 | Safety net | 847500 | 1 | (843010) alt |
| 21 | Safety net | 847499 | 1 | (843011) alt |
| 22 | Clamp | 945081 | 12 | |
| 23 | Cross recessed screw | 956094 | 12 | |
| 24 | Washer | 192404 | 24 | |
| 25 | Hexagon nut | 955781 | 12 | |
| 11A | Anchorage | 846464 | 1 | (843702) early type |
| 11B | Spacer sleeve | 823497 | 1 | Late type |
| Item | Part Name | Part No. |
| 6 | Anchorage 845190 | 845190 |
| Details | |
| Engine model | D70B TD70B TD70G |
| Application | Fan, Fan-and Belt Protection with Installation Components Fan-and Belt Protection with Installation Comp, MOXXXXX/40848- Fan-and Belt Protection with Installation COMP.MOXXXXX/33072-: A Fan-and Belt Protection with Installation COMP.MOXXXXX/33072-: B |
| Specification | |
| Descriptions | (843402) |
