Anchorage 863431

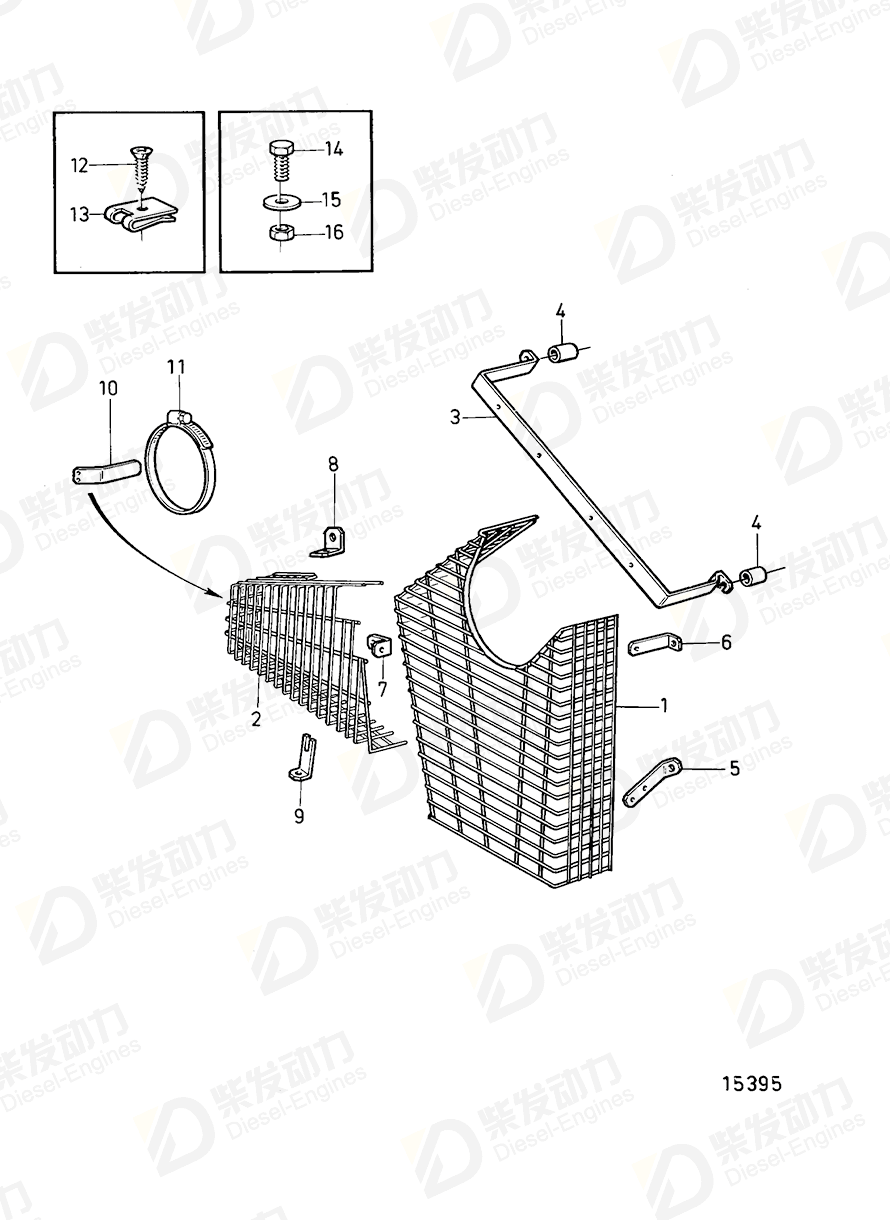

| No. | Part Name | Part Number | Qty | Description |
| 1 | Belt protector | 863398 | 1 | |
| 2 | Belt protector | 863427 | 1 | |
| 3 | Anchorage | 863429 | 1 | |
| 4 | Spacer sleeve | 820916 | 2 | MO 21083/XXXXX- |
| 5 | Anchorage | 863424 | 1 | |
| 6 | Anchorage | 863428 | 1 | |
| 7 | Anchorage | 863425 | 1 | |
| 8 | Anchorage | 863431 | 1 | |
| 9 | Anchorage | 863426 | 1 | |
| 10 | Anchorage | 863358 | 1 | |
| 11 | Hose clamp | 943484 | 1 | (951801) |
| 12 | Cross recessed screw | 955156 | 1 | |
| 13 | Attaching plate | 863446 | 1 | |
| 14 | Hexagon screw | 940156 | 1 | |
| 14 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 14 | Hexagon screw | 955541 | 1 | |
| 14 | Flange screw | 965200 | 10 | |
| 15 | Washer | 192404 | 10 | |
| 16 | Lock nut | 963104 | 10 |
| Item | Part Name | Part No. |
| 8 | Anchorage 863431 | 863431 |
| Details | |
| Engine model | TAD1030G TD1010G, TWD1010G TID100KGP-87 |
| Application | Belt Guard Belt Guard, SN-2100277340 |
